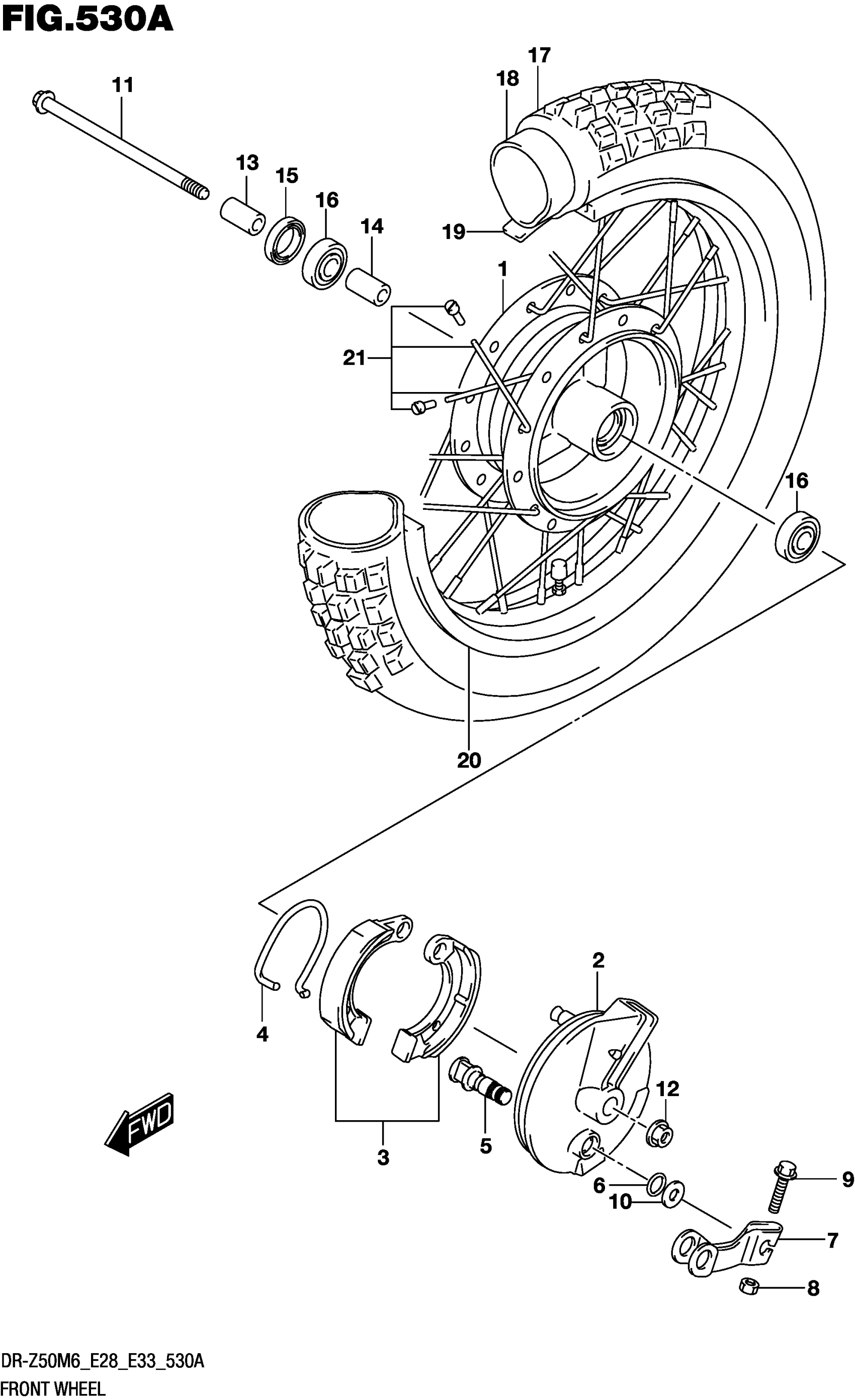

Suzuki DR-Z50M6 (2026) FRONT WHEEL Diagram

#

Description
Price

1

HUB,FRONT WHEEL

54110-14H00

Unavailable

2

PANEL,FRONT BRAKE ANCHOR

54210-14H00

Unavailable

3

SHOE SET,BRAKE

54400-14870

$32.08

4

SPRING,BRAKE SHOE

54424-14H00

$12.72

5

CAM,BRAKE

54440-14H00

$31.28

6

O RING (D:2.4,ID:9.6) This part replaces 09280-10006.

09280-10013

$3.70

7

LEVER,BRAKE CAM

54451-14H00

$25.03

8

NUT

08310-0005A

$1.84

9

BOLT

01550-0525A

$2.06

10

WASHER (10.5X18X1)

09160-10121

$2.03

11

AXLE,FRONT

54711-14H00

$43.65

12

NUT

08319-3112A

$3.76

13

SPACER,FRONT AXLE,R

54741-14H00

Unavailable

14

SPACER,FRONT HUB BEARING

54731-14H00

Unavailable

15

SEAL,OIL,32X20X5 (32X20X5)

09282-20008

$11.30

16

BEARING

08123-6201B

$22.98

17

TIRE (2.50-10 33J)

55100-14H00

$103.03

18

TUBE ASSY,WHEEL INNER

55200-14H01

$35.93

19

PROTECTOR,WHEEL INNER TUBE

55261-14H10

$4.22

20

RIM,WHEEL (10X1.40)

55311-14H00

$297.20

21

SPOKE SET,WHEEL

55320-14H00

$111.87
