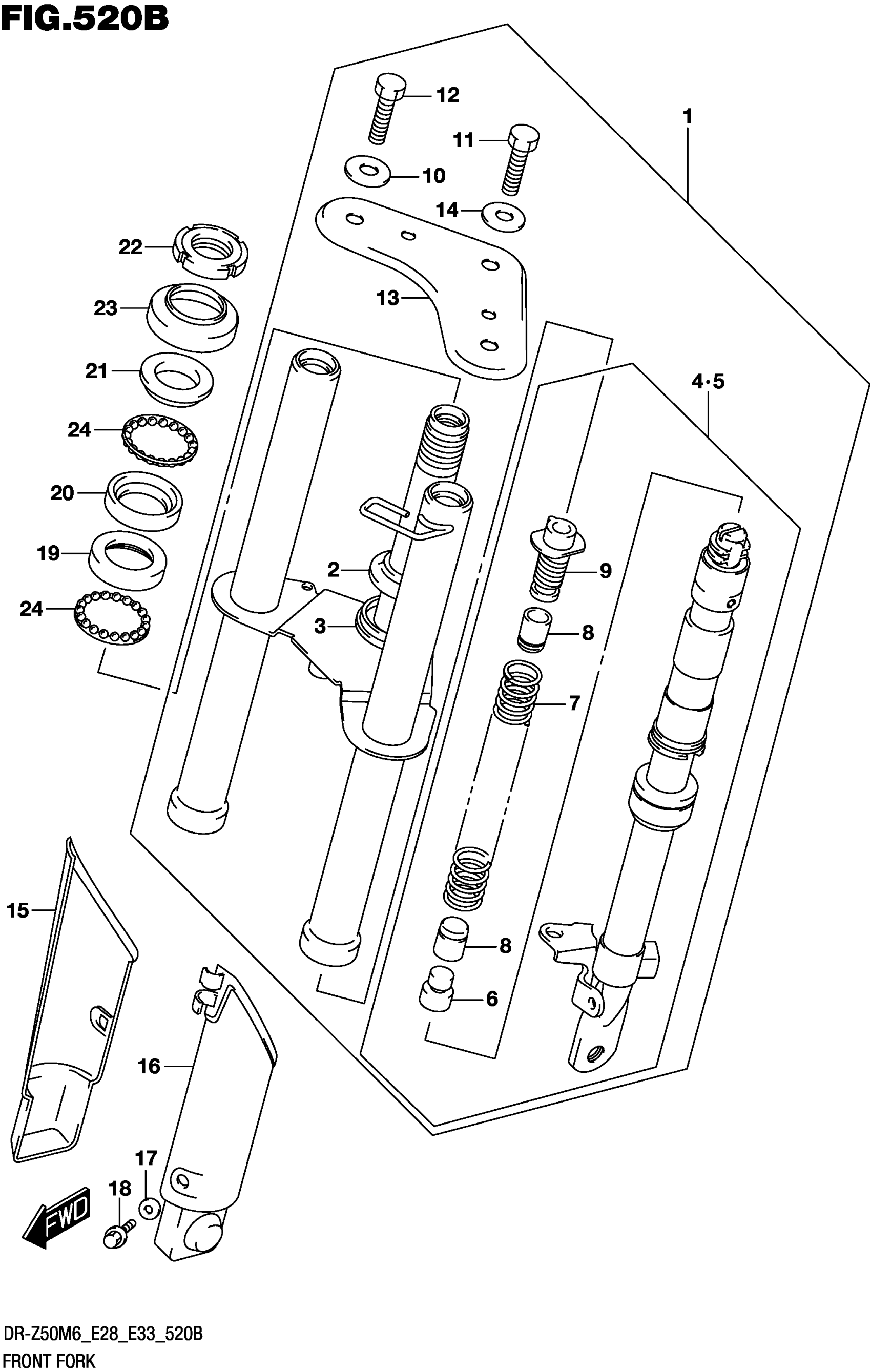

Suzuki DR-Z50M6 (2026) FRONT FORK (E33) Diagram

#

Description
Price

1

FORK SET,FRONT

51100-14831

$965.27

2

.RACE,STEERING OUTER LOWER

51622-14H00

Unavailable

3

.SEAL,STEERING LWR

51644-14H01

$7.55

4

.TUBE ASSY,FRONT FORK LOWER,R

51110-14H00

$424.60

5

.TUBE ASSY,FRONT FORK LOWER,L

51120-14H00

$385.50

6

..STOPPER

51116-14H00

$10.23

7

..SPRING

51171-14H00

Unavailable

8

..STOPPER RUBBER

51292-14H00

$10.65

9

..SPRING,JOINT B

51422-14H00

Unavailable

10

WASHER (10X30X2.5)

09160-10144

$5.28

11

.BOLT

01550-1035A

$3.55

12

.BOLT

01550-1035A

$3.55

13

.BRACKET,UPPER

51310-14H00

$64.97

14

WASHER (10.5X25X3.2)

09160-10128-XC0

$2.62

15

PROTECTOR,FR FORK,R (BLACK)

51501-14H00-019

$19.15

16

PROTECTOR,FR FORK,L (BLACK)

51511-14H00-019

$19.15

17

WASHER This part replaces 09169-06032.

09169-06071

$2.50

18

BOLT

01547-0612A

$2.03

19

RACE,STEERING INNER LOWER

51611-14H00

$12.98

20

RACE,STEERING INNER UPPER

51611-20002

$11.95

21

RACE,STEERING OUTER UPPER

51621-28000

$11.95

22

NUT,STEERING STEM (25X44X10)

51631-28000

$17.37

23

DUST SEAL,STEERING UPPER

51643-25001

$4.43

24

BEARING,27X40.5X5 (27X40.5X5)

09269-27001

$15.32
