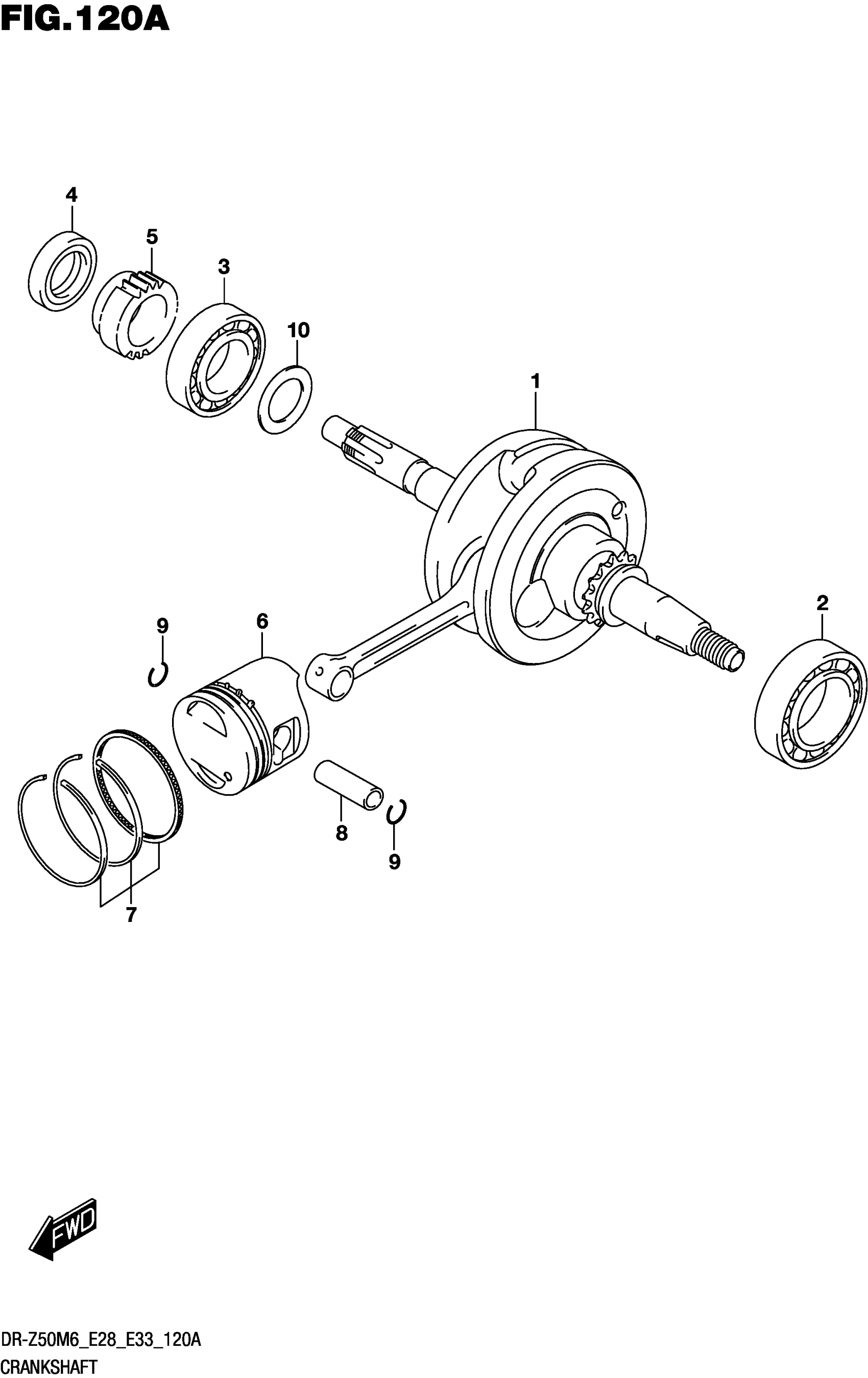

Suzuki DR-Z50M6 (2026) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY

12200-36G42

$343.62

2

BEARING,35X62X14 (35X62X14)

09262-35021-0A0

$42.02

3

BEARING (20X52X15)

09262-20073

$23.28

4

SEAL,OIL,20X32X7 (20X32X7)

09282-20005

$12.13

5

GEAR,OIL PUMP DRIVE (NT:17)

16321-09411

Unavailable

6

PISTON

12111-36G00-0F0

$71.95

7

RING SET,PISTON

12140-32G00

$69.15

8

PIN,PISTON

12151-09400

Unavailable

9

SNAP RING

09381-12001

$1.49

10-1

SHIM,20X30X0.6 (T:0.60)

09181-20187

Unavailable

10-2

SHIM,20X30X0.65 (T:0.65)

09181-20009

Unavailable

10-3

SHIM,20X30X0.7 (T:0.70)

09181-20188

Unavailable

10-4

SHIM,20X30X0.75 (T:0.75)

09181-20189

Unavailable

10-5

SHIM,20X30X0.8 (T:0.80)

09181-20190

Unavailable

10-6

SHIM,20X30X0.85 (T:0.85)

09181-20191

Unavailable

10-7

SHIM,20X30X0.9 (T:0.90)

09181-20192

Unavailable

10-8

SHIM,20X30X1.95 (T:0.95)

09181-20193

Unavailable

10-9

SHIM (20X30X1)

09181-20195

$2.60

10-10

SHIM,20X30X1.05 (T:1.05)

09181-20197

Unavailable

10-11

SHIM,20X30X1.1 (T:1.10)

09181-20200

Unavailable

10-12

SHIM,20X30X1.15 (T:1.15)

09181-20202

Unavailable

10-13

SHIM,20X30X1.2 (T:1.20)

09181-20204

Unavailable

10-14

SHIM,20X30X1.25 (T:1.25)

09181-20207

Unavailable

10-15

SHIM,20X30X1.3 (T:1.30)

09181-20209

Unavailable
