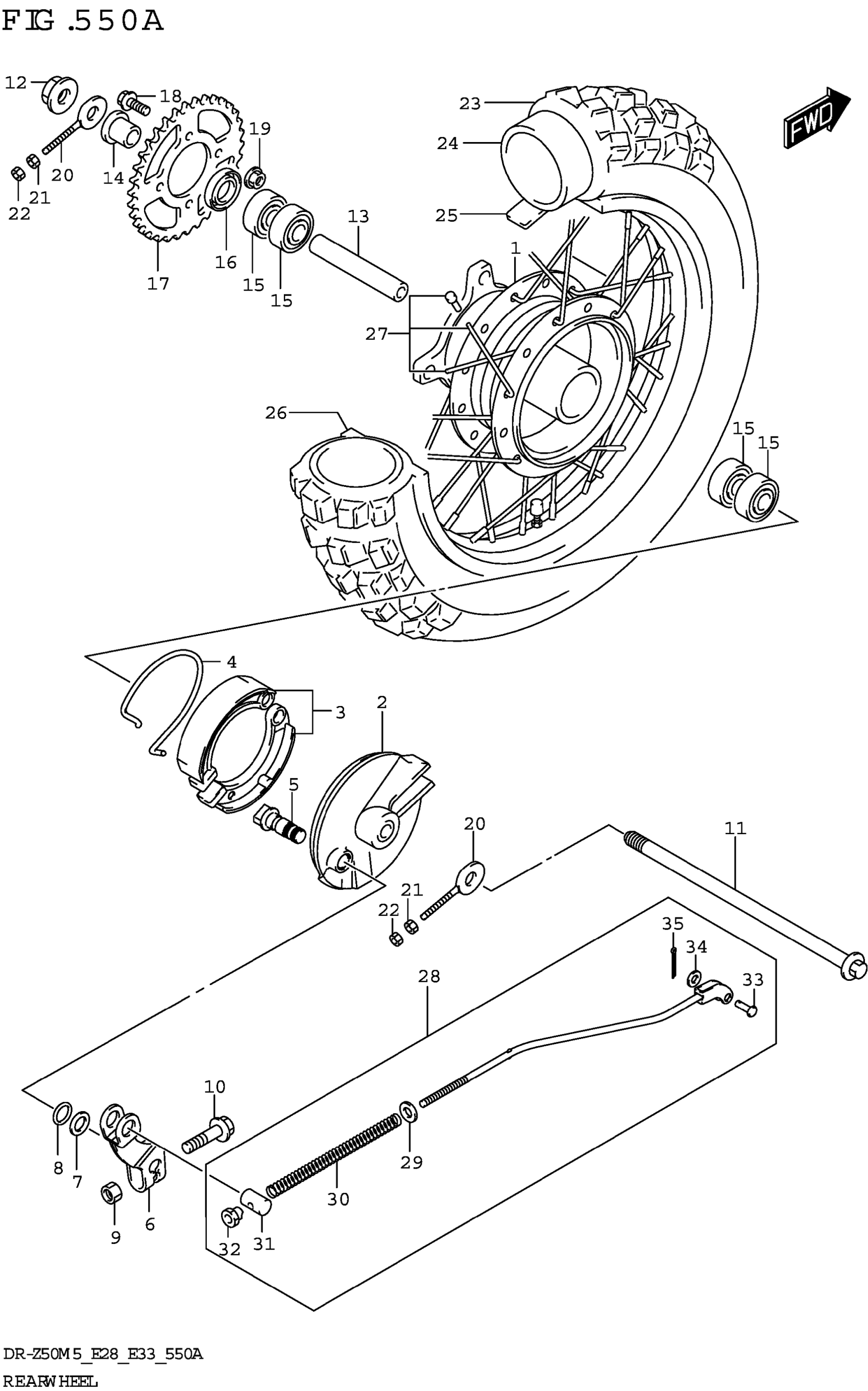

Suzuki DR-Z50M5 (2025) REAR WHEEL Diagram

#

Description
Price

1

HUB,REAR WHEEL

64110-14H00

Unavailable

2

PANEL,FRONT BRAKE ANCHOR

54210-14H00

Unavailable

3

SHOE SET,BRAKE

54400-14870

$32.08

4

SPRING,BRAKE SHOE

54424-14H00

$12.72

5

CAM,BRAKE

54440-14H00

$31.28

6

LEVER,BRAKE CAM

54451-14H00

$25.03

7

WASHER (10.5X18X1)

09160-10121

$2.03

8

O RING (D:2.4,ID:9.6) This part replaces 09280-10006.

09280-10013

$3.70

9

NUT

08310-0005A

$1.84

10

BOLT

01550-0525A

$2.06

11

AXLE,REAR

64711-14H00

$55.63

12

NUT

08319-3112A

$3.76

13

SPACER (12.5X19X105.5) | 105.5)

64731-14H00

$21.83

14

SPACER,REAR AXLE,L

64751-14H00

$23.03

15

BEARING

08123-6201B

$22.98

16

SEAL,OIL,32X20X5 (32X20X5)

09282-20008

$11.30

17

SPROCKET,RR 34T-428

64511-42H00

$55.25

18

BOLT,REAR SPROCKET (8X28)

09103-08565

$3.58

19

NUT

08319-3108A

$2.32

20

ADJUSTER,CHAIN

61411-14H00

$14.40

21

NUT

09140-06030

$2.97

22

NUT

08310-0006A

$1.84

23

TIRE (2.50-10 33J)

55100-14H00

$103.03

24

TUBE ASSY,WHEEL INNER

55200-14H01

$35.93

25

PROTECTOR,WHEEL INNER TUBE

55261-14H10

$4.22

26

RIM,WHEEL (10X1.40)

55311-14H00

$297.20

27

SPOKE SET,WHEEL

55320-14H00

$111.87

28

ROD ASSY,REAR BRAKE

43300-14H00

$33.43

29

WASHER

08322-0106A

$1.84

30

.SPRING

09440-09004

$2.20

31

.PIN (11X18)

09209-11002

$2.19

32

.NUT

09150-06010

$3.10

33

.PIN (10X16)

09200-06013

$2.00

34

WASHER

08322-0106A

$1.84

35

PIN

04111-2020A

$1.49
