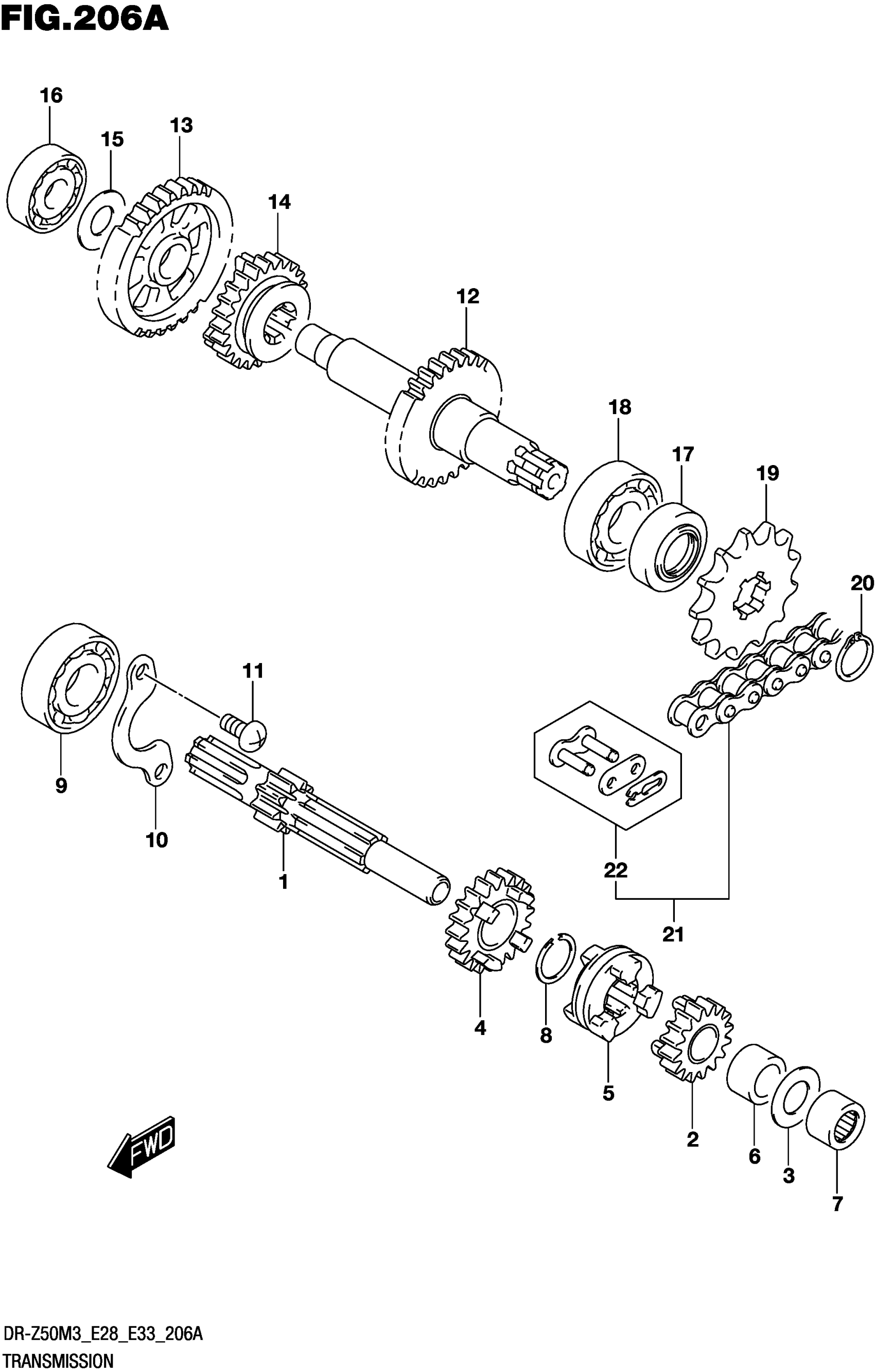

Suzuki DR-Z50M3 (2023) TRANSMISSION Diagram

#

Description
Price

1

SHAFT,COUNTER,NT:10 (NT:10)

24121-02A02

Unavailable

2

GEAR,2ND DRIVE,NT:16 (NT:16)

24220-02A01

Unavailable

3

WASHER (13X24X1.0)

09160-13006

Unavailable

4

GEAR,3RD DRIVE,NT:20 (NT:20)

24231-35404

Unavailable

5

WHEEL,SLIDING DOG

24421-14H00

Unavailable

6

SPACER,13X19X12.5 (13X19X12.5

09180-13008

Unavailable

7

BEARING,13X19X12 (13X19X12)

09263-13002

$15.67

8

CIRCLIP

09380-17007

Unavailable

9

BEARING

08110-62030

$19.18

10

RETAINER,BEARING

24741-09401

Unavailable

11

SCREW (6X12)

09125-06122

$2.44

12

SHAFT,DRIVE,NT:29 (NT:29)

24130-02A00

Unavailable

13

GEAR,1ST DRIVEN,NT:34 (NT:34)

24310-30A01

Unavailable

14

GEAR,3RD DRIVEN,NT:24 (NT:24)

24331-02A01

Unavailable

15

WASHER

08211-12241

$2.06

16

BEARING

08113-6201B

$10.15

17

SEAL,OIL,17X30X7 (17X30X7)

09283-17025

$8.15

18

BEARING

08110-62030

$19.18

19

SPROCKET, ENGINE

27511-46700

$15.26

20

CIRCLIP

08331-31169

$1.78

21

CHAIN ASSY, DRIVE (DID428,RED

27600-20911-078

$38.20

22

.JOINT SET

27620-20911

$5.30
