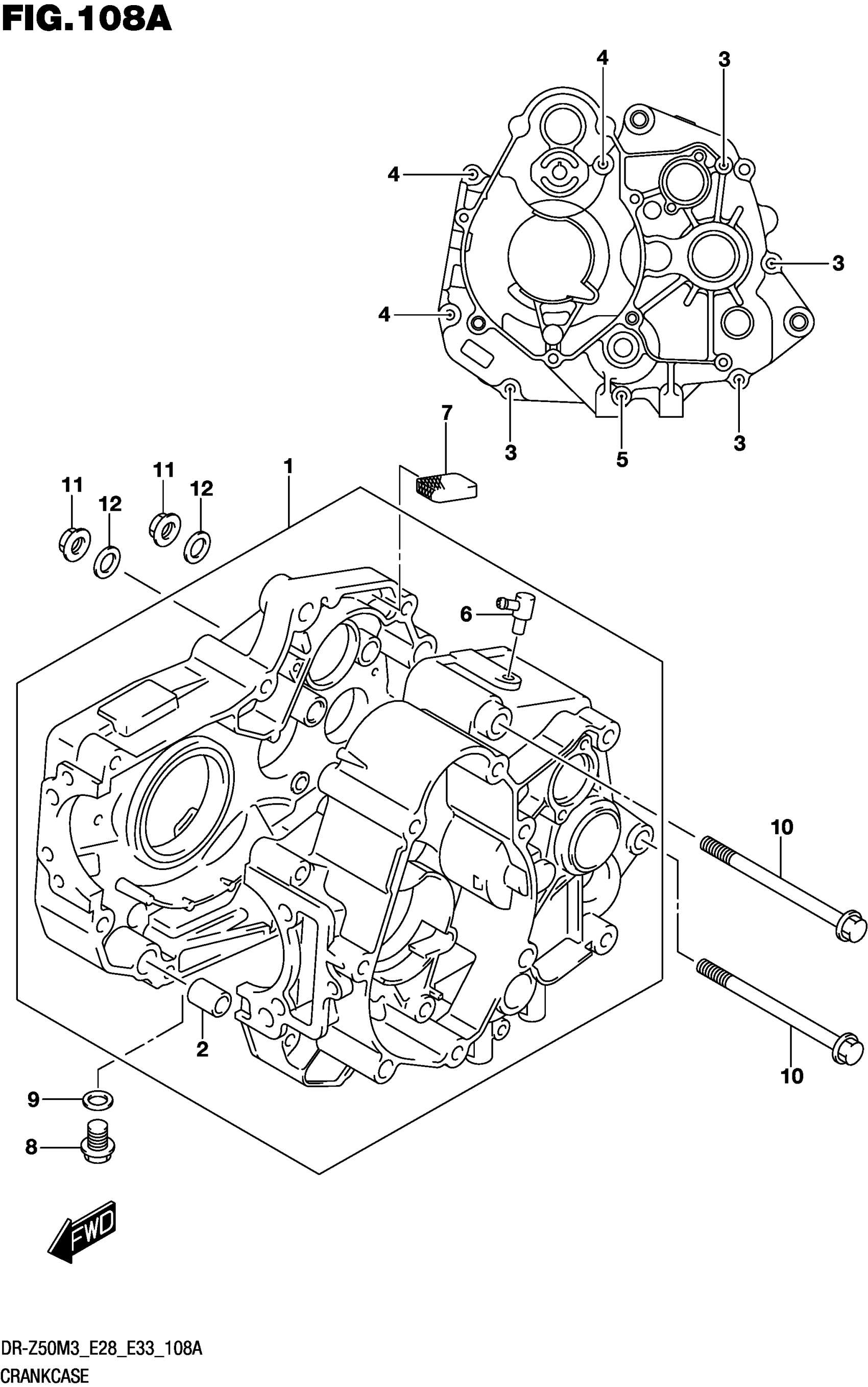

Suzuki DR-Z50M3 (2023) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11300-14810

Unavailable

2

PIN (10.4X13X18)

04211-13189

$2.19

3

BOLT

01547-0630A

$2.32

4

BOLT

01547-0640A

$2.32

5

BOLT

01547-0675A

$3.28

6

.UNION,BREATHER HOSE

16910-09401

$18.20

7

SEPARATOR,OIL BRTHR

11186-30D00

Unavailable

8

PLUG (10X12)

09247-10008

$1.97

9

GASKET (10X14X3.6)

09168-10002

$2.13

10

BOLT,8X100 (8X100)

09103-08070

$5.57

11

NUT

08319-3108A

$2.32

12

WASHER

08322-0108A

$1.92
