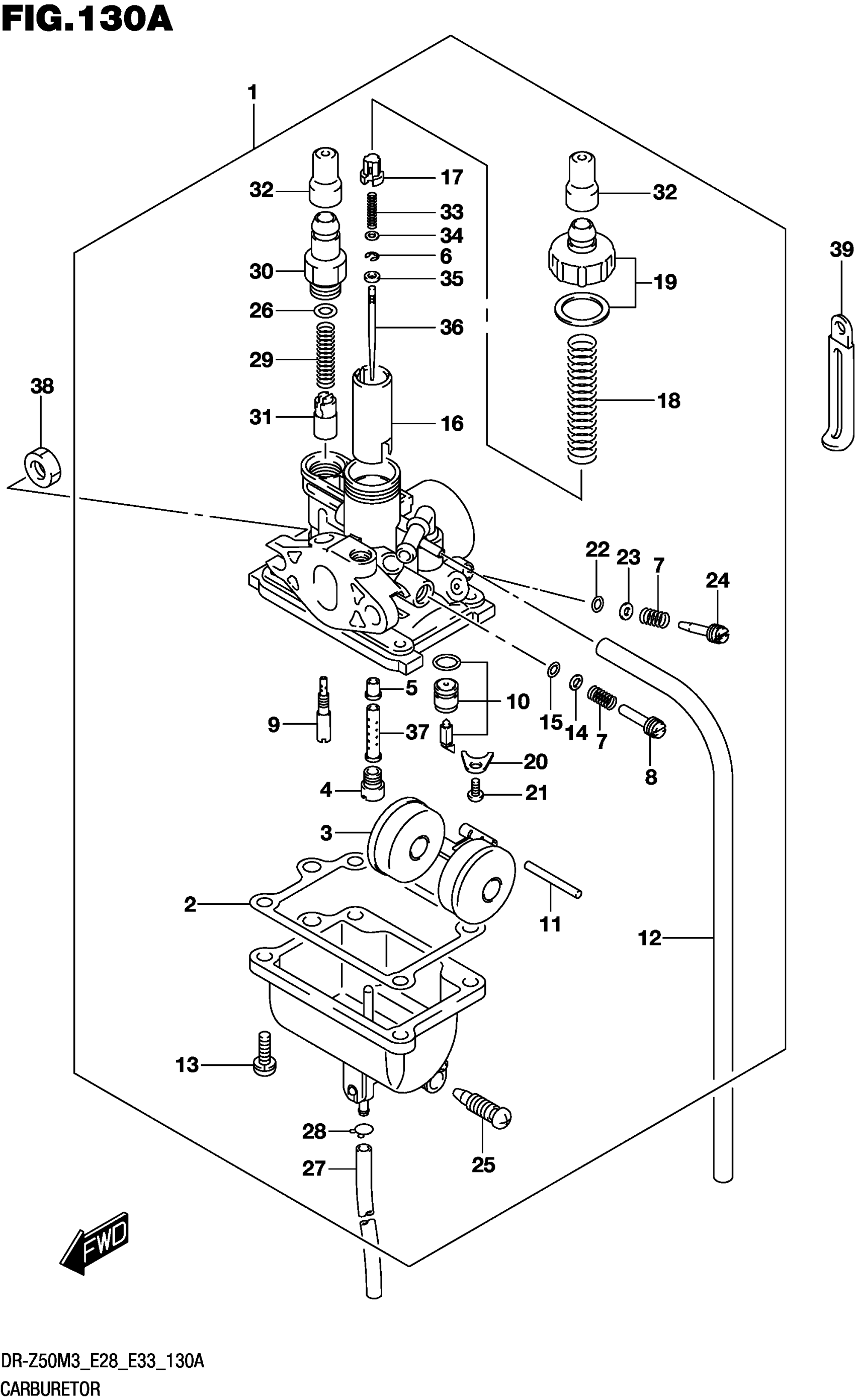

Suzuki DR-Z50M3 (2023) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY

13200-14HB0

$213.48

2

.GASKET

13251-02410

$5.36

3

.FLOAT

13250-02500

$26.91

4

.JET,MAIN (#55)

09491-55006

$18.18

5

.JET,NEEDLE (E-5M)

13341-14H00

$44.27

6

.E RING

13533-98410

$5.31

7

.SPRING

13268-35010

$4.48

8

.SCREW,THROTTLE STOP

13483-16A01

$16.25

9

.JET,PILOT (#17.5)

09492-17012

$24.42

10

.VALVE ASSY,NEEDLE

13370-36G00

$57.83

11

.PIN,FLOAT

13254-20010

$4.28

12

.HOSE

09352-50006-600

$7.48

13

.SCREW

13601-04148

$2.81

14

.WASHER

13291-35010

$3.56

15

.O-RING

13295-33010

$4.48

16

.VALVE,PISTON

13551-36G00

$48.38

17

.HOLDER

13418-12F40

$7.20

18

.SPRING

13268-14H00

$5.60

19

.CAP

13261-36G00

$37.53

20

.PLATE,NEEDLE VALVE FITTING

13373-46710

$6.17

21

.SCREW

02112-0306B

$1.59

22

O-RING

13295-29901

$4.34

23

.WASHER (14X17)

13291-29900

$1.98

24

.ADJUSTER (2,0)

13269-43G00

$13.05

25

.SCREW,DRAIN

13247-09G10

$6.00

26

.O RING

13278-02330

$2.82

27

.HOSE (3X7X600)

09355-30001-600

$8.56

28

.CLIP

13529-98011

$3.08

29

.SPRING

13417-37200

$3.56

30

.HOLDER,GUIDE

13418-14H00

Unavailable

31

.PLUNGER,STARTER

13411-22G00

$19.15

32

.CAP

13416-26F00

$5.30

33

.SPRING

13481-23F00

$5.67

34

.WASHER

13382-23F00

$4.45

35

.RING

13387-23F00

$6.05

36

.NEEDLE,JET

13383-14H00

$19.15

37

.PIPE

13385-14HA0

$18.45

38

NUT

09140-06027

$2.72

39

CLAMP (L:80)

09404-06030

Unavailable
