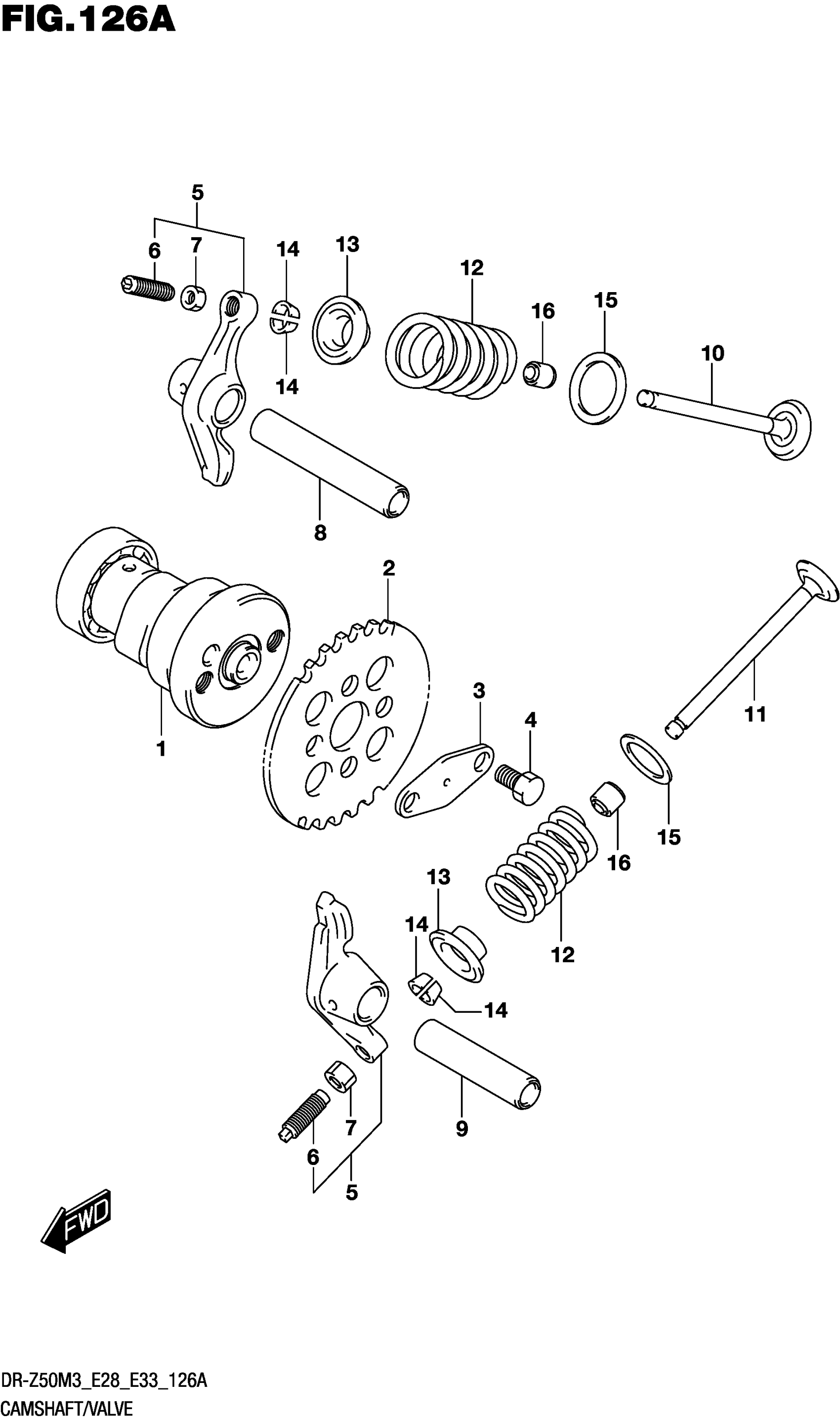

Suzuki DR-Z50M3 (2023) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT ASSY

12710-02A10

Unavailable

2

SPROCKET,CAM SHAFT (NT:28)

12741-09405

Unavailable

3

WASHER,SPROCKET

12714-09401

Unavailable

4

BOLT (6X10.5)

09111-06032

$2.21

5

ARM,VALVE ROCKER

12840-30A11

Unavailable

6

.SCREW,TAPPET ADJUSTING

12842-49201

$6.63

7

.NUT,TAPPET ADJUSTING

12843-27A00

$2.94

8

SHAFT,VALVE ROCKER ARM INTAKE

12861-09401

Unavailable

9

SHAFT,VALVE ROCKER ARM EXHAUS

12871-09401

Unavailable

10

VALVE,INTAKE

12911-09402

Unavailable

11

VALVE,EXHAUST

12912-09401

Unavailable

12

SPRING SET,VALVE

12921-36G00

$6.74

13

RETAINER,VALVE SPRING

12931-09420

Unavailable

14

COTTER,VALVE

12932-27A00

$2.26

15

SEAT,VALVE SPRING OUTER

12934-09400

Unavailable

16

SEAL,OIL (5X10.5X8.4)

09289-05008

$6.30
