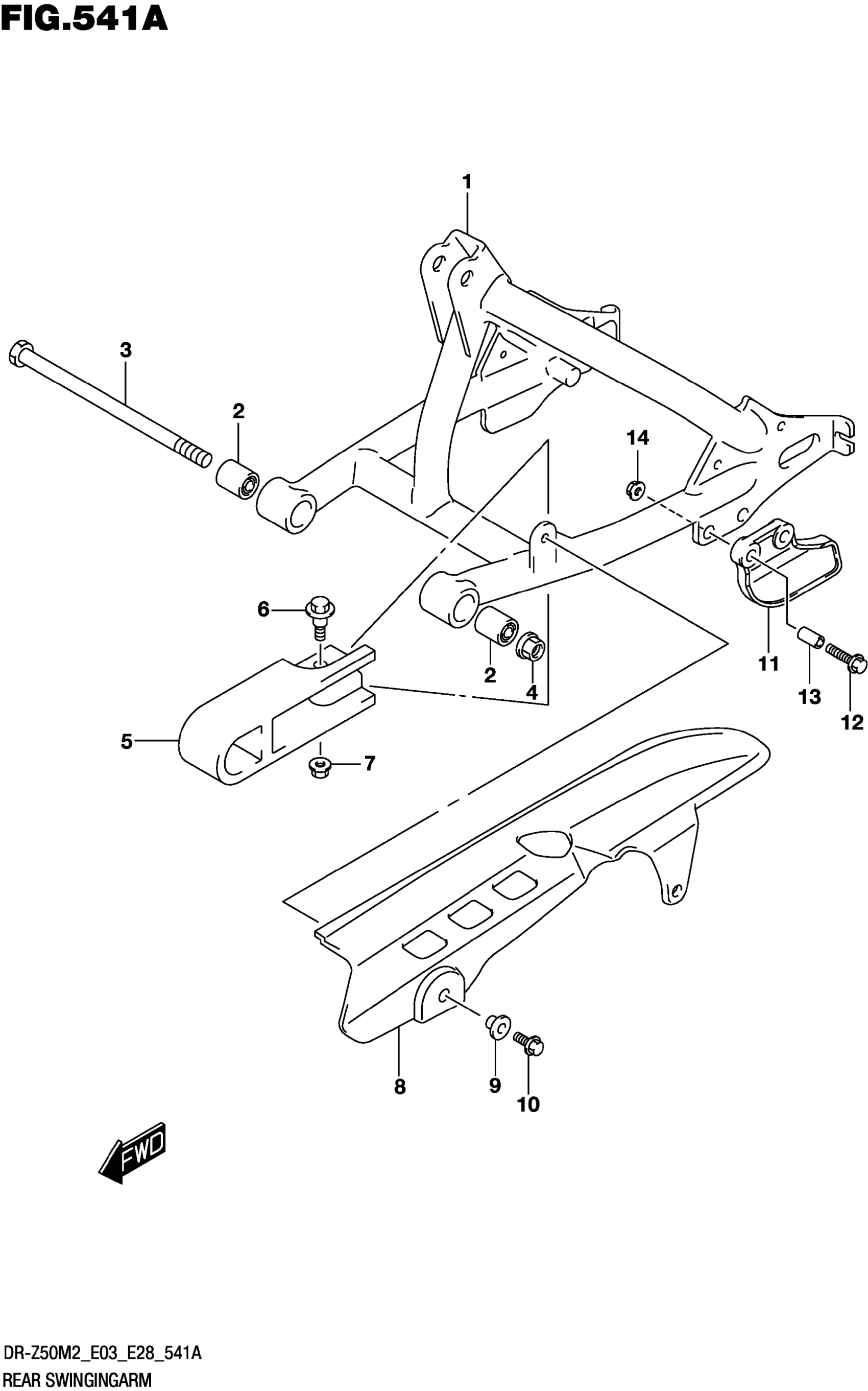

Suzuki DR-Z50M2 (2022) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM ASSY,REAR (SILVER

61000-14H10-13L

$541.87

2

.BUSH (10X23X30)

09319-10043

$16.87

3

SHAFT,RR SWGARM PIVOT

61211-14H00

Unavailable

4

NUT

08319-3110A

$2.73

5

BUFFER,CHAIN

61273-14H01

$24.08

6

BOLT (6X19)

09111-06092

$2.62

7

NUT (6X12)

08316-1006A

$2.19

8

CASE,CHAIN

61311-14H00

$68.03

9

WASHER

09169-06040

$1.92

10

BOLT

01547-0612A

$2.03

11

GUIDE,CHAIN

61341-14H00

Unavailable

12

BOLT (6X25)

09116-06177

$2.50

13

SPACER,6.1X8X15 (6.1X8X15)

09180-06304

Unavailable

14

NUT (6X12)

08316-1006A

$2.19
