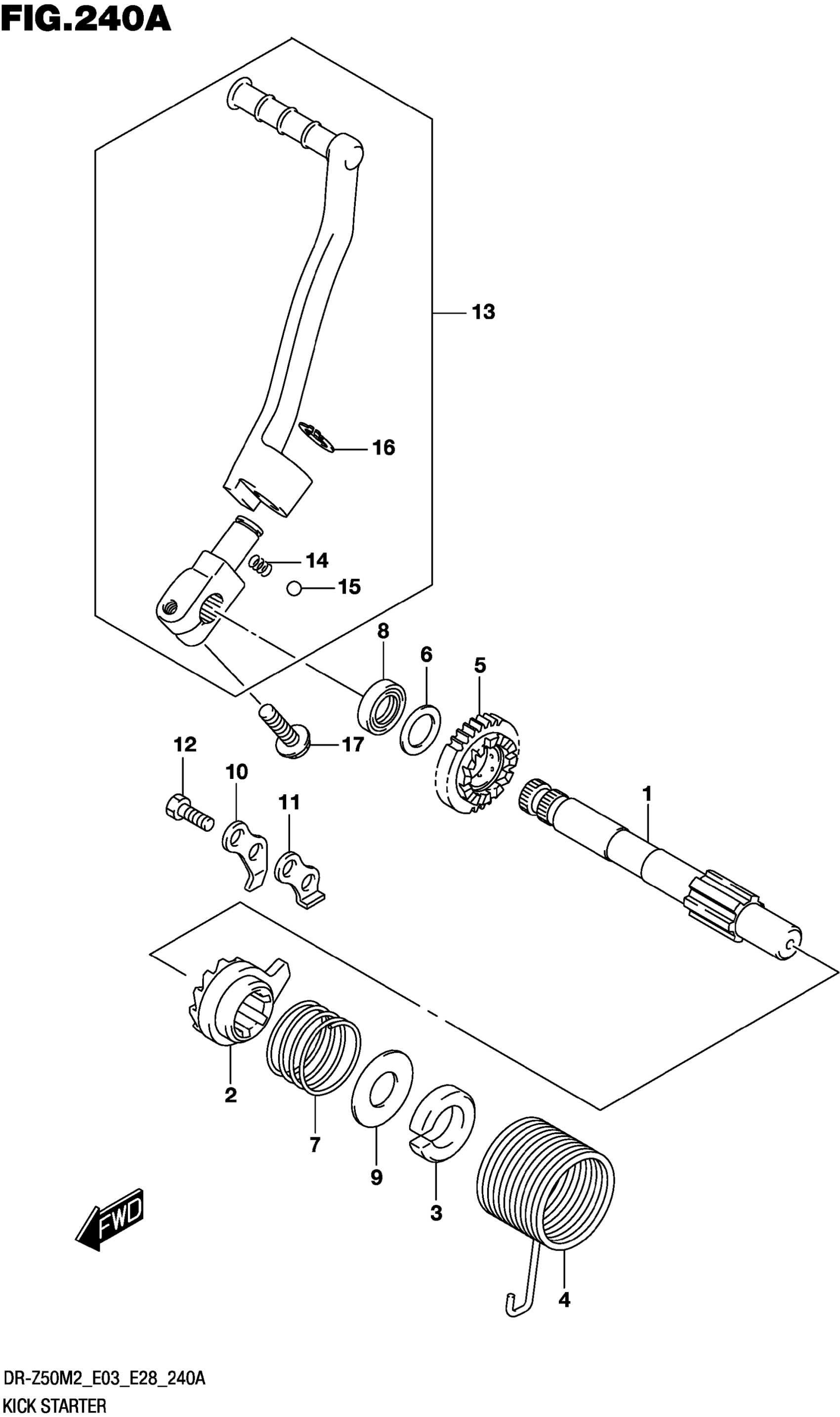

Suzuki DR-Z50M2 (2022) KICK STARTER Diagram

#

Description
Price

1

SHAFT,KICK STARTER

26211-09421

Unavailable

2

STARTER,KICK

26231-09410

Unavailable

3

GUIDE,KICK STARTER SPR

26221-09400

Unavailable

4

SPRING

09448-38004

Unavailable

5

GEAR,KICK STARTER DRIVE,NT:20

26241-09402

Unavailable

6

SHIM (14X22X1.0)

09181-14167

$2.53

7

SPRING

09440-30007

Unavailable

8

OIL SEAL (14X24X6)

09285-14002

$16.88

9

WASHER

08211-14321

$3.85

10

GUIDE,KICK STARTER

26232-09401

Unavailable

11

STOPPER,KICK STARTER

26233-09400

Unavailable

12

BOLT

01547-0612A

$2.03

13

LEVER ASSY,KICK STARTER

26300-14H00

$111.15

14

SPRING

09440-05003

$1.49

15

BALL

06111-07004

$1.49

16

.CIRCLIP

08331-3113A

$2.23

17

BOLT

01547-0620A

$2.03
