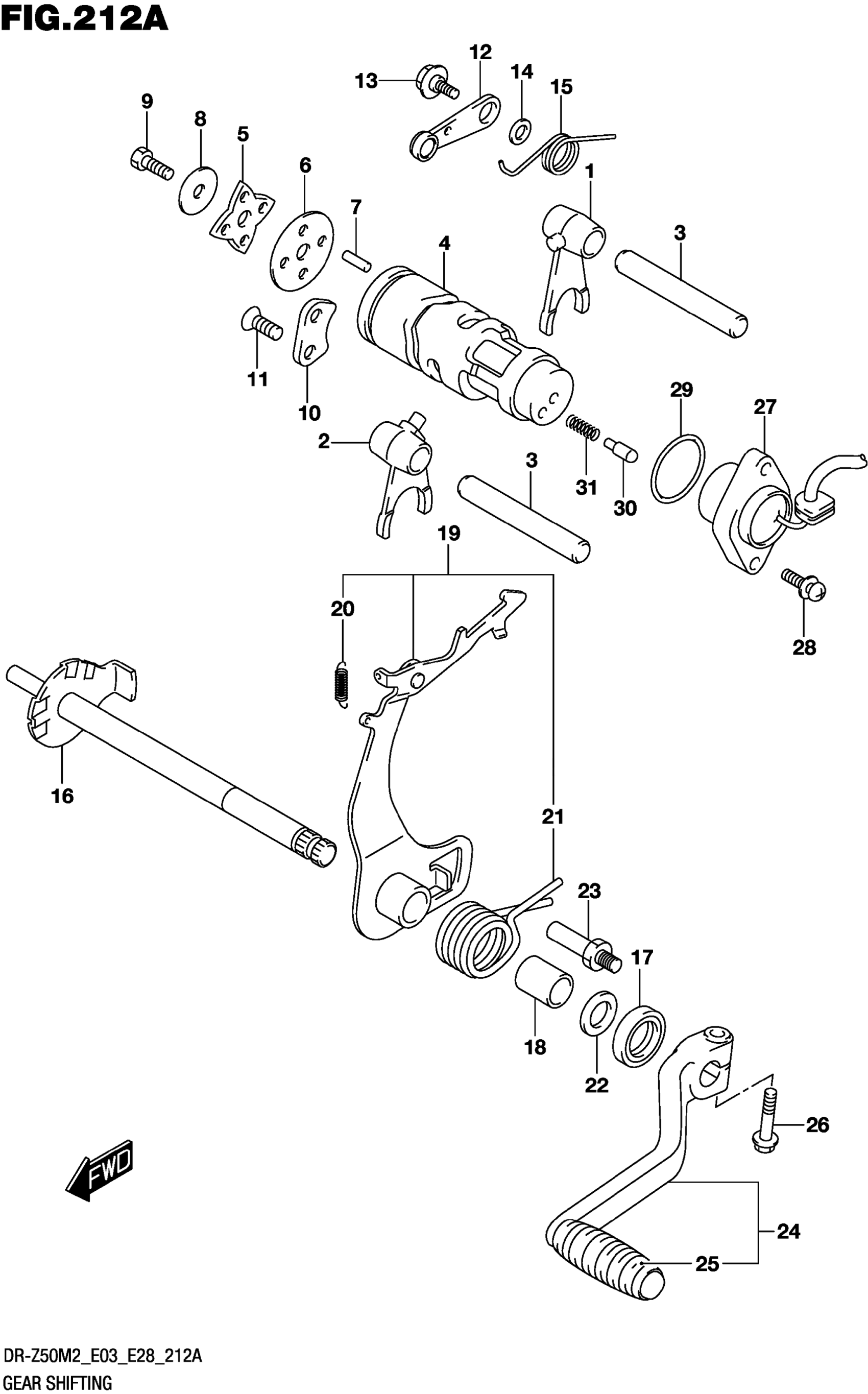

Suzuki DR-Z50M2 (2022) GEAR SHIFTING Diagram

#

Description
Price

1

FORK,GEAR SHIFT,NO.1

25211-09400

Unavailable

2

FORK,GEAR SHIFT,NO.2

25221-02A00

Unavailable

3

SHAFT,GEAR SHIFT FORK

25421-04702

Unavailable

4

CAM,GEAR SHIFT

25311-14H10

$108.25

5

PLATE,CAM STOPPER

25381-35401

Unavailable

6

GUIDE,CAM STOPPER PIN

25382-35401

$1.49

7

ROLLER (4X13.8)

09261-04002

$1.72

8

WASHER

08211-06221

Unavailable

9

BOLT (6X16)

09103-06200

$2.90

10

RETAINER,SHIFT CAM

25341-09400

Unavailable

11

SCREW (6X16)

09126-06014

$2.06

12

STOPPER,SHIFT CAM

25350-09D00

Unavailable

13

BOLT (6X14.3)

09111-06041

$2.61

14

WASHER

08211-06121

$1.54

15

SPRING,SHIFT CAM STOPPER

25355-14H00

Unavailable

16

SHAFT,GEAR SHIFT

25510-09405

$61.15

17

OIL SEAL (12X22X9)

09285-12006

$6.32

18

SPACER (12X16X20)

09180-12036

Unavailable

19

ARM ASSY,GEAR SHIFT

25501-09451

$51.92

20

.SPRING

09443-05030

Unavailable

21

SPRING

09444-26025

$5.33

22

SHIM (12X20X1)

09181-12167

$2.26

23

STOPPER,GEAR SHIFT ARM

25671-35410

Unavailable

24

LEVER ASSY,GEAR SHIFT

25600-14H01

$43.42

25

.RUBBER,GEAR SHIFT PEDAL

25652-16510

$3.74

26

BOLT

01500-0620A

$1.78

27

BASE ASSY,NEUT SW TERM

37720-09420

$42.03

28

SCREW

02112-1516A

Unavailable

29

O-RING (D:2.4,ID:26.2)

09280-26005

$2.30

30

PIN (5X15.5)

09209-05011

$2.20

31

SPRING

09440-04010

$1.54
