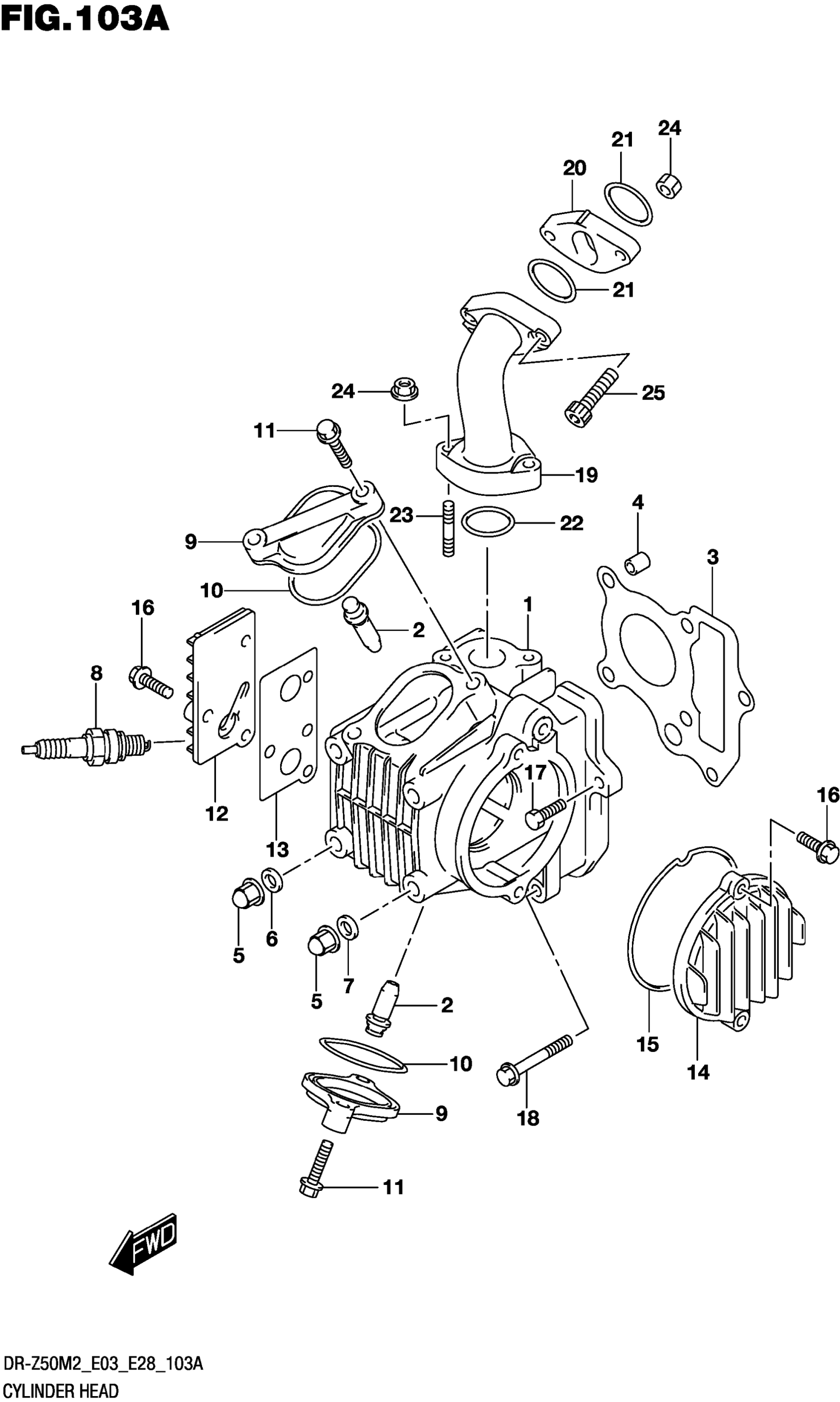

Suzuki DR-Z50M2 (2022) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD,CYLINDER

11110-09410

$309.37

2

GUIDE,VALVE (OS:0.3)

11115-09470

Unavailable

3

.GASKET,CYLINDER HEAD

11141-36G00

$11.82

4

.PIN (8X11)

09206-08001

$1.78

5

NUT (M6)

09159-06100

$2.81

6

GASKET,6.5X13X2.3 (6.5X13X2.3

09168-06017

$1.92

7

WASHER (6.5X14X2.3)

09160-06127

$2.30

8-1

SPARK PLUG,U22FSR-U (U22FSR-U

09482-00314

Unavailable

8-2

SPARK PLUG,CR7HSA (CR7HSA)

09482-00408

$9.83

9

CAP,INSPECTION

11175-09400

Unavailable

10

O-RING (D:2.4,ID:33.6X48.6)

09280-50007

$4.68

11

BOLT

01547-0625A

$2.01

12

COVER,CYLINDER HEAD,R

11134-09400

Unavailable

13

.GASKET,CYL HEAD COVER R

11135-09420

$3.87

14

COVER,CYLINDER HEAD L

11121-09405

Unavailable

15

O RING (D:2.4,ID:73.5)

09280-70008

$8.10

16

BOLT

01547-0620A

$2.03

17

BOLT

01547-0620A

$2.03

18

BOLT

01550-0650A

$2.85

19

PIPE,INTAKE

13111-14HA0

$88.03

20

INSULATOR,CARBURETOR

13129-36G00

$8.89

21

O-RING (D:1.9,ID:21.8)

09280-21010

$2.27

22

O RING

09280-24014

Unavailable

23

BOLT,STUD

01421-0620A

$1.91

24

NUT (6X12)

08316-1006A

$2.19

25

BOLT (6X25)

07130-0625A

$2.62
