2022 Suzuki DR-Z50M2 Crankshaft Diagram

← All diagrams

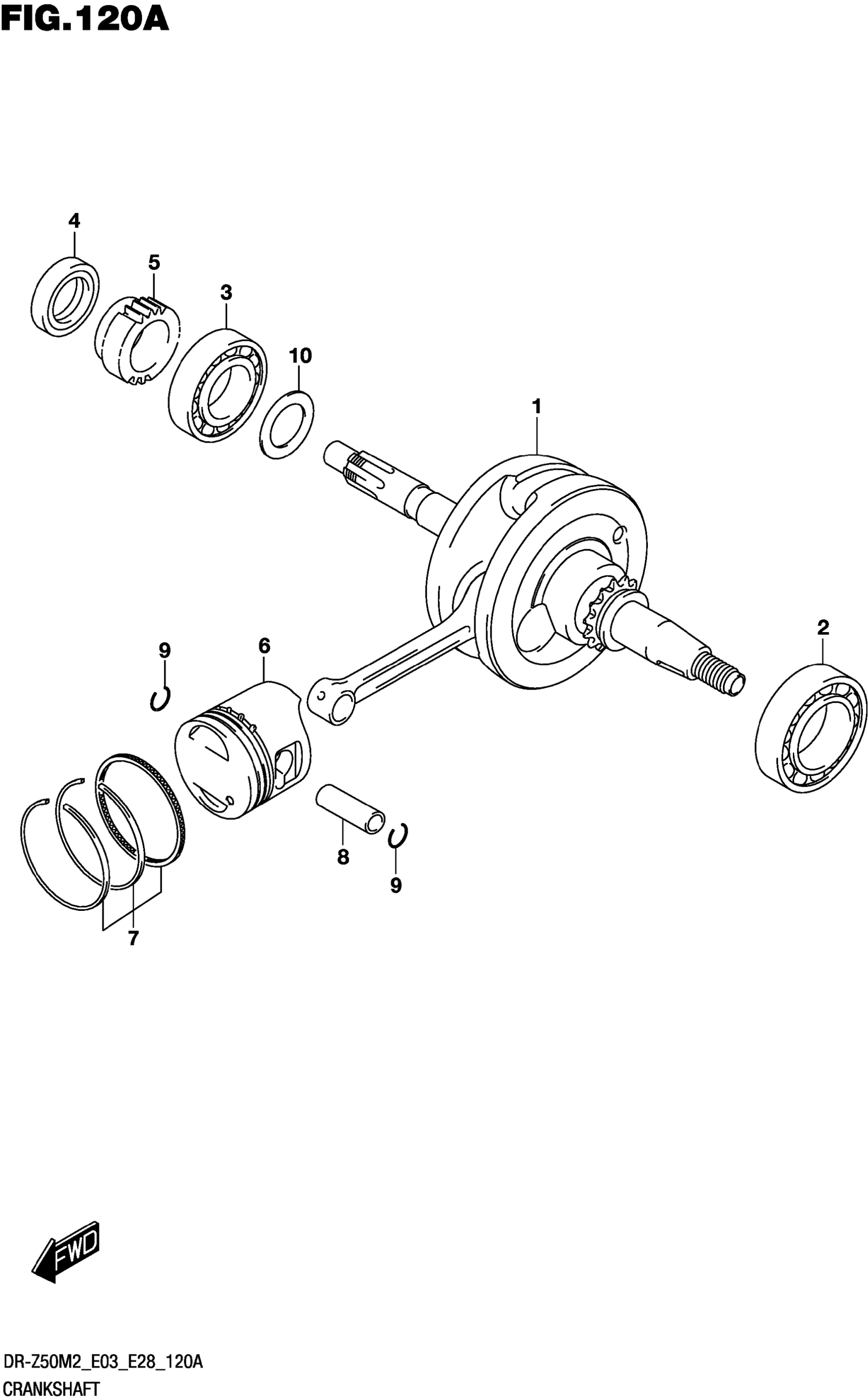

Find the part on the Crankshaft diagram for your 2022 Suzuki DR-Z50M2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki DR-Z50M2 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY

12200-36G42

1

$382.37

In stock

2

BEARING,35X62X14 (35X62X14)

09262-35021-0A0

1

$45.66

In stock

3

BEARING (20X52X15)

09262-20073

1
Out of stock

4

1

$13.18

In stock

5

GEAR,OIL PUMP DRIVE (NT:17)

16321-09411

1
Out of stock

6

PISTON

12111-36G00-0F0

1

$81.20

In stock

7

RING SET,PISTON

12140-32G00

1

$78.05

In stock

8

PIN,PISTON

12151-09400

1
Out of stock

9

SNAP RING

09381-12001

2

$1.52

In stock

10-1

SHIM,20X30X0.6 (T:0.60)

09181-20187

1
Out of stock

10-2

SHIM,20X30X0.65 (T:0.65)

09181-20009

1
Out of stock

10-3

SHIM,20X30X0.7 (T:0.70)

09181-20188

1
Out of stock

10-4

SHIM,20X30X0.75 (T:0.75)

09181-20189

1
Out of stock

10-5

SHIM,20X30X0.8 (T:0.80)

09181-20190

1
Out of stock

10-6

SHIM,20X30X0.85 (T:0.85)

09181-20191

1
Out of stock

10-7

SHIM,20X30X0.9 (T:0.90)

09181-20192

1
Out of stock

10-8

SHIM,20X30X1.95 (T:0.95)

09181-20193

1
Out of stock

10-9

SHIM (20X30X1)

09181-20195

1
Out of stock

10-10

SHIM,20X30X1.05 (T:1.05)

09181-20197

1
Out of stock

10-11

SHIM,20X30X1.1 (T:1.10)

09181-20200

1
Out of stock

10-12

SHIM,20X30X1.15 (T:1.15)

09181-20202

1
Out of stock

10-13

SHIM,20X30X1.2 (T:1.20)

09181-20204

1
Out of stock

10-14

SHIM,20X30X1.25 (T:1.25)

09181-20207

1
Out of stock

10-15

SHIM,20X30X1.3 (T:1.30)

09181-20209

1
Out of stock
