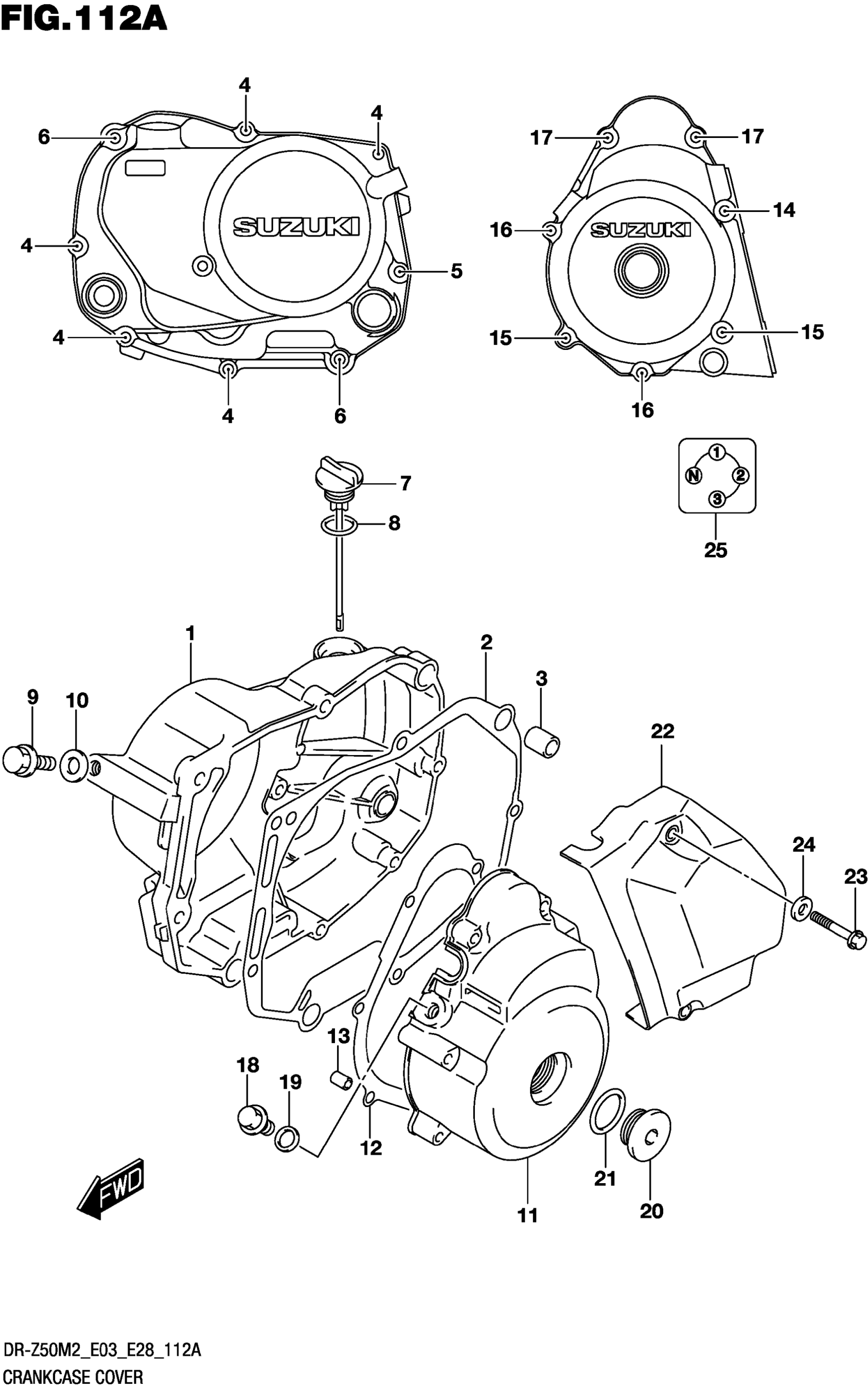

Find the part on the Crankcase Cover diagram for your 2022 Suzuki DR-Z50M2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki DR-Z50M2 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER,CLUTCH

11341-14H10

1

$224.37

In stock

2

.GASKET,CLUTCH COVER

11482-09420

1

$17.53

In stock

3

PIN (10.4X13X18)

04211-13189

2
Out of stock

4

BOLT

01547-0625A

5
Out of stock

5

BOLT

01547-0635A

1
Out of stock

6

BOLT

01547-0650A

2
Out of stock

7

GAUGE,OIL LEVEL

11971-09403

1

$13.50

In stock

8

1

$2.18

In stock

9

BOLT (8X12)

01550-0812A

1
Out of stock

10

GASKET (8.2X14X1.6)

09168-08015

1

$2.92

In stock

11

COVER,MAGNETO

11351-14H00

1

$175.90

In stock

12

.GASKET,MAGNETO COVER

11483-09440

1

$14.07

In stock

13

PIN

04211-09129

2
Out of stock

14

BOLT

01547-0630A

1

$2.48

In stock

15

BOLT

01547-0640A

2
Out of stock

16

BOLT

01547-0650A

2
Out of stock

17

.BOLT

01547-0690A

2

$2.95

In stock

18

PLUG (12X10)

09247-12006

1

$2.92

In stock

19

GASKET (12.1X16.2X3.7)

09168-12002

1
Out of stock

20

PLUG (26X9)

09259-26011

1

$10.69

In stock

21

O-RING (D:3.1,ID:22.7)

09280-22008

1
Out of stock

22

COVER,ENG SPROCKET

11360-14H00

1

$24.72

In stock

23

BOLT

01547-0640A

2
Out of stock

24

WASHER

08322-0106A

2
Out of stock

25

LABEL,GEAR SHIFT PATTERN

28117-14H00

1
Out of stock
