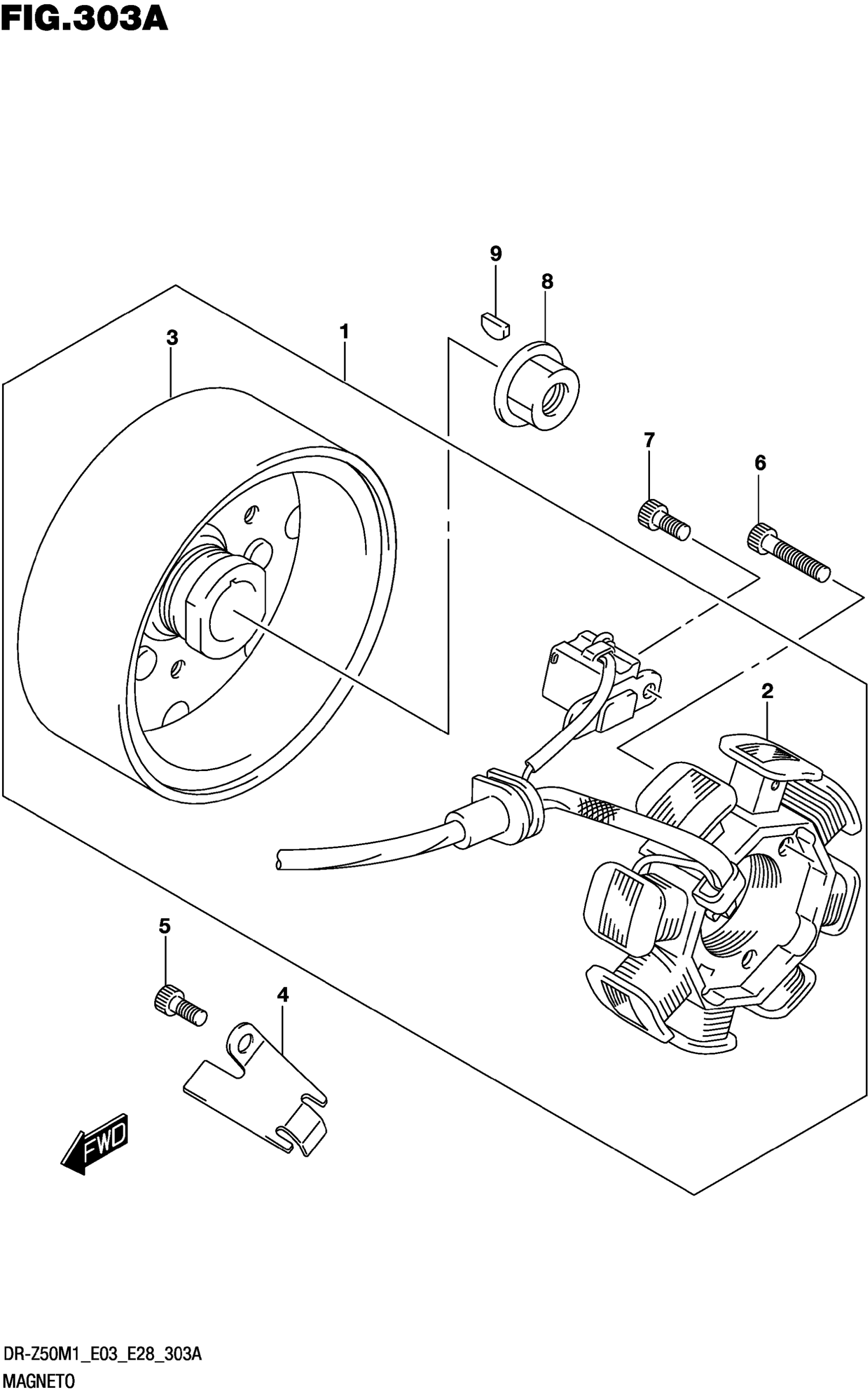

Suzuki DR-Z50M1 (2021) MAGNETO Diagram

#

Description
Price

1

MAGNETO ASSY

32100-14H00

Unavailable

2

.STATOR ASSY

32101-14H00

$339.35

3

.ROTOR ASSY

32102-14H00

Unavailable

4

CLAMP,MAGNETO LEAD

32371-30D00

Unavailable

5

BOLT

07130-0612A

$2.58

6

BOLT

07130-0620A

$2.57

7

BOLT

07130-0512A

$2.25

8

NUT

08316-1010A

$2.95

9

KEY

08341-31039

$1.97
