Description

Price

1

TANK ASSY,FUEL

44100-14H00

Unavailable

2

TUBE, FILLER INLET

44199-19A00

$6.28

3

HOOK, SEAT FR

44132-27C01

$17.17

4

BOLT (6X20)

09139-06148

$4.17

5

RUBBER, FUEL TANK INLET

44261-14H01

$10.25

6

COVER,FUEL TANK UPPER

44291-14H00

Unavailable

7

.CUSHION (20X40X3)

44294-14H00

$3.33

8

CAP ASSY, FUEL TANK FILLER

44200-29F01

$38.33

9

HOSE (5X8.2X360)

09352-50005-360

$6.38

10

CUSHION,FUEL TANK RR

44511-10G11

$5.12

11

WASHER,FUEL TANK

44512-10G00

Unavailable

12

BOLT

01547-0625A

$2.01

13

CUSHION, FUEL TANK

44541-13E10

$26.73

14

CLAMP (L:300)

09407-30402

$4.11

15

COCK ASSY,FUEL

44300-14H00

$61.64

16

HOSE,FUEL

44421-14H20

$8.85

17

CLIP (ID:9.4,H:8)

09401-09403

$2.03

18

BOLT

01547-0616A

$2.03

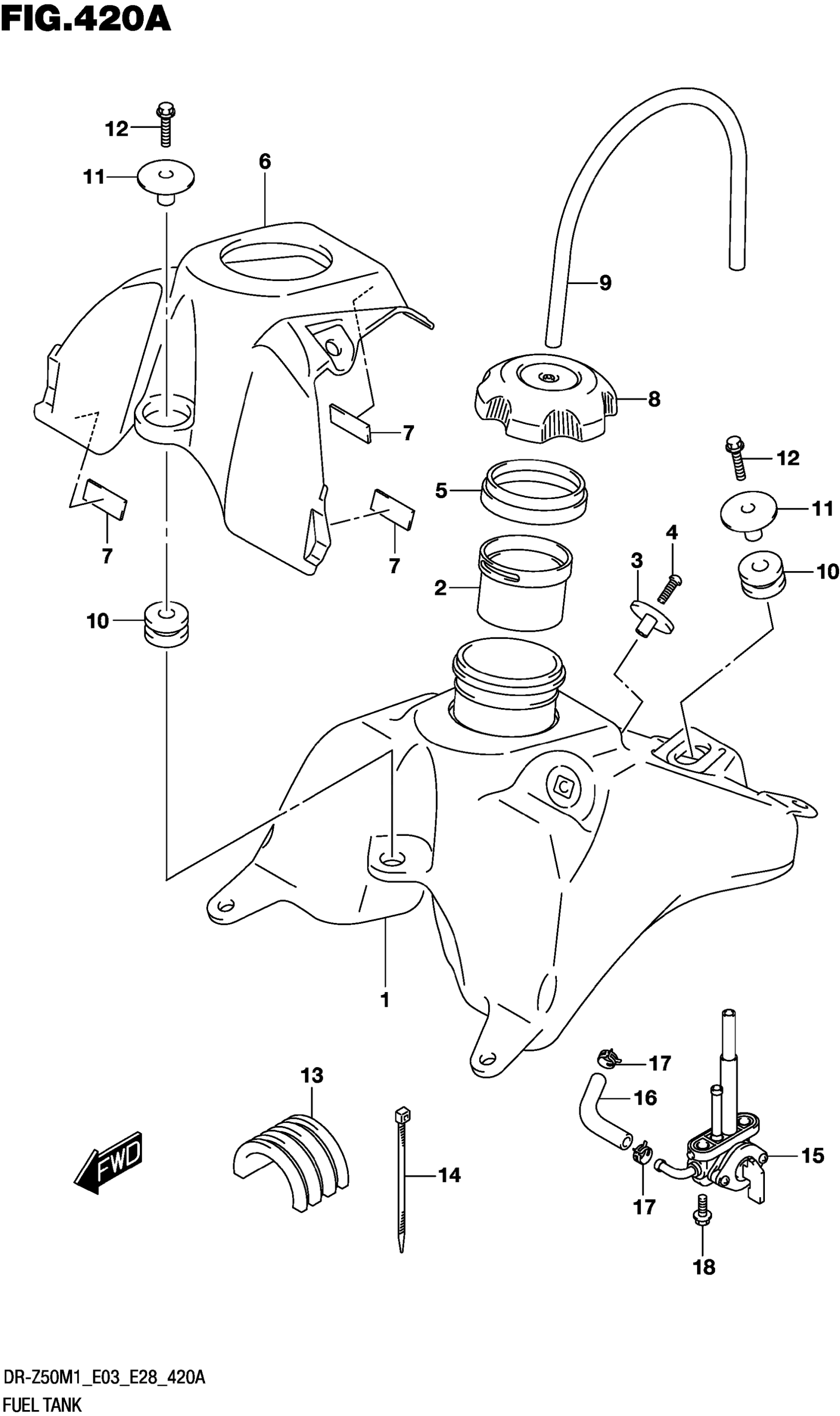

Suzuki DR-Z50M1 (2021) FUEL TANK Diagram

TANK ASSY,FUEL

TUBE, FILLER INLET

HOOK, SEAT FR

BOLT (6X20)

RUBBER, FUEL TANK INLET

COVER,FUEL TANK UPPER

.CUSHION (20X40X3)

CAP ASSY, FUEL TANK FILLER

HOSE (5X8.2X360)

CUSHION,FUEL TANK RR

WASHER,FUEL TANK

BOLT

CUSHION, FUEL TANK

CLAMP (L:300)

COCK ASSY,FUEL

HOSE,FUEL

CLIP (ID:9.4,H:8)

BOLT
