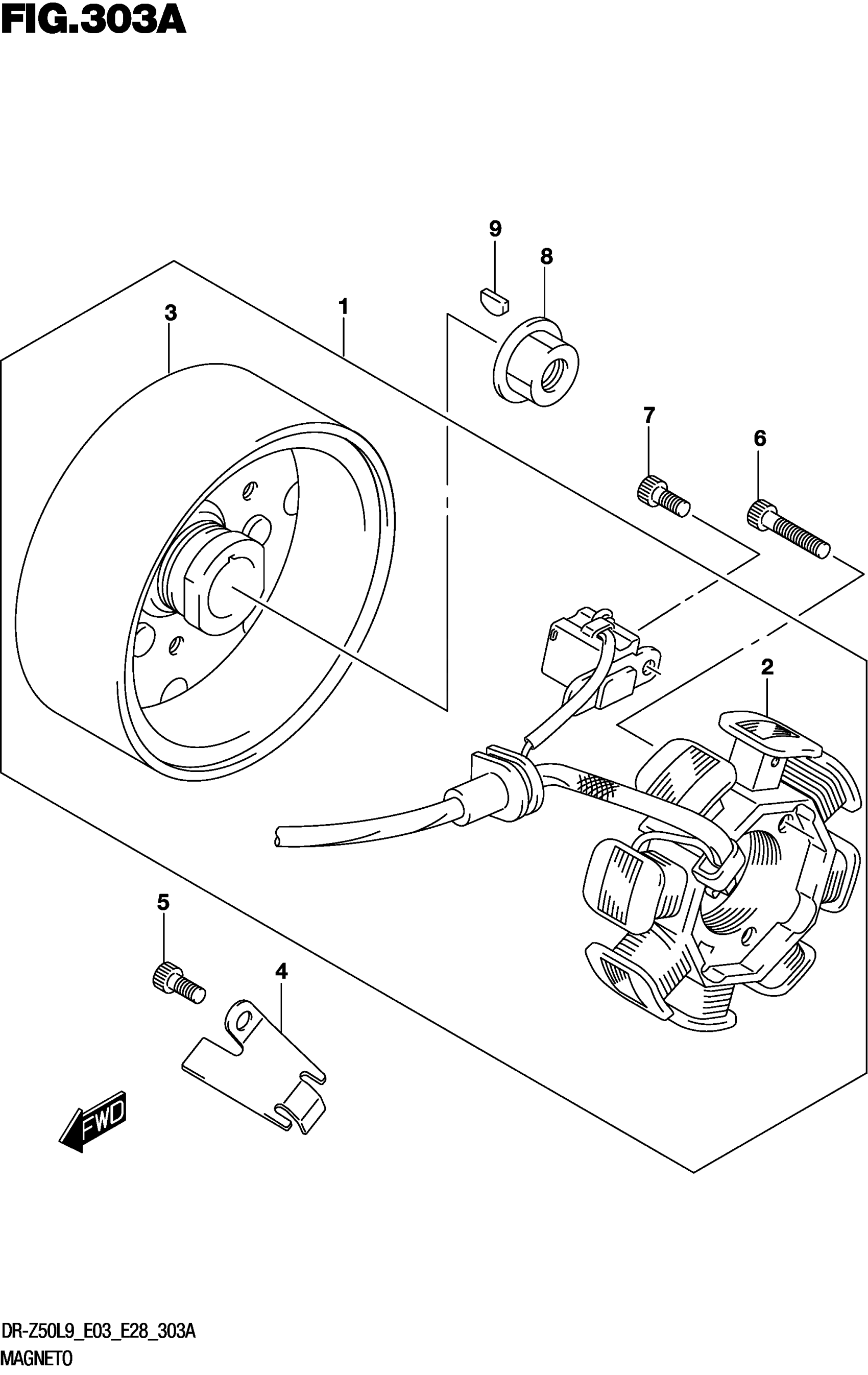

Suzuki DR-Z50L9 (2019) MAGNETO Diagram

#

Description
Price

1

MAGNETO ASSY

32100-14H00

$463.53

2

.STATOR ASSY

32101-14H00

$304.95

3

.ROTOR ASSY

32102-14H00

Unavailable

4

CLAMP,MAGNETO LEAD

32371-30D00

Unavailable

5

BOLT

07130-0612A

$2.50

6

BOLT

07130-0620A

$2.50

7

BOLT

07130-0512A

$2.19

8

NUT

08316-1010A

$2.70

9

KEY

08341-31039

$1.89
