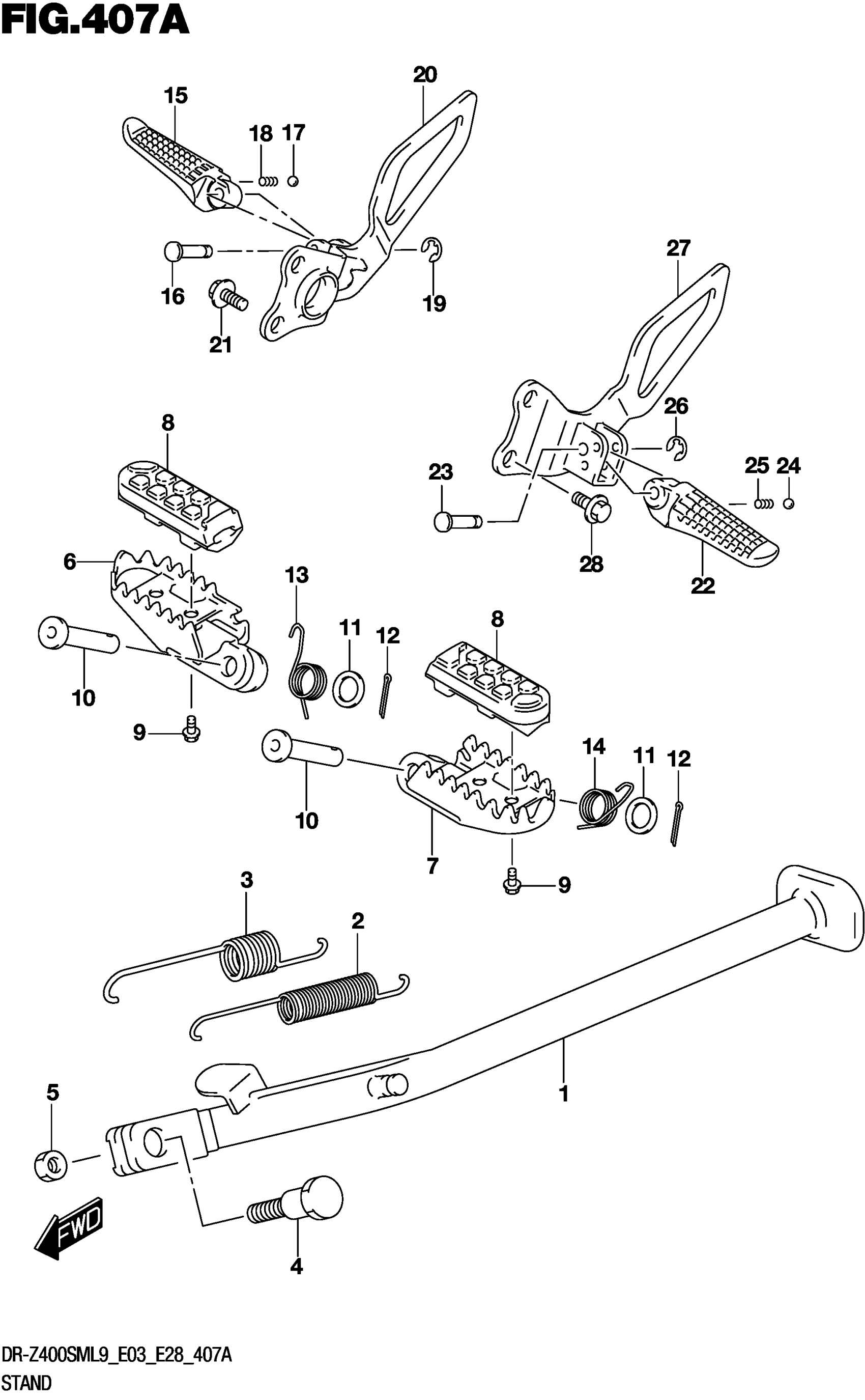

Suzuki DR-Z400SML9 (2019) STAND Diagram

#

Description
Price

1

STAND PROP

42310-29F20

$147.97

2

SPRING | INNER

09443-15046

$8.32

3

SPRING | OUTER

09443-22017

$7.74

4

BOLT (10X33)

09111-10060

$4.11

5

NUT, PROP STAND

42321-03FK0

$5.17

6

FOOTREST FR R

43550-29E01

$111.52

7

FOOTREST FR L

43560-29E01

$109.42

8

RUBBER FOOTREST

43530-29F00

$25.27

9

BOLT (L:80)

01547-0510A

$2.53

10

PIN (10X41.5)

09200-10019

$6.83

11

WASHER

08322-0110B

$2.34

12

PIN

04111-2520A

$1.49

13

SPRING | RH

09448-18030

$5.36

14

SPRING | LH

09448-18029

$5.36

15

BAR PILLION FOOTREST R

43611-33E11

$55.65

16

PIN

87259-85510

$5.19

17

BALL

06111-07004

$1.49

18

SPRING

09440-05005

$1.58

19

E-RING

08332-1104B

$1.78

20

BRACKET PILLION R

43650-29F20

$73.88

21

BOLT

01550-0816B

$2.73

22

BAR PILLION FOOTREST L

43621-33E11

$55.65

23

PIN

87259-85510

$5.19

24

BALL

06111-07004

$1.49

25

SPRING

09440-05005

$1.58

26

E-RING

08332-1104B

$1.78

27

BRACKET PILLION L

43750-29F00

$77.57

28

BOLT

01550-0816B

$2.73
