2019 Suzuki DR-Z400SML9 Seat Diagram

← All diagrams

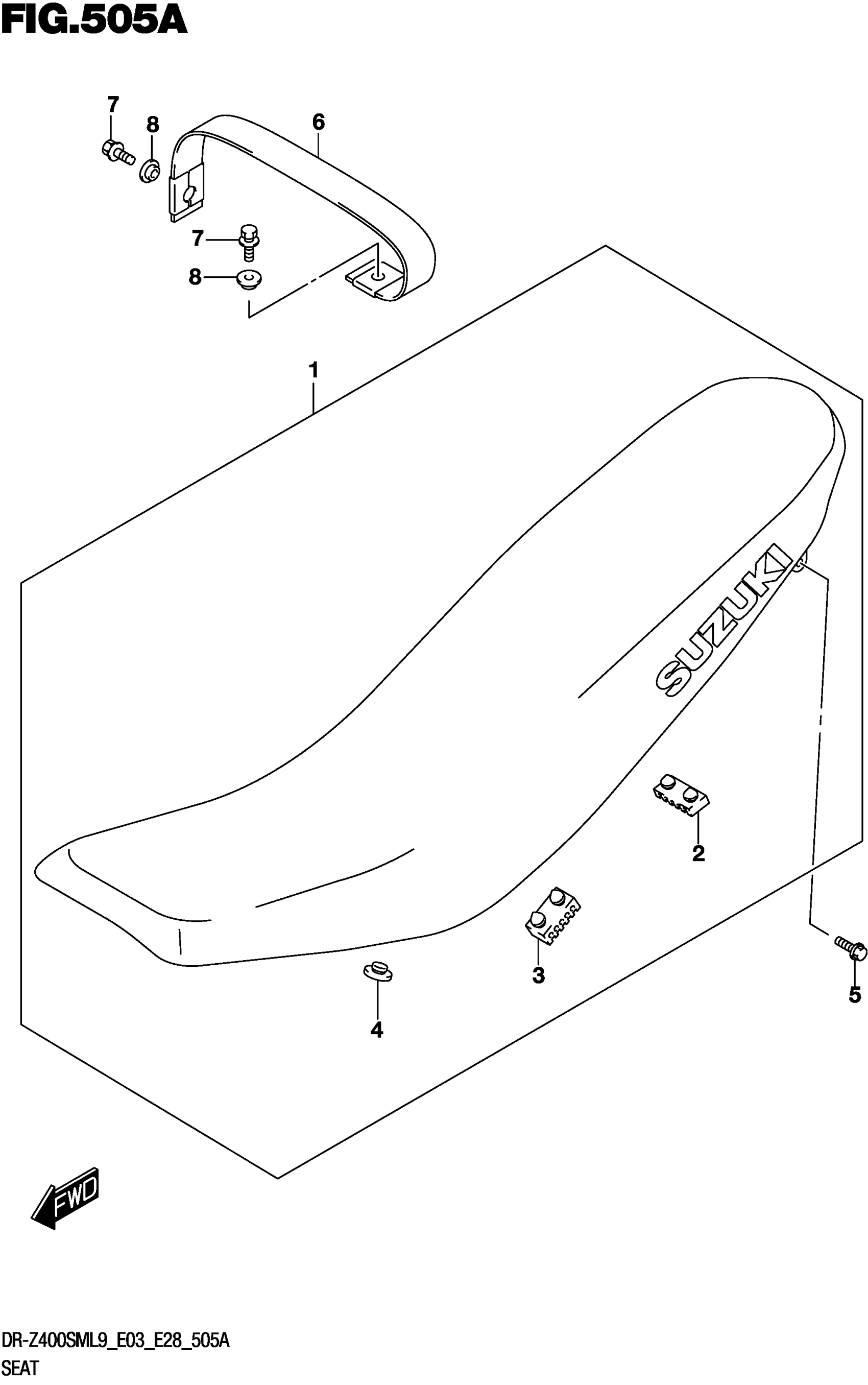

Find the part on the Seat diagram for your 2019 Suzuki DR-Z400SML9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki DR-Z400SML9 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1-1

SEAT ASSY | FOR 30H This part replaces 45100-29FE0-BS2.

45100-29FE1-BS2

1
Out of stock

1-2

SEAT ASSY | FOR 5UX

45100-29FE0-BS6

1
Out of stock

2

CUSHION,SEAT (40X20X6)

45149-12C00

2
Out of stock

3

.CUSHION,SEAT (40X20X15)

45149-31300

4
Out of stock

4

CUSHION

09321-10022

2
Out of stock

5

BOLT (6X20)

09116-06182

2
Out of stock

6

BAND ASSY, SEAT

45180-29F00-P21

1
Out of stock

7

BOLT (6X25)

09116-06150

2
Out of stock

8

WASHER (6.3X17X6)

09169-06063

2
Out of stock
