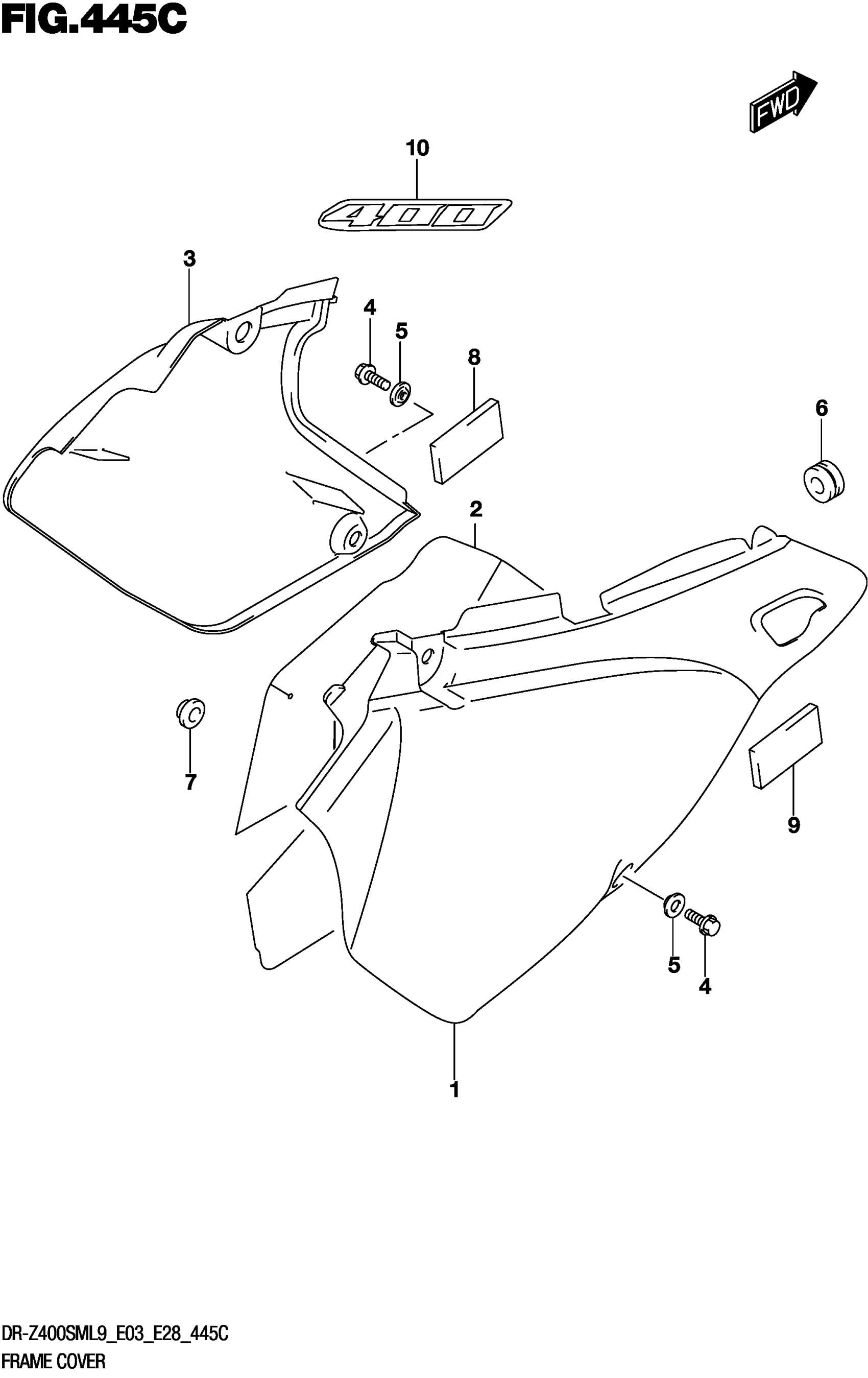

Suzuki DR-Z400SML9 (2019) FRAME COVER (DR-Z400SML9 E33) Diagram

#

Description
Price

1

COVER FRAME R (WHITE)

47111-29FC0-30H

$64.47

2

SHIELD FRAME COVER R

47166-29F00

$93.58

3

COVER FRAME LH (WHITE)

47211-29FC0-30H

$93.40

4

BOLT (6X12)

09103-06273

$2.31

5

WASHER This part replaces 09169-06028.

09169-06041

$2.02

6

CUSHION (6X18X6)

09320-06504

$4.61

7

CUSHION

09321-10018

$4.33

8

CUSHION FRAME COVER L

47161-29F00

$8.12

9

CUSHION (18X70X6)

71762-65G10

$9.35

10

EMBLEM, "400SM"

68135-29FN0-8WN

$17.10
