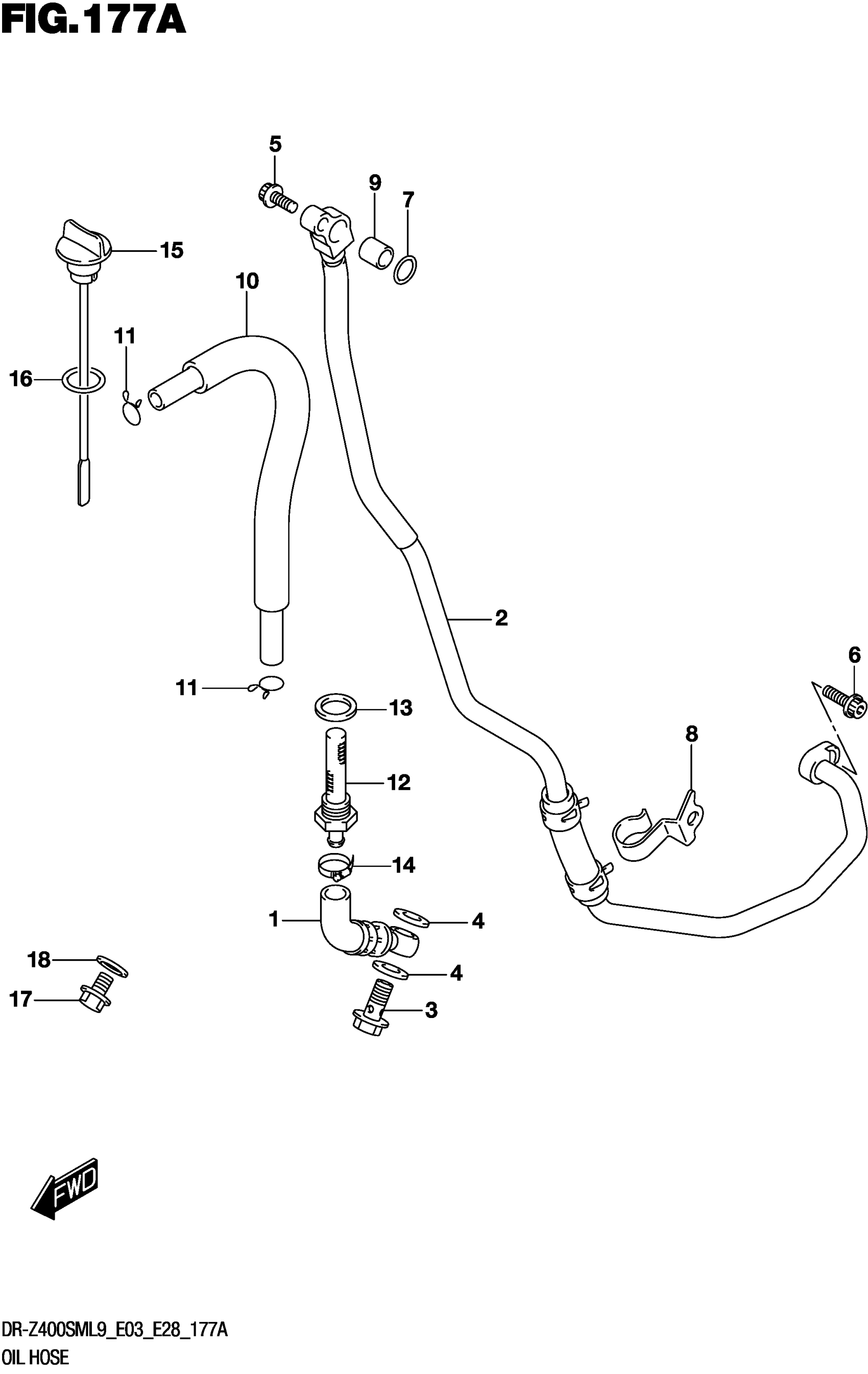

Suzuki DR-Z400SML9 (2019) OIL HOSE Diagram

#

Description
Price

1

HOSE OIL TANK R

16460-29F10

$74.28

2

HOSE OIL TANK L

16470-29F20

$142.88

3

UNION (14X27)

09360-14012

$10.86

4

.GASKET (14X20X1.5)

09168-14015

$2.03

5

BOLT

07120-0616A

$2.53

6

BOLT

07120-0620A

$2.72

7

.O-RING (D:2.4 ID:11)

09280-11005

$4.36

8

CLAMP OIL TANK HOSE

16491-29F11

$7.12

9

PIN

04211-11129

$1.76

10

HOSE OIL TANK OVER FLOW

16480-29F00

$23.78

11

CLIP

09401-12403

$1.96

12

STRAINER FRAME HEAD UNDER

16550-29F00

$75.68

13

GASKET (18X22X2)

09168-18007

$3.18

14

CLAMP

09402-22512

$8.62

15

GAUGE OIL LEVEL

16561-29F10

$10.93

16

O-RING (D:3.1,ID:16.8)

09280-17003

$1.65

17

PLUG (10X12) | OIL DRAIN

09247-10008

$1.97

18

GASKET (10X14X3.6)

09168-10002

$2.13
