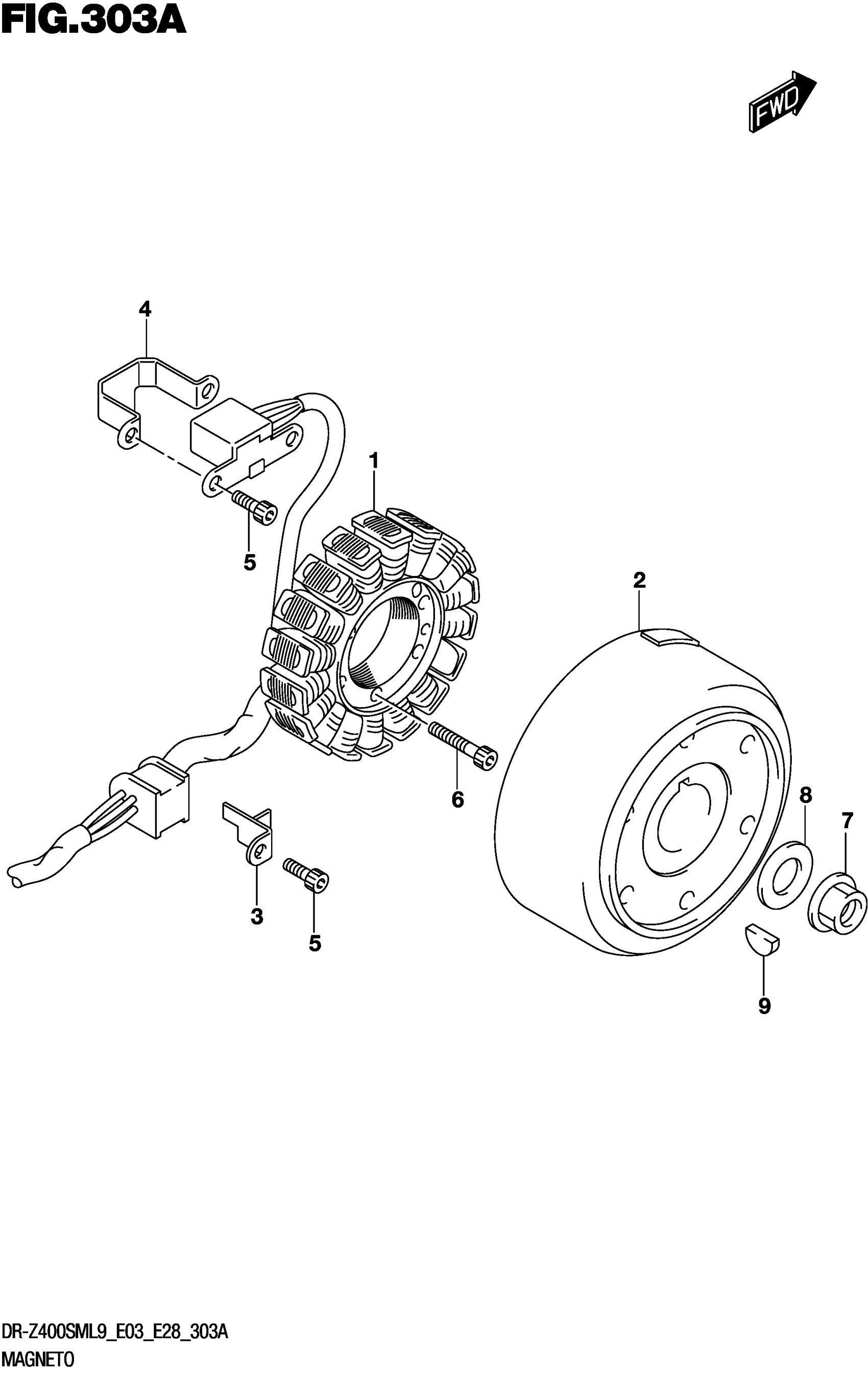

Suzuki DR-Z400SML9 (2019) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY

32101-29F00

$609.67

2

ROTOR ASSY

32102-29F00

$622.50

3

CLAMP MAGNETO LEAD NO.1

32371-13E00

$3.56

4

CLAMP MAGNETO LEAD WIRE

32371-14D01

$5.45

5

BOLT

07130-0512A

$2.19

6

BOLT

07130-0525A

$2.28

7

NUT

09159-12068

$2.42

8

WASHER (12X27X2.0)

09160-12051

$2.42

9

KEY (B:4,D:16,H6.5)

09420-04008

$3.42
