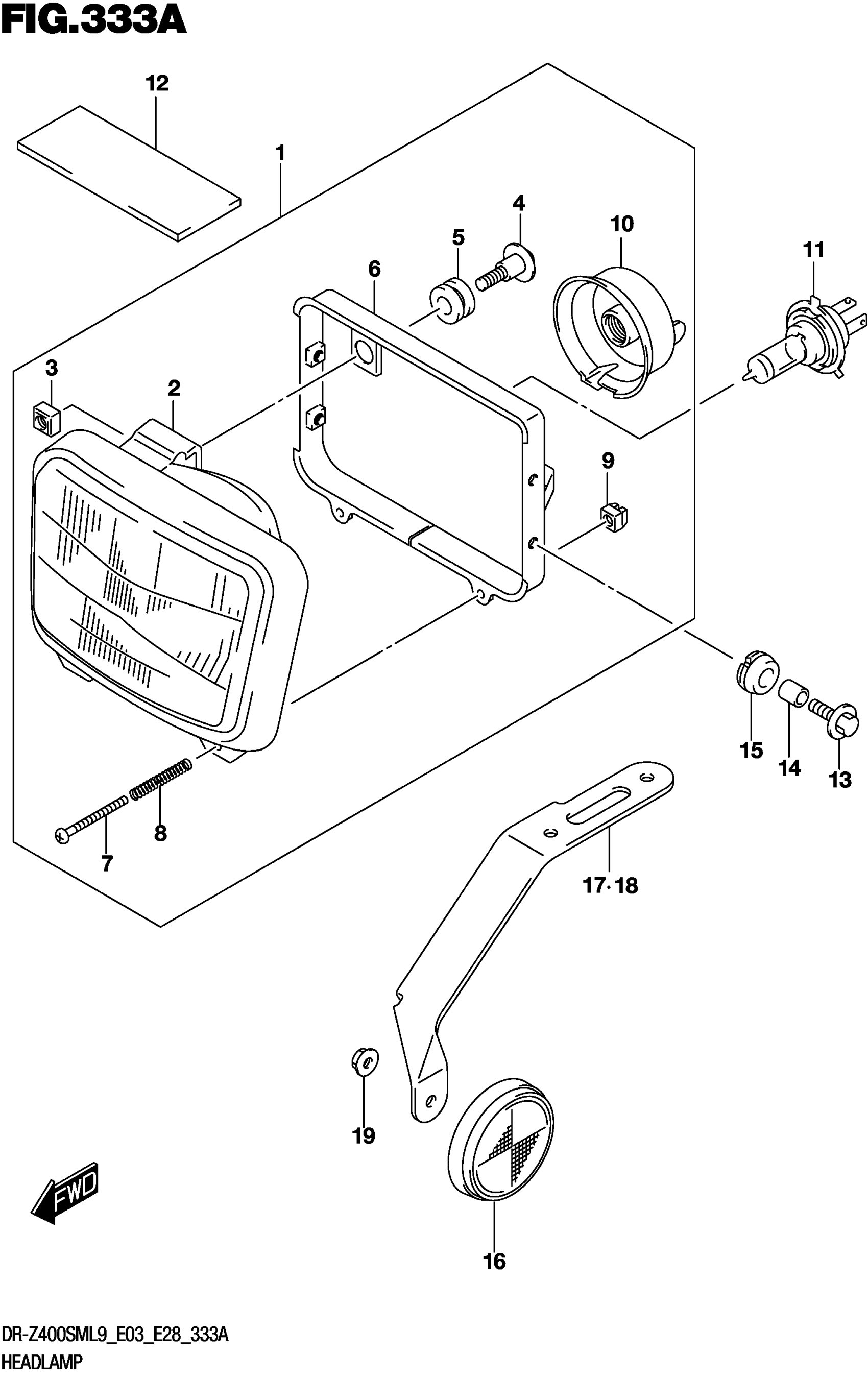

Suzuki DR-Z400SML9 (2019) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY

35100-12EA0-999

$439.80

2

.UNIT ASSY

35121-12EA0

$159.33

3

.NUT

35135-45900

$3.25

4

.SCREW MOUNTING

35136-38A00

$4.02

5

.CUSHION

35139-45230

$1.98

6

.HOUSING

35141-12EA0

$112.37

7

.SCREW ADJUSTING

35151-12EA0

$6.23

8

.SPRING ADJUSTING

35154-12EA0

$6.92

9

.NUT ADJUSTING

35135-12E20

$3.72

10

.COVER SOCKET

35173-01440

$17.37

11

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

$25.15

12

CUSHION HEADLAMP

36920-44A01

$6.38

13

BOLT (6X20)

09116-06167

$2.19

14

SPACER (6.5X10X10)

09180-06310

$1.91

15

CUSHION

09320-09018

$2.44

16

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

16

REFLEX REFLECTOR ASSY, FR SID

35950-14A11

$15.23

17

BRACKET FRONT SIDE RR R

35956-29F10

$14.00

18

BRACKET FRONT SIDE RR L

35957-29F10

$13.73

19

NUT

08316-1005B

$2.50
