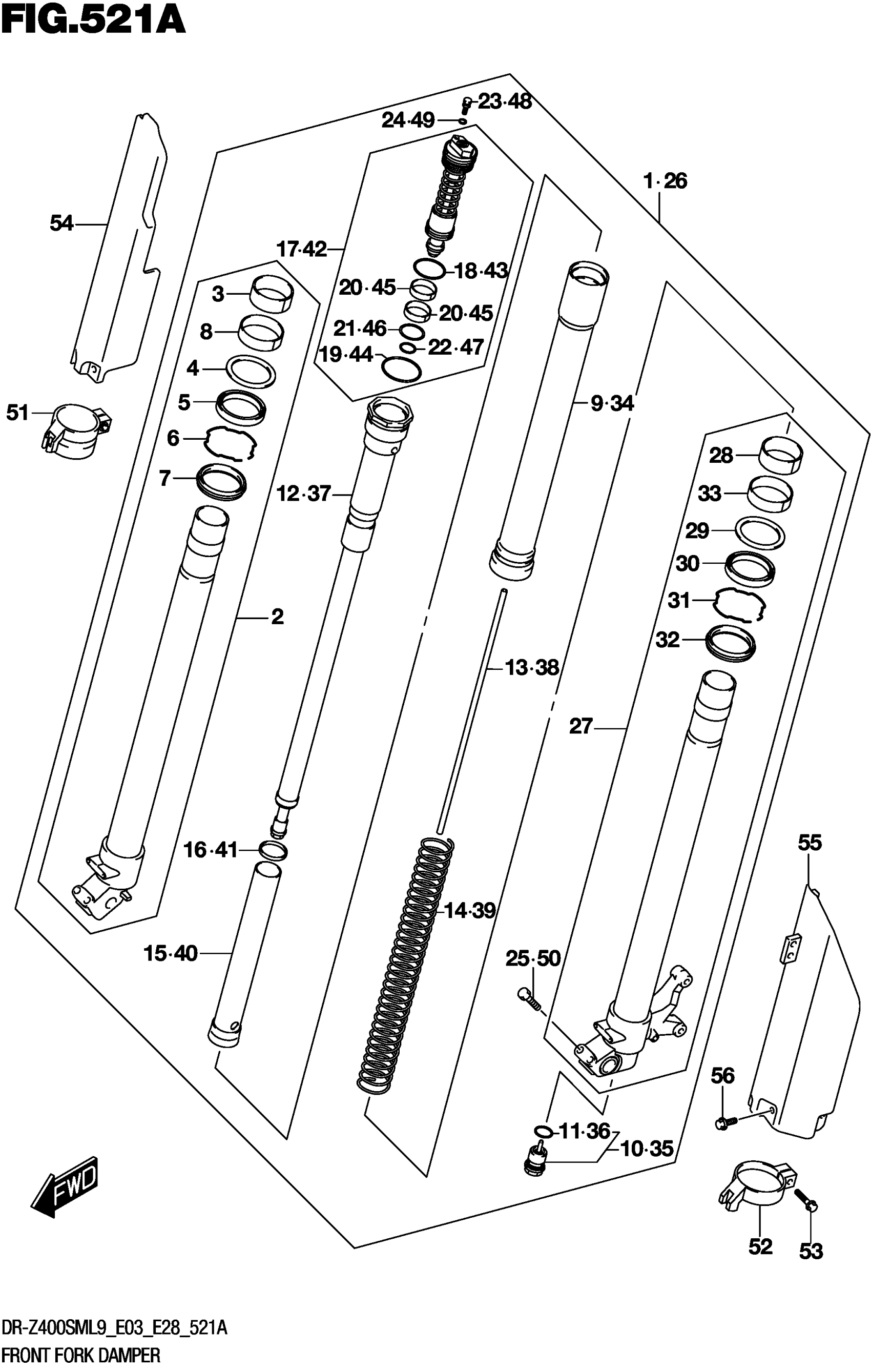

Suzuki DR-Z400SML9 (2019) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY FR FORK R

51103-29F70

Unavailable

2

.TUBE INNER R

51110-29F70

$843.10

3

..BUSH GUIDE

51167-36F00

$23.85

4

..SPACER SEAL

51158-36F00

$9.37

5

..SEAL OIL

51153-37F80

$29.48

6

..RING OIL SEAL STOPPER

51156-27C40

$5.19

7

..SEAL DUST

51173-37F80

$26.58

8

..BUSH SLIDE

51121-36F00

$27.62

9

.TUBE OUTER R

51130-29F70

Unavailable

10

.BOLT CENTER

51170-37F70

$223.32

11

..O RING

51177-36E20

$4.10

12

.DAMPER

51190-29F70

Unavailable

13

.ROD PUSH

51191-29F70

Unavailable

14

.SPRING FR

51171-29F70

Unavailable

15

.COLLAR SPRING

51198-37F70

$76.20

16

.SPRING SEAT

51178-29F70

Unavailable

17

.BOLT FORK

51351-29F70

$357.43

18

.O RING

51117-37F80

$6.93

19

..O RING

51118-37F80

$6.93

20

..BUSH FORK BOLT SLIDE

51123-28E30

$15.22

21

..O RING

51174-36E40

$4.25

22

..O RING

51175-36E20

$5.17

23

..BOLT,PLUG

51357-36F20

$14.37

24

...O-RING

51358-28E30

$4.28

25

.BOLT

51166-35F00

$7.50

26

DAMPER ASSY FR FORK L

51104-29F70

Unavailable

27

.TUBE INNER L

51120-29F70

$843.10

28

..BUSH GUIDE

51167-36F00

$23.85

29

..SPACER SEAL

51158-36F00

$9.37

30

..SEAL OIL

51153-37F80

$29.48

31

..RING OIL SEAL STOPPER

51156-27C40

$5.19

32

..SEAL DUST

51173-37F80

$26.58

33

..BUSH SLIDE

51121-36F00

$27.62

34

.TUBE OUTER R

51130-29F70

Unavailable

35

.BOLT CENTER

51170-37F70

$223.32

36

..O RING

51177-36E20

$4.10

37

.DAMPER

51190-29F70

Unavailable

38

.ROD PUSH

51191-29F70

Unavailable

39

.SPRING FR

51171-29F70

Unavailable

40

.COLLAR SPRING

51198-37F70

$76.20

41

.SPRING SEAT

51178-29F70

Unavailable

42

.BOLT FORK

51351-29F70

$357.43

43

.O RING

51117-37F80

$6.93

44

..O RING

51118-37F80

$6.93

45

..BUSH FORK BOLT SLIDE

51123-28E30

$15.22

46

..O RING

51174-36E40

$4.25

47

..O RING

51175-36E20

$5.17

48

..BOLT,PLUG

51357-36F20

$14.37

49

...O-RING

51358-28E30

$4.28

50

.BOLT

51166-35F00

$7.50

51

GUIDE PROTECTOR R

51220-36E61

$58.92

52

GUIDE PROTECTOR L

51210-36E61

$58.92

53

BOLT

01547-06207

$2.01

54

PROTECTOR FR FORK R (BLACK)

51501-29F70-019

$148.73

55

PROTECTOR FR FORK L (BLACK)

51511-29F70-019

$151.53

56

BOLT (6X10)

09103-06256

$2.28
