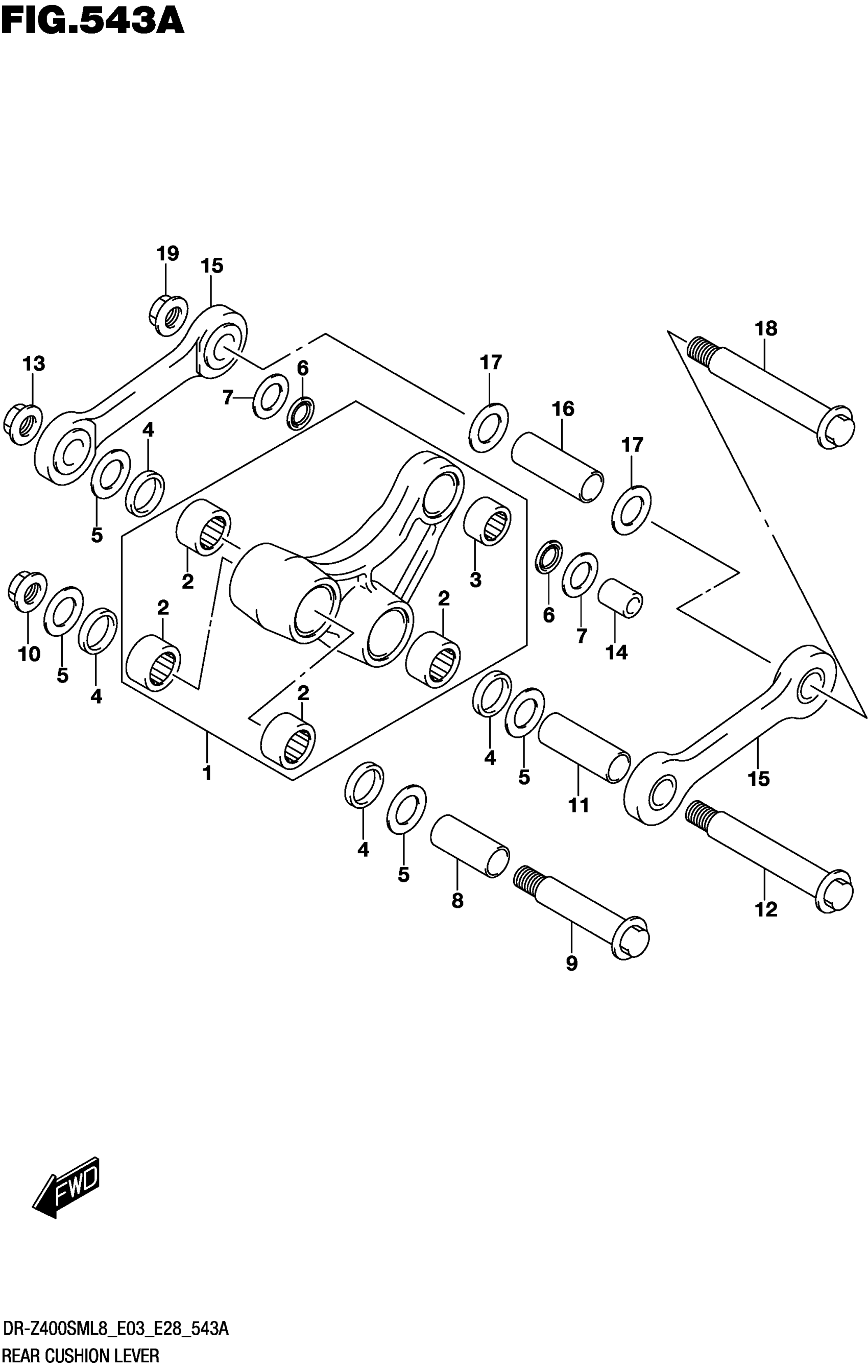

Suzuki DR-Z400SML8 (2018) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET REAR CUSHION

62600-37830

Unavailable

2

.BEARING (20X27X15)

09263-20086

$16.47

3

.BEARING (16X22X12)

09263-16033

$20.26

4

.SEAL CUSHION LEVER DUST (19X

62624-14500

$6.01

5

WASHER THRUST SWINGARM RR (20

62647-37E00

$4.34

6

OIL SEAL (16X22X2.5)

09284-16005

$6.95

7

WASHER, THRUST LVR CUSHION RR

62685-37E00

$4.43

8

SPACER CUSHION LEVER FR (15X2

62317-37E10

$24.77

8

SPACER CUSHION LEVER FR (15X2

62317-37E10

$24.77

9

BOLT RR CUSHION LEVER FR (12X

62658-37E01

$15.95

10

NUT

09159-12056

$7.37

11

SPACER RR CUSHION (15X20X57.4

62646-37E10

$24.77

12

BOLT RR CUSHION (12X100)

62621-37E01

$22.92

13

NUT

09159-12056

$7.37

14

SPACER, RR CUSHION LEVER RR

62684-36E10

$15.42

15

ROD SET RR CUSHION

62640-37E11

$181.73

16

SPACER RR CUSHION (15X20X57.4

62646-37E10

$24.77

17

WASHER THRUST SWINGARM RR (20

62647-37E00

$4.34

18

BOLT RR CUSHION (12X100)

62621-37E01

$22.92

19

NUT

09159-12056

$7.37
