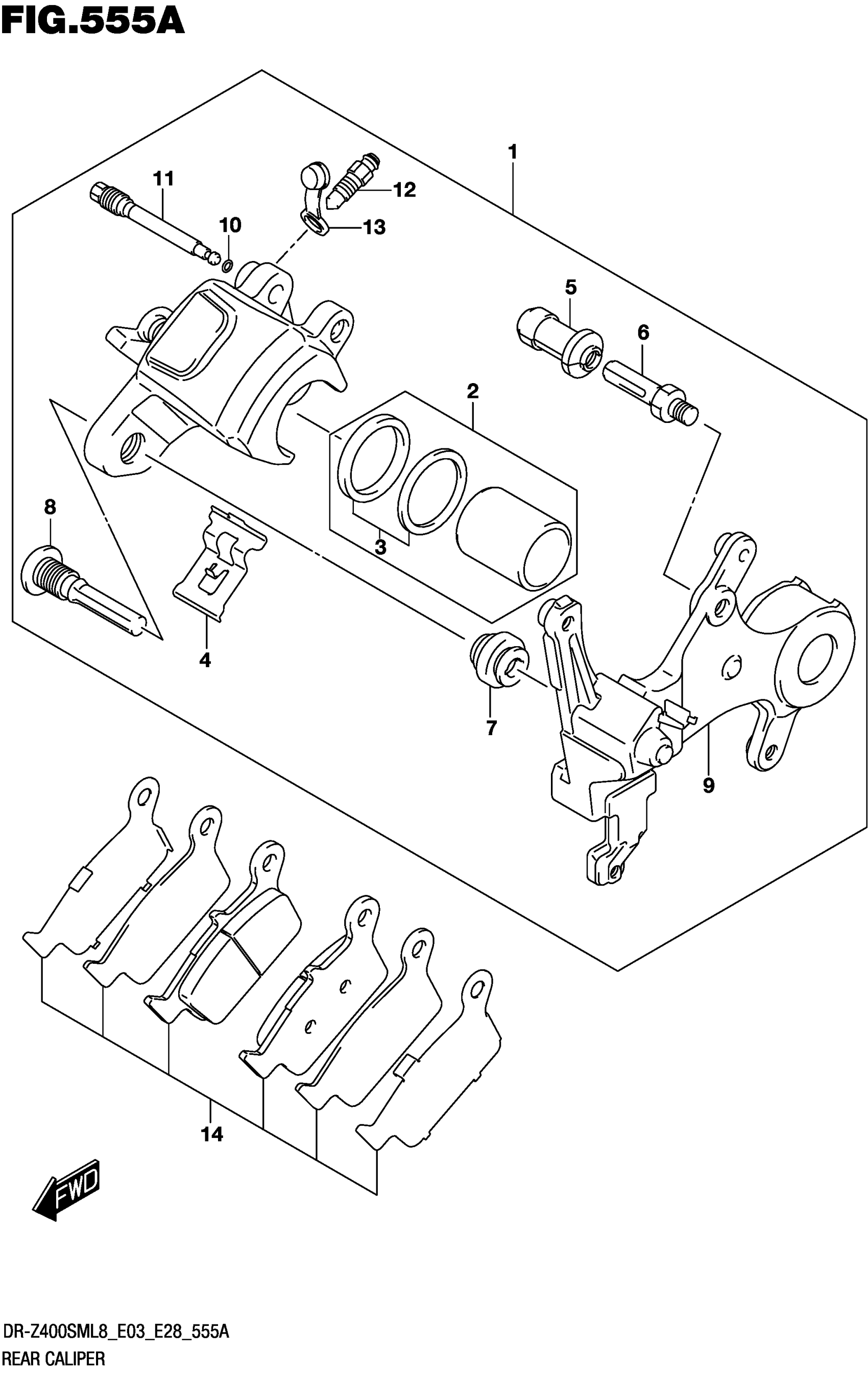

Suzuki DR-Z400SML8 (2018) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY REAR

69100-29F00-999

$500.10

2

.PISTON SET

69100-43810

$33.54

3

..SEAL SET,PISTON

69100-36810

$8.50

4

.SPRING PAD

59315-36E00

$12.53

5

.BOOT

59386-13A00

$7.28

6

.BOLT

59382-27C30

$8.54

7

.BOOT

59303-14500

$5.06

8

.PIN,BOLT

59305-36E00

$17.14

9

.BRACKET

69350-29F00

$190.22

10

.RING,STOPPER

59145-37F00

$6.30

11

.PIN,HANGER

69345-37F00

$23.37

12

.BLEEDER

59121-01A00

$7.99

13

.CAP,BLEEDER

59122-46H00

$4.17

14

PAD & RETAINER SET

69100-36850

$46.20
