Description

Price

1

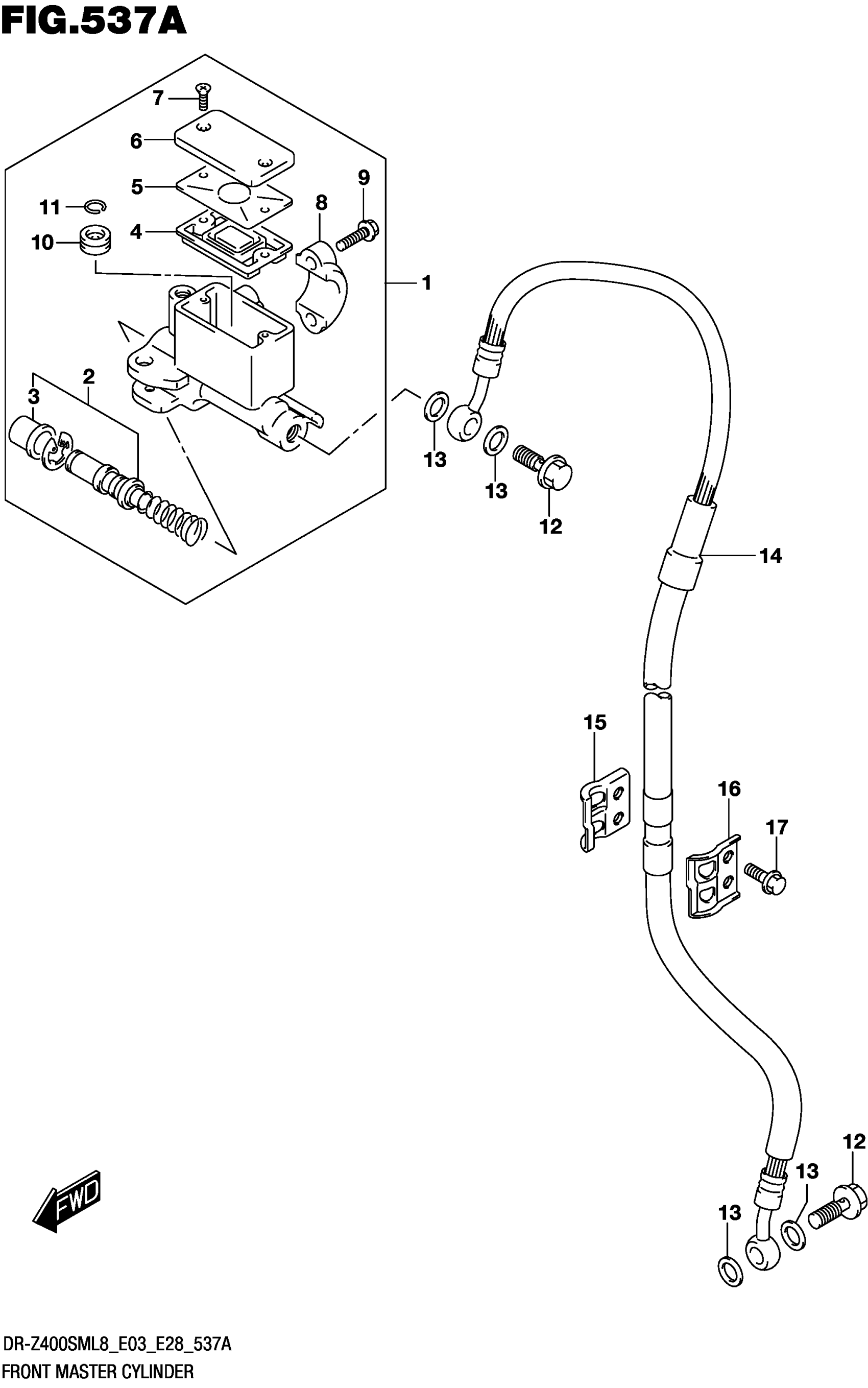

CYLINDER ASSY FRONT MASTER

59600-44E50

$283.85

2

.PISTON/CUP SET

69600-38810

$66.13

3

..BOOT

59666-44300

$5.30

4

.DIAPHRAGM

59667-04700

$8.95

5

.PLATE,DIAPHRAGM

59668-14F00

$13.10

6

.PLATE

59669-14F20

$26.23

7

.SCREW

02122-0412A

$1.95

8

.HOLDER

59671-03D00

$29.60

9

.BOLT (6X25)

59675-06F00

$5.33

10

.SEPARATOR

59748-36E00

$10.58

11

.RING

69744-36E00

$4.53

12

UNION (10X1.25X22)

09360-10062

$5.81

13

WASHER (10X15X1.5)

09161-10009

$1.83

14

HOSE This part replaces 59480-29F31.

59480-29F32

$184.63

15

CLAMP FRONT BRAKE HOSE INNER

59260-36E00

$13.03

16

CLAMP FR BRAKE HOSE OUTER

59270-29F00
