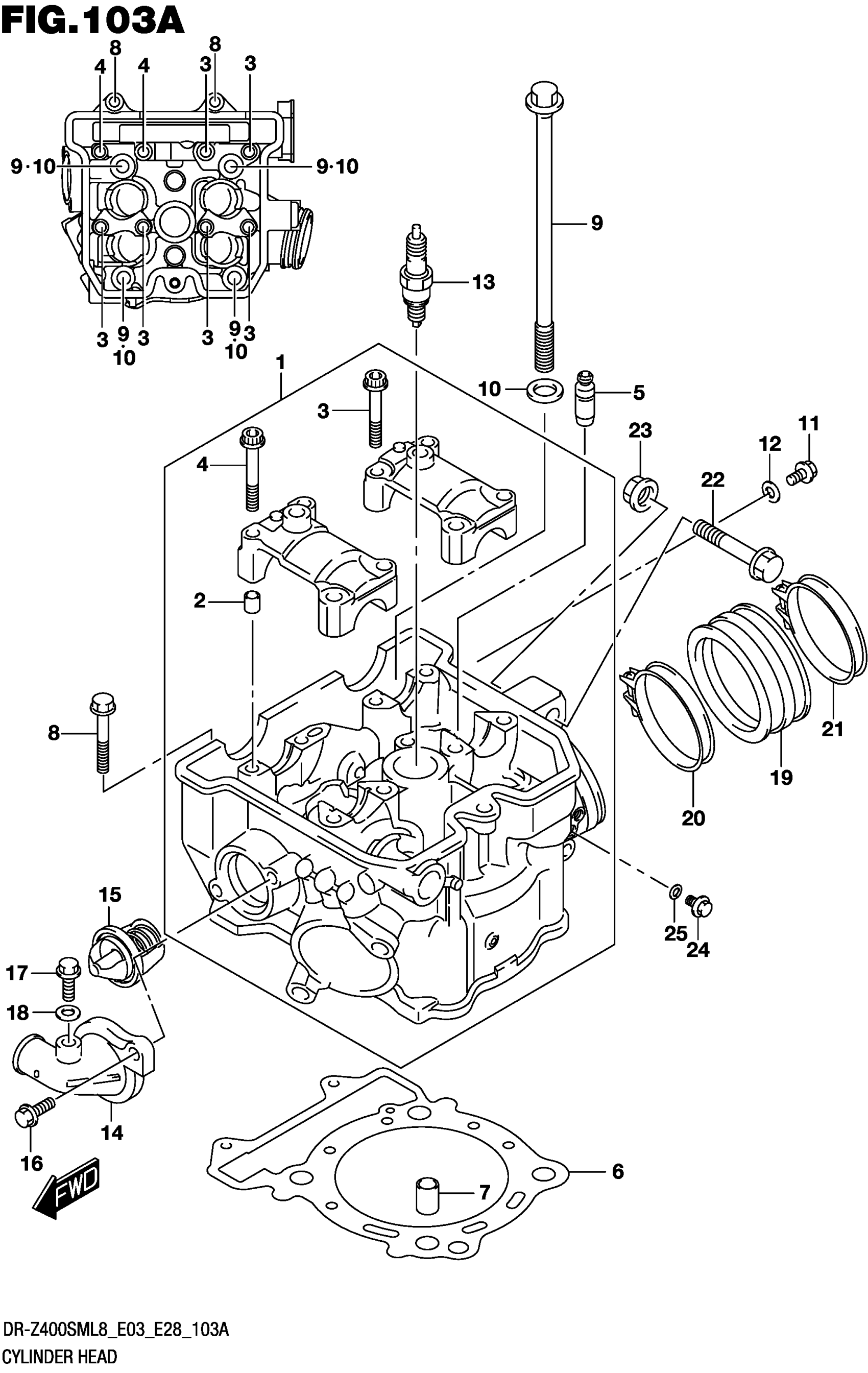

Suzuki DR-Z400SML8 (2018) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY

11100-29F11

$1,095.72

2

.PIN (8X11)

09206-08001

$1.78

3

BOLT

07120-0640A

$3.05

4

.BOLT

07120-0645A

$3.85

5

GUIDE VALVE (OS:0.3) | OPT

11115-20E70

$32.10

6

.GASKET CYLINDER HEAD

11141-29F01

$41.48

7

PIN (10.4X13X18)

04211-13189

$2.19

8

BOLT (6X39)

09103-06026

$1.98

9

BOLT (10X175)

09103-10276

$16.01

10

WASHER (10.5X19X2.0)

09160-10082

$1.61

11

BOLT

01550-0610A

$1.97

12

GASKET (5.8X13X1.2)

09168-06023

$2.35

13-1

SPARK PLUG (CR8E) | NGK

09482-00456

$6.73

13-2

SPARK PLUG (U24ESR-N) | DENSO

09482-00457

$6.09

13-3

SPARK PLUG (CR7E) | OPT

09482-00516

$6.47

13-3

SPARK PLUG (CR7E) | NGK

09482-00516

$6.47

13-4

PLUG SPARK (CR9E) | OPT

09482-00458

$6.47

13-4

PLUG SPARK (CR9E) | NGK

09482-00458

$6.47

13-5

SPARK PLUG (CR10E) | OPT

09482-00460

$6.47

13-5

SPARK PLUG (CR10E) | NGK

09482-00460

$6.47

13-6

SPARK PLUG (U22ESR-N) | OPT

09482-00515

$5.97

13-6

SPARK PLUG (U22ESR-N) | DENSO

09482-00515

$5.97

13-7

SPARK PLUG (U27ESR-N) | OPT

09482-00459

$6.09

13-7

SPARK PLUG (U27ESR-N) | DENSO

09482-00459

$6.09

13-8

SPARK PLUG (U31ESR-N) | OPT

09482-00461

$12.62

13-8

SPARK PLUG (U31ESR-N) | DENSO

09482-00461

$12.62

14

COVER THERMOSTAT

17661-29F10

$45.38

15

THERMOSTAT WATER This part replaces 17670-33400.

17670-33401

$35.61

16

BOLT

01547-0616A

$2.03

17

UNION BOLT,AIR VENT

17568-50F00

$4.76

18

GASKET (6.4X11.5X0.84)

09168-06026

$3.10

19

PIPE INTAKE This part replaces 13111-29F10.

13111-29F11

$13.75

20

.CLAMP

09402-58208

$5.36

21

.CLAMP (L:25)

09402-52208

$5.36

22

BOLT (10X50)

09103-10235

$5.65

23

NUT (M10)

09159-10115

$3.55

24

BOLT (8X9.5)

09103-08421

$4.12

25

GASKET (8.2X14X1)

09168-08016

$1.65
