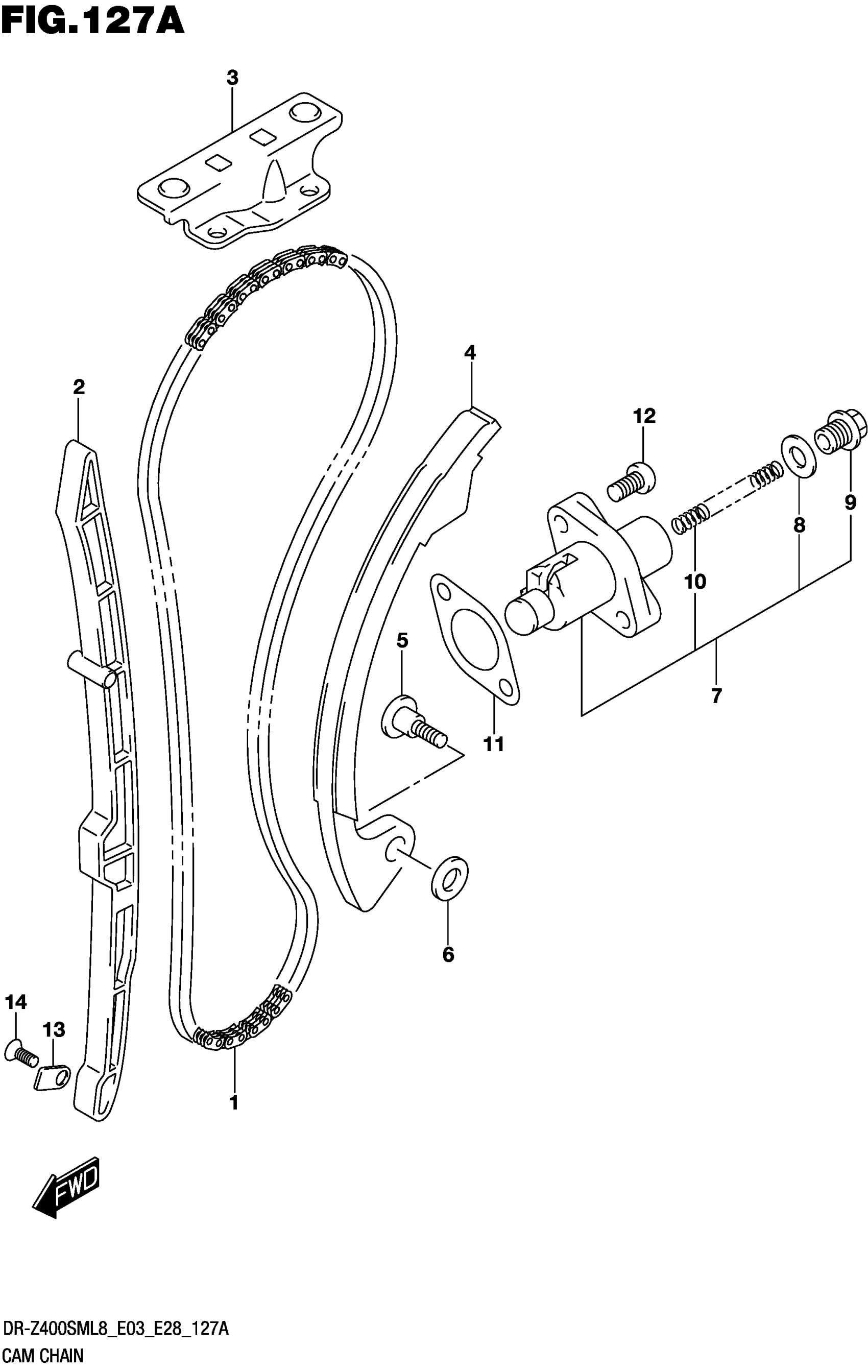

Suzuki DR-Z400SML8 (2018) CAM CHAIN Diagram

#

Description
Price

1

CHAIN CAMSHAFT DRIVE

12760-29F01

$97.22

2

GUIDE CAM CHAIN NO.1

12771-29F00

$33.46

3

GUIDE CAM CHAIN NO.2

12782-29F00

$29.30

4

TENSIONER CAM CHAIN This part replaces 12811-29F10.

12811-29F11

$41.73

5

BOLT,CAM CHAIN TENSIONER

12812-35C00

$8.73

6

WASHER

08211-06181

$1.80

7

ADJUSTER ASSY TENSIONER

12830-29F10

$140.02

8

.GASKET,TENSIONER ADJUSTER

12837-24F10

$4.78

9

.PLUG

12833-05A00

$16.28

10

.SPRING

12831-39F00

$5.77

11

.GASKET,TENSIONER ADJUSTER

12837-24A10

$3.25

12

BOLT (6X25)

07130-0625A

$2.62

13

RETAINER CAM CHAIN GUIDE NO.1

12773-24F00

$4.02

14

SCREW (6X12)

09126-06011

$2.03
