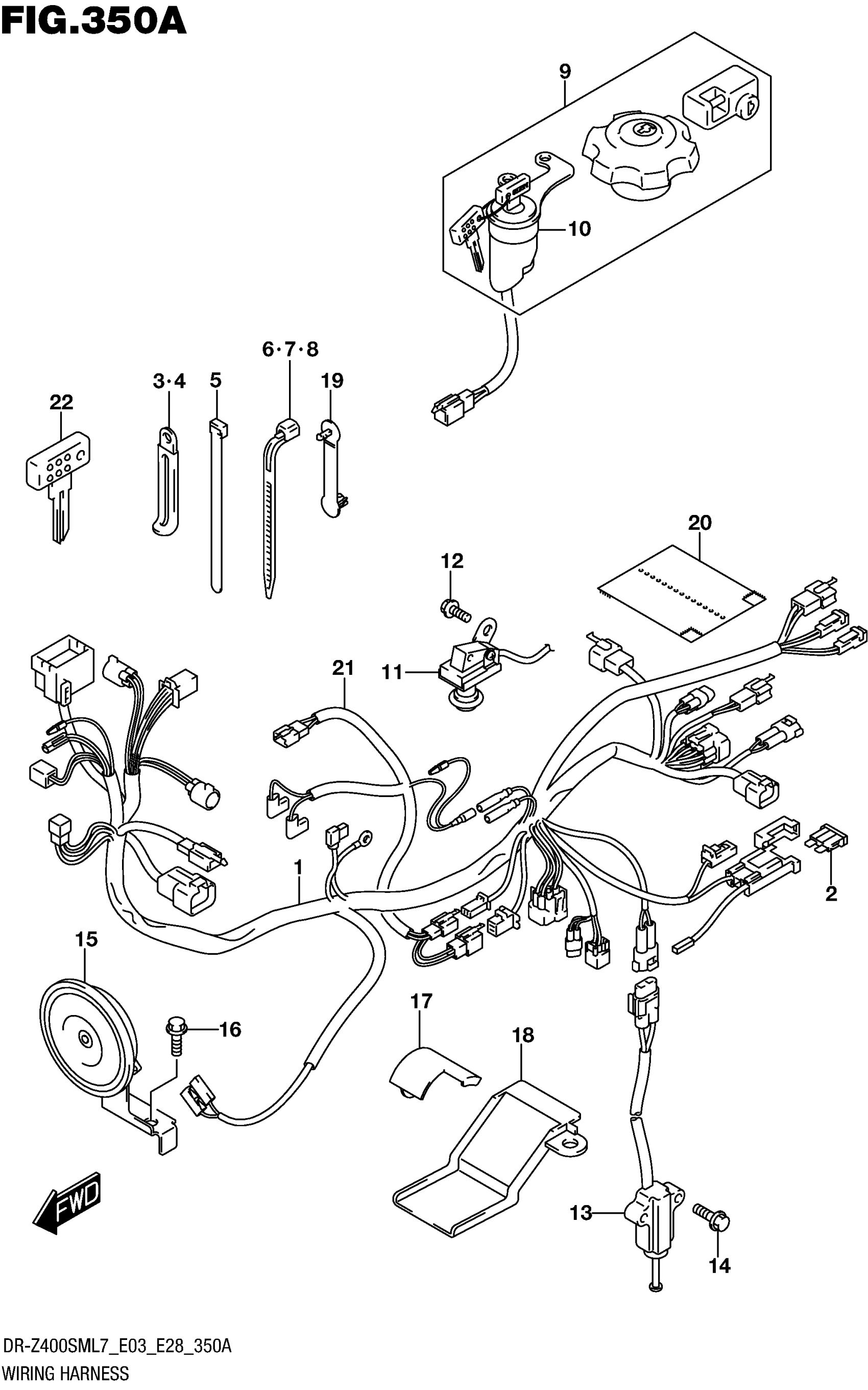

Suzuki DR-Z400SML7 (2017) WIRING HARNESS (DR-Z400SML7 E03) Diagram

#

Description
Price

1

HARNESS WIRING This part replaces 36610-29FF0.

36610-29FF1

$324.00

2

.FUSE (20A)

09481-20101

$2.12

3

CLAMP (L:45)

09404-06429

$1.83

4

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

5

CLAMP (L:145)

09407-14407

$3.57

6

CLAMP (L:125)

09407-14403

$2.26

7

CLAMP (L:165)

09407-18402

$2.19

8

CLAMP (L:235)

09407-25401

$4.66

9

LOCK SET This part replaces 37101-29811.

37101-29814

$157.20

10

SWITCH ASSY,IGN This part replaces 37110-29FA0.

37110-29FA1

$138.97

11

SWITCH ASSY, STOP LAMP

37740-29F00

$110.12

12

SCREW

02162-0608B

$2.53

13

SWITCH ASSY,SID This part replaces 37840-11X50.

37840-11X51

$82.02

14

BOLT

01550-0616A

$1.97

15

HORN ASSY

38500-29F01

$85.15

16

BOLT

01550-0612A

$1.97

17

PROTECTOR, WIRING HARNESS

36611-29F10

Unavailable

18

PROTECTOR, WIRING HARNESS

36611-29F00

$9.00

19

CLAMP, WIRING HARNESS

36651-48E00

$3.25

20

COVER WIRING HARNESS This part replaces 36618-15D20.

36618-15D21

$18.87

21

WIRE, CARBURETOR HEATER | OPT

36856-29F00

Unavailable

22-1

KEY, BLANK (TYPE:C) | OPT

37146-01F00

$9.09

22-2

KEY, BLANK (TYPE:D) | OPT

37146-01F10

$9.09

22-3

KEY, BLANK (TYPE:E) | OPT

37146-01F20

$9.09

22-4

KEY, BLANK (TYPE:F) | OPT

37146-01F30

$11.05
