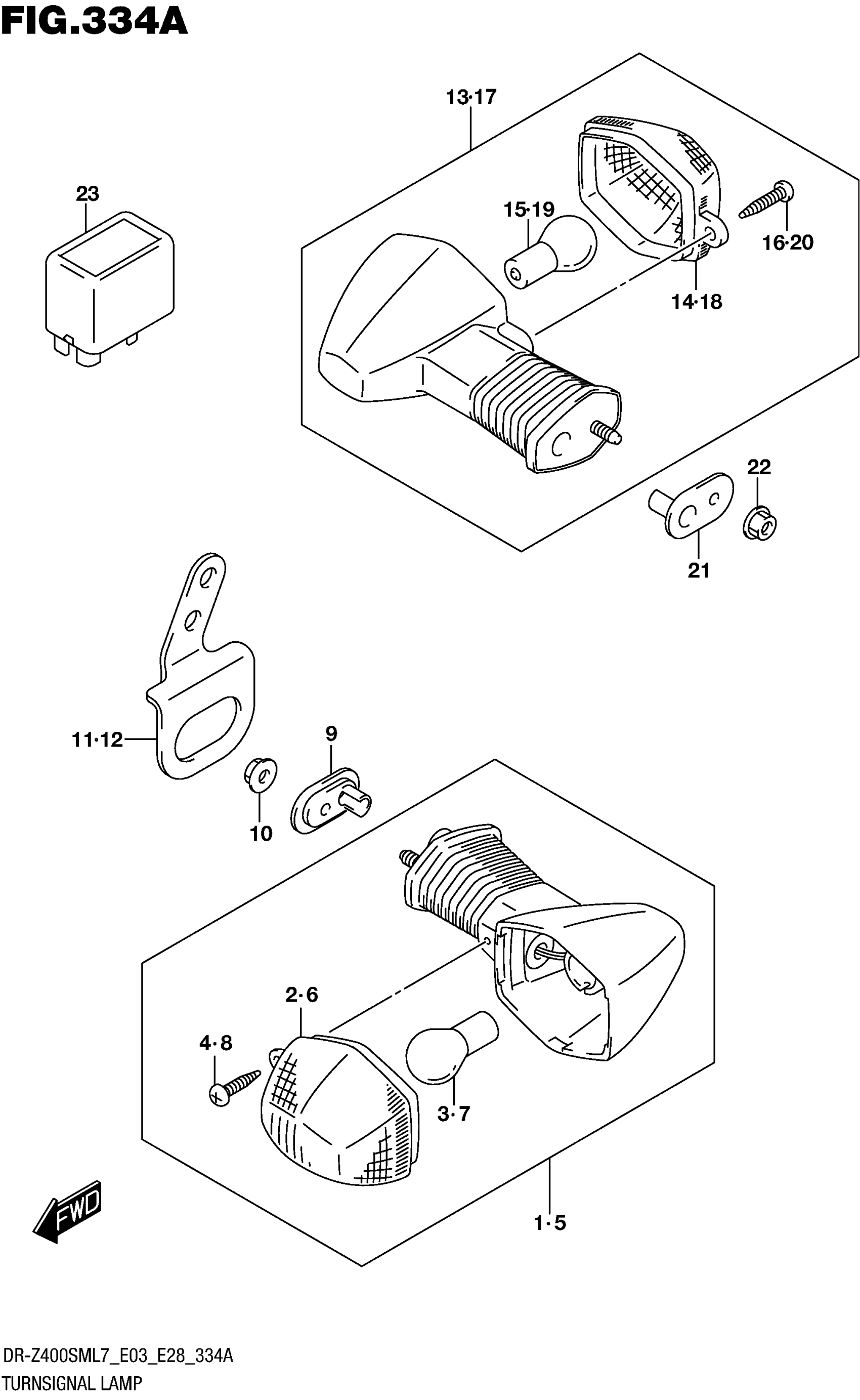

Suzuki DR-Z400SML7 (2017) TURNSIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL R

35601-29FA0

$110.40

2

.LENS

35612-29FA0

$16.23

3

.BULB (12V,21W)

09471-12186

$16.18

4

.SCREW

03242-0416B

$3.18

5

LAMP ASSY, FRONT TURNSIGNAL L

35602-29FA0

$110.40

6

.LENS

35632-29FA0

$16.23

7

.BULB (12V,21W)

09471-12186

$16.18

8

.SCREW

03242-0416B

$3.18

9

PLATE,TURNSIGNAL LAMP

35629-31F40

$4.14

10

NUT

08316-1005A

$2.19

11

BRACKET, FRONT TURNSIGNAL RH

35671-29F00

$5.85

12

BRACKET, FRONT TURNSIGNAL LH

35681-29F00

$6.02

13

LAMP ASSY, REAR TURNSIGNAL RH

35603-29FA0

$113.57

14

.LENS

35632-29FA0

$16.23

15

.BULB (12V,21W)

09471-12186

$16.18

16

.SCREW

03242-0416B

$3.18

17

LAMP ASSY, REAR TURNSIGNAL LH

35604-29FA0

$80.54

18

.LENS

35612-29FA0

$16.23

19

.BULB (12V,21W)

09471-12186

$16.18

20

.SCREW

03242-0416B

$3.18

21

PLATE,TURNSIGNAL LAMP

35629-31F40

$4.14

22

NUT

08316-1005A

$2.19

23

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$81.99
