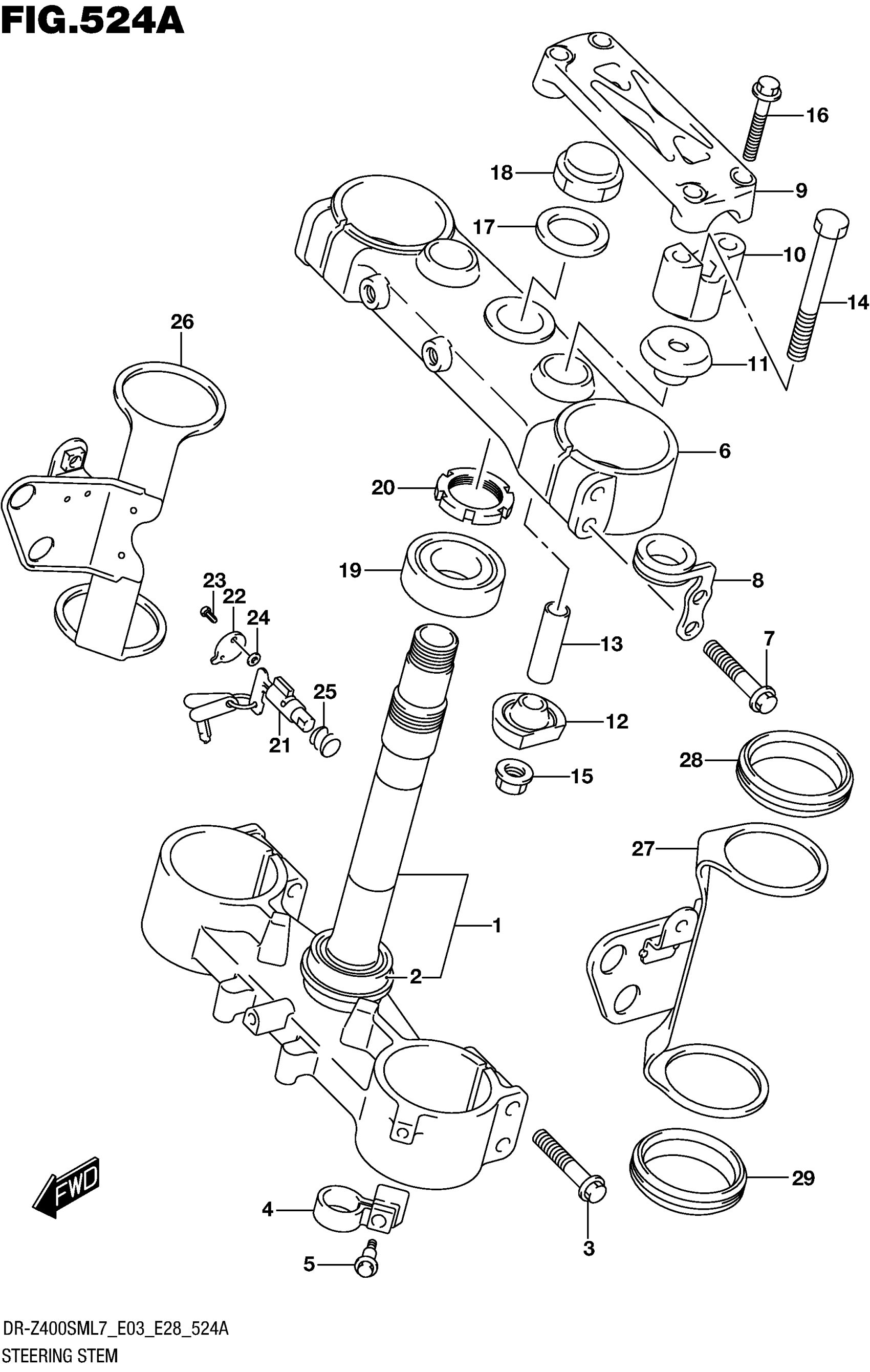

Suzuki DR-Z400SML7 (2017) STEERING STEM Diagram

#

Description
Price

1

BRACKET, FRONT FORK UNDER

51410-29F70

$1,008.97

2

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$46.72

3

BOLT

51166-35F00

$7.50

4

GUIDE, FR BRAKE HOSE

58621-29F00

$14.63

5

BOLT (6X20.5)

09111-06087

$2.71

6

BRACKET, UPPER

51311-29F70

$474.13

7

BOLT

51166-35F00

$7.50

8

GUIDE, CABLE

51280-29F00

$26.48

9

HOLDER, HANDLE, UPPER

56211-29FA0

$96.30

10

HOLDER, HANDLE, UNDER

56221-35G00

$58.13

11

CUSHION RUBBER UPPER This part replaces 56241-42AE0.

56241-42AE1

$29.29

12

CUSHION RUBBER UNDER This part replaces 56242-28C60.

56242-28C61

$28.58

13

SPACER

56243-42A00

$8.03

14

BOLT

56321-35G00

$5.58

15

NUT

08319-31107

$2.73

16

BOLT, HANDLE HOLDER

51166-35F00

$7.50

17

WASHER,STEM HEAD

51356-29E00

$15.29

18

NUT, STEM HEAD

51353-27G00

$33.80

19

.BEARING (30X52X16) This part replaces 09265-30014.

09265-30035

$46.72

20

NUT STEERING

51631-28E00

$28.88

21

LOCK ASSY, STEERING

51900-29F00

$207.90

22

CAP, STEERING LOCK

51912-29F00

$6.23

23

PIN, STEERING LOCK

51913-29F00

$5.02

24

WASHER, STEERING LOCK

51914-29F00

$4.82

25

SPRING, STEERING LOCK

51931-29F00

$4.33

26

BRACKET, HEADLAMP HSG RH

51530-29F10

$61.13

27

BRACKET, HEADLAMP HSG LH

51540-29F10

$61.13

28

DAMPER, UPPER

51553-29F10

$10.55

29

DAMPER, LOWER

51553-29F20

$10.55
