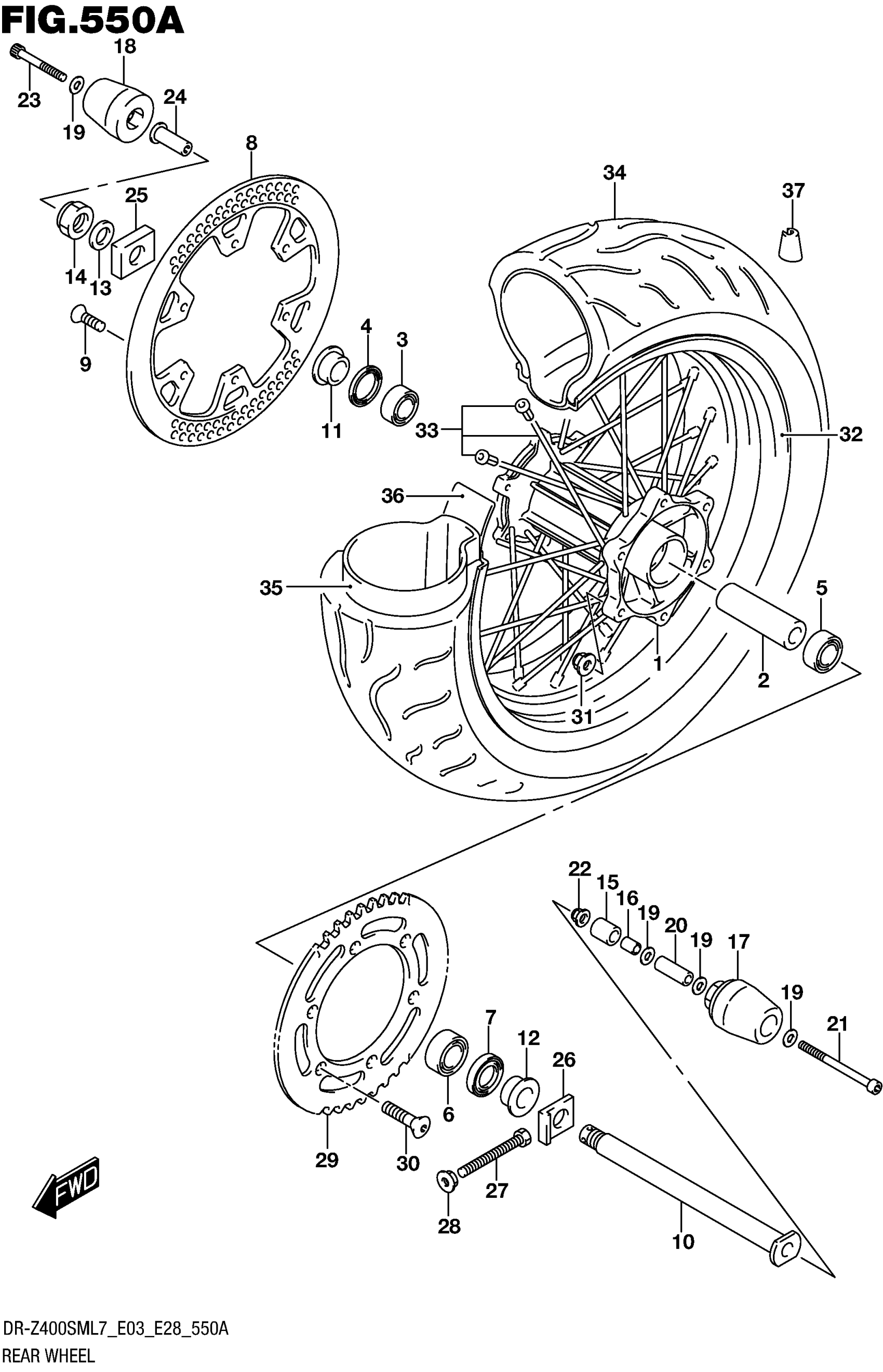

Suzuki DR-Z400SML7 (2017) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL

64111-29F10

$472.30

2

SPACER, BEARING

64731-29F00

$31.80

3

BEARING

08133-60047

$25.82

4

SEAL (29X42X6) This part replaces 64841-28E00.

64841-28E01

$7.89

5

BEARING

08133-60047

$25.82

6

BEARING This part replaces 08123-62047.

08123-6204B

$17.41

7

OIL SEAL (29X47X6)

09283-29006

$11.53

8

DISC, REAR BRAKE

69211-29F00

$318.25

9

SCREW (6X18)

09120-06014

$2.45

10

AXLE, REAR

64711-29F40

$124.75

11

SPACER, RH

64751-28E20

$27.30

12

SPACER, LH

64751-28E20

$27.30

13

WASHER (19X32X3.2)

09160-19022

$4.90

14

NUT

08319-2118A

$4.90

15

EXPANDER, AXLE SLIDER

54744-29F00

$5.87

16

SPACER (5.5X8X10.5)

09180-05048

$2.03

17

SLIDER, RR AXLE, L

64755-29F00

$31.27

18

SLIDER, AXLE

54755-29F00

$26.22

19

WASHER (5.5X12X0.8)

09160-05029

$1.61

20

SPACER (5.5X9.5X26)

09180-05060

$5.60

21

BOLT (5X65)

09106-05021

$6.47

22

NUT

08316-2005B

$2.80

23

BOLT

07130-0540A

$3.02

24

NUT

09159-05050

$9.38

25

ADJUSTER, CHAIN RH

61445-29F00

$40.45

26

ADJUSTER, CHAIN LH

61446-29F00

$39.68

27

BOLT (8X50)

09100-08287

$3.10

28

NUT

09159-08034

$1.62

29

SPROCKET, REAR (NT:44)

64511-14E00

$72.18

30

BOLT (8X30.5)

09120-08010

$2.36

31

NUT

08319-3108A

$2.32

32

RIM,RR WHEEL 17 This part replaces 65311-29F60.

65311-37L10-Q19

$534.90

32

RIM,RR WHEEL 17 This part replaces 65311-29F60.

65311-37L10-Q19

$534.90

33

SPOKE ASSY, REAR WHEEL

65320-29F30

$115.74

34

TIRE REAR | D208 SM This part replaces 65110-29FA0.

65110-29FA1

$343.02

34

TIRE REAR | DUNLOP This part replaces 65110-29FA0.

65110-29FA1

$343.02

35

TUBE ASSY, WHEEL INNER

65200-29FA0

$48.13

36

PROTECTOR, INNER TUBE

65261-29FA0

$7.12

37-1

BALANCER, WHEEL (20G)

55412-41F00

$8.12

37-2

BALANCER WHEEL (30G)

55413-41F00

$7.50
