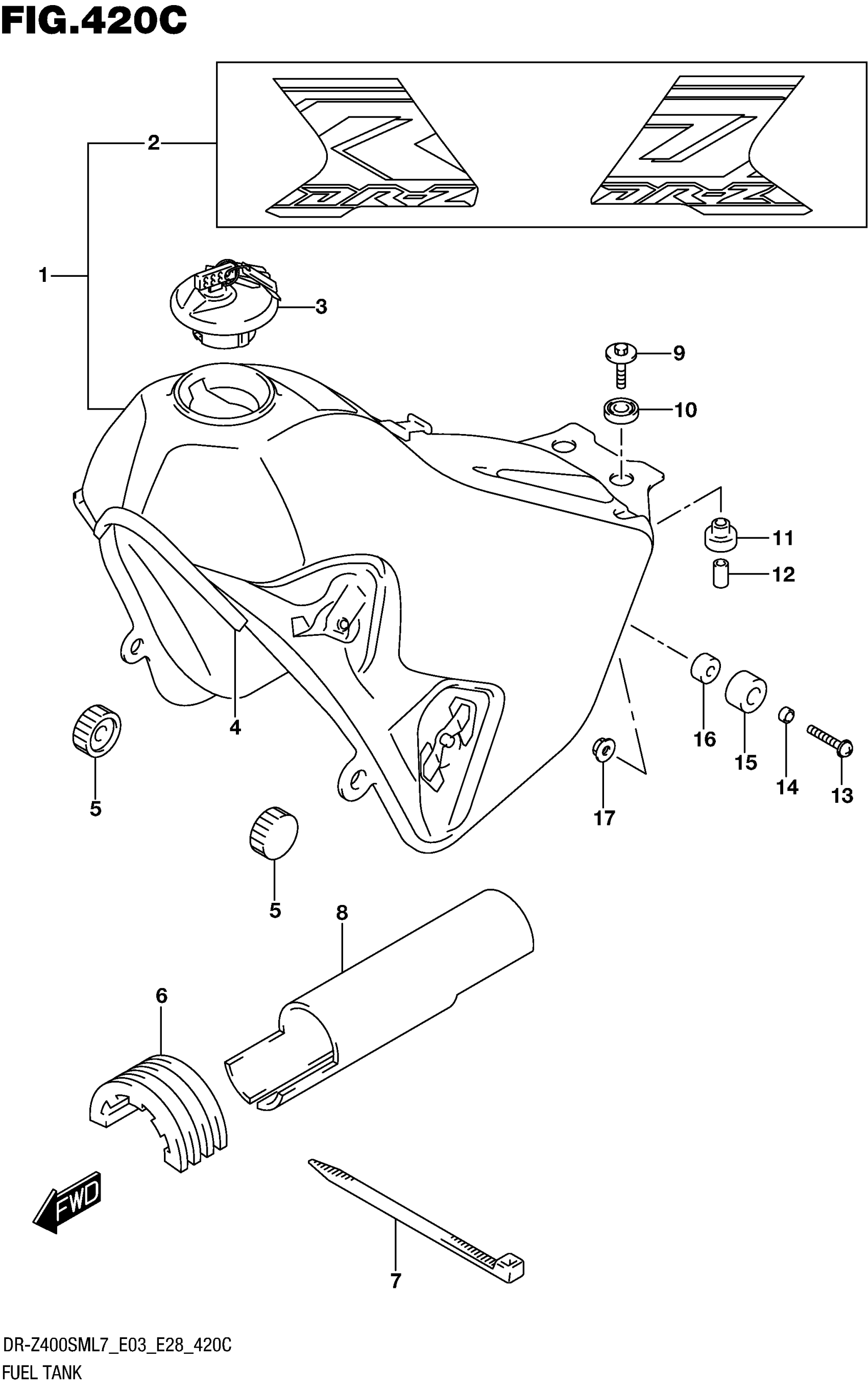

Suzuki DR-Z400SML7 (2017) FUEL TANK (DR-Z400SML7 E33) Diagram

Description

Price

TANK ASSY, FUEL (WHITE)

49200-29FK1-30H

$1,003.62

.TAPE SET, FUEL TANK

68120-29FA0-BCN

$55.57

CAP SET,FUEL TA This part replaces 44200-05820.

44200-05822

$80.85

MOLDING, FRONT

68241-04X50-300

$6.89

CUSHION

09329-10016

$2.80

CUSHION, UPPER

44541-29F00

$39.00

CLAMP (L:300)

09407-30402

$3.76

SHIELD, FUEL TANK

44194-29F00

Unavailable

BOLT (6X30)

09116-06214

$2.50

CUSHION | UPPER

09320-14022

$3.28

CUSHION (9X24X18) | LOWER This part replaces 09320-10020.

09320-10071

$2.71

SPACER (6.5X9X18)

09180-06271

$2.17

SCREW

02112-1630B

$3.37

SPACER (6.5X20X9)

09180-06215

$8.63

CUSHION, SIDE

45149-14D00

$7.48

SPACER (6.5X9X5)

09180-06306

$2.06

NUT

08319-3106B

$2.47
