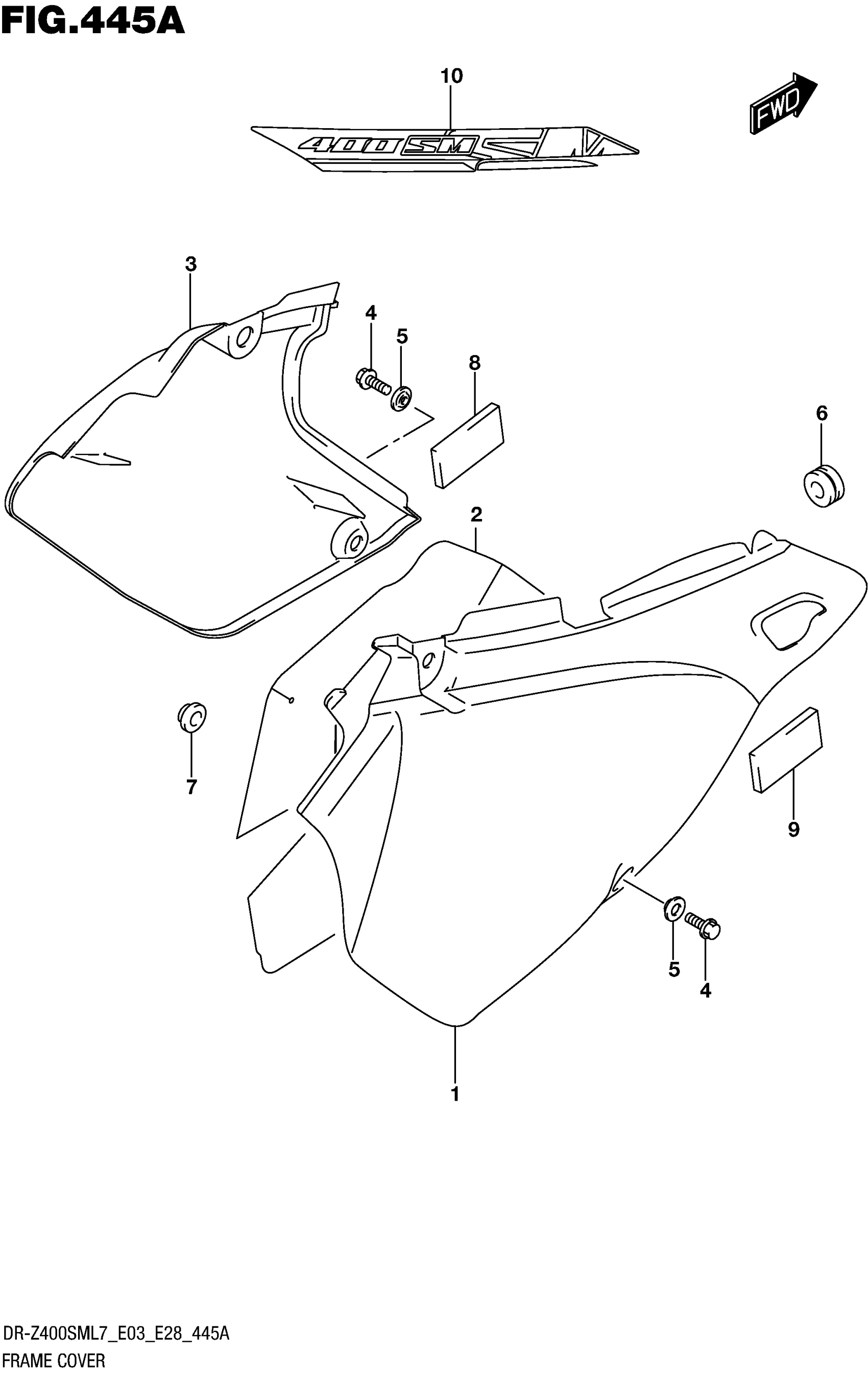

Suzuki DR-Z400SML7 (2017) FRAME COVER (DR-Z400SML7 E03) Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE)

47111-29FC0-30H

$57.40

2

SHIELD, FRAME COVER RH

47166-29F00

$82.92

3

COVER, FRAME LH (WHITE)

47211-29FA0-30H

$57.40

4

BOLT (6X12)

09103-06273

$2.26

5

WASHER This part replaces 09169-06031.

09169-06041

$2.20

6

CUSHION

09320-06504

$4.96

7

CUSHION

09321-10018

$5.45

8

CUSHION, LH COVER FRONT

47161-29F00

$6.11

9

CUSHION, RH COVER FRONT

71762-65G10

$8.28

10

TAPE,FRAME COVE This part replaces 68135-29FM0-BCQ.

68135-29FM1-BCQ

$30.62
