Description

Price

1

CRANKSHAFT ASSY

12200-33H00

$932.00

2

.CONNECTING ROD

12160-29F10-0B0

$211.82

3

.PIN, CRANK

12210-29F20

$99.63

4

.BEARING (35X43X22)

09263-35047-0B0

$107.22

5

.CRANKSHAFT, RH

12221-07G01

Unavailable

6

.CRANKSHAFT, LH

12261-07G00

Unavailable

7

GEAR, CRANK BALANCER DRIVE

12661-29F00

$144.45

7

(NT:35)

12661-29F00

$144.45

8

PIN (5X8)

09261-05005

$1.49

9

BEARING (30X72X18)

09262-30100

$88.92

10

OIL SEAL (14X24X6) | RH

09282-14003

$8.24

11

RETAINER, OIL SEAL RH

24742-18A00

$4.35

12

SCREW

02112-0612A

$1.49

13

SPROCKET, CAM CHAIN DRIVE

12731-29F10

$62.32

13

(NT:17)

12731-29F10

$62.32

14

GEAR, PRIMARY DRIVE (NT:25)

21111-29F10

$81.22

15

NUT

09140-18012

$8.37

16

WASHER

09164-18008

$4.19

17

KEY

09421-05002

$3.96

18

PISTON

12111-29F00-0F0

$160.16

19

RING SET, PISTON

12140-29F00

$57.78

20

PIN, PISTON

12151-24F10

$19.86

21

SNAP RING

09381-20004

$1.65

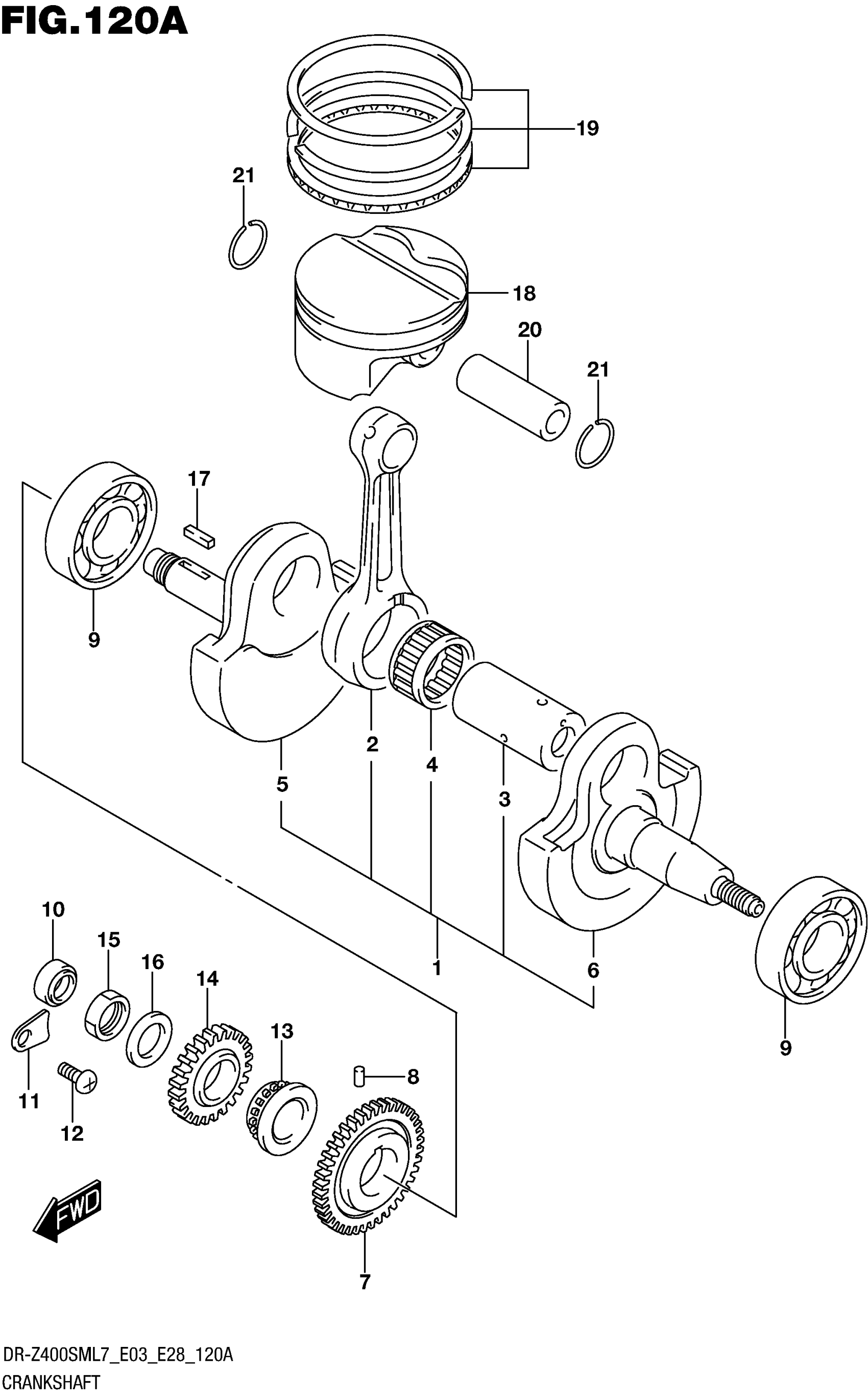

Suzuki DR-Z400SML7 (2017) CRANKSHAFT Diagram
