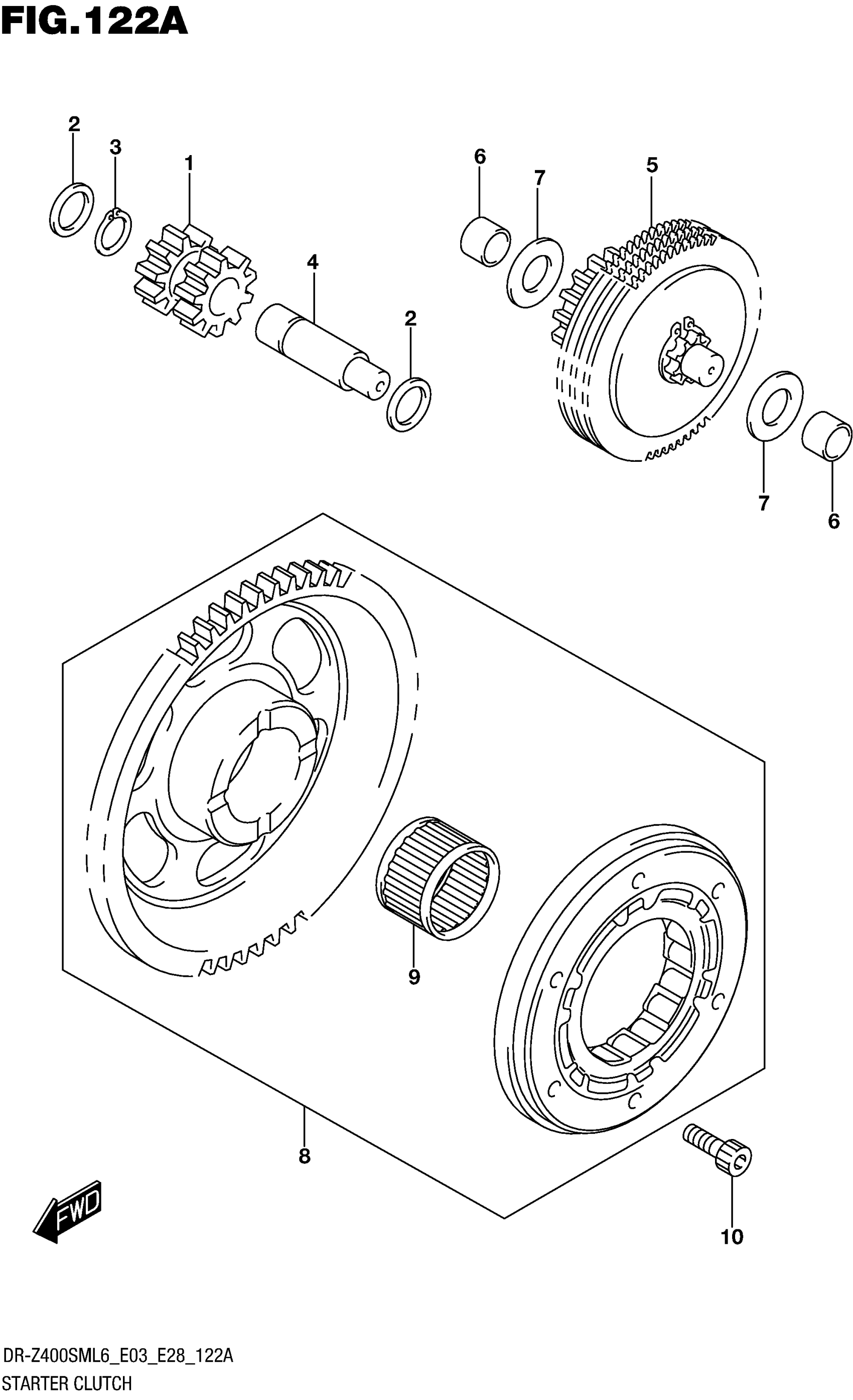

Suzuki DR-Z400SML6 (2016) STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, STARTER IDLE NO.1

12611-29F00

$59.87

1

(NT:11)

12611-29F00

$59.87

2

SHIM (12X18X0.5)

09181-12130

$2.06

3

CIRCLIP

08331-3112A

$1.78

4

PIN, STARTER IDLE GEAR NO.1

12615-29F00

$20.85

5

LIMITER ASSY, STARTER IDLE

12600-29F00

$284.18

5

GEAR (NT:67)

12600-29F00

$284.18

6

BUSH LIMITER GEAR SHAFT

12618-31D01

$22.62

7

WASHER

08211-10221

$2.28

8

CLUTCH SET, STARTER (NT:62)

12600-29810

$233.93

9

.BEARING (25X31X19)

09263-25049

$28.61

10

BOLT (6X16)

09106-06073

$2.39
