2016 Suzuki DR-Z400SML6 Seat Diagram

← All diagrams

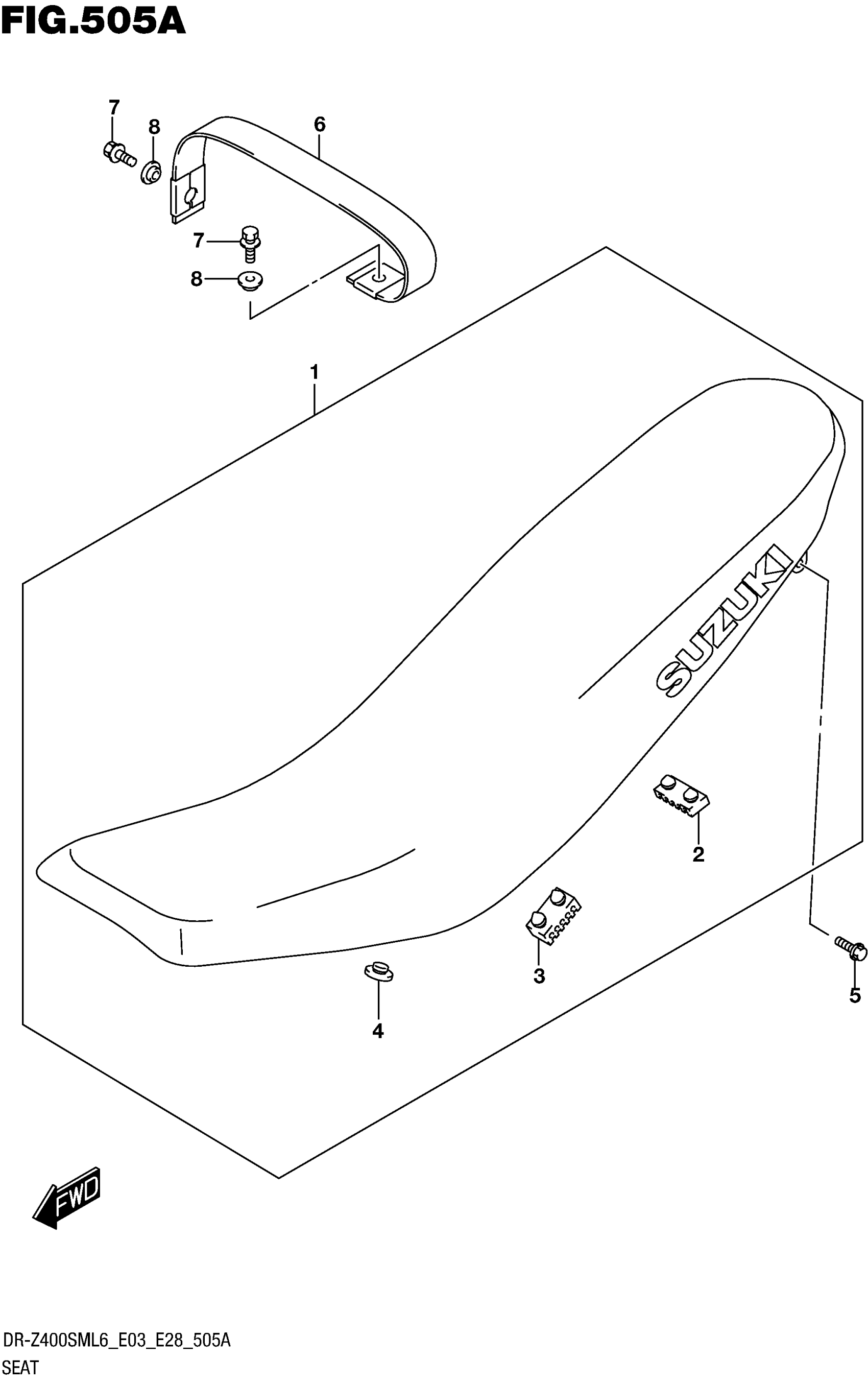

Find the part on the Seat diagram for your 2016 Suzuki DR-Z400SML6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2016 Suzuki DR-Z400SML6 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY (GRAY BLACK SILVER) This part replaces 45100-29FE0-BYD.

45100-29FE1-BYD

1
Out of stock

2

.CUSHION (40X20X6)

45149-12C00

2

$7.48

In stock

2

(FRONT/REAR)

45149-12C00

1

$7.48

In stock

3

.CUSHION (40X20X15)(CENTER)

45149-31300

4
Out of stock

4

CUSHION

09321-10022

2
Out of stock

5

BOLT (6X20)

09116-06182

2
Out of stock

6

BAND,SEAT This part replaces 45180-29F00-T5N.

45180-29F01-T5N

1
Out of stock

7

BOLT (6X25)

09116-06150

2
Out of stock

8

WASHER

09169-06063

2
Out of stock
