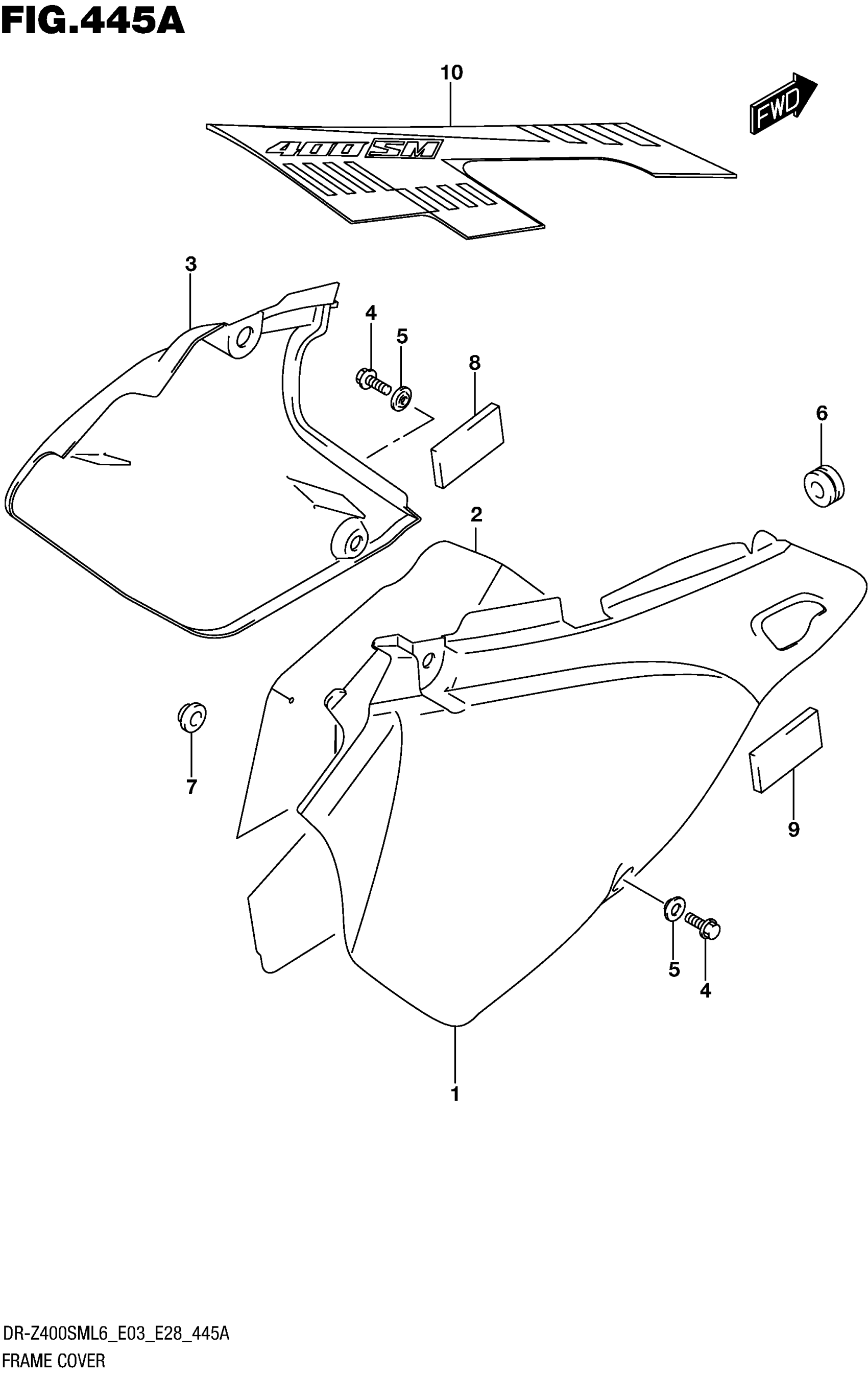

Suzuki DR-Z400SML6 (2016) FRAME COVER (DR-Z400SML6 E03) Diagram

#

Description
Price

1

COVER, FRAME RH (GRAY)

47111-29FC0-YUD

$95.18

2

SHIELD, FRAME COVER RH

47166-29F00

$93.58

3

COVER, FRAME LH (GRAY)

47211-29FA0-YUD

$68.05

4

BOLT (6X12)

09103-06273

$2.24

5

WASHER This part replaces 09169-06031.

09169-06041

$1.97

6

CUSHION

09320-06504

$4.47

7

CUSHION

09321-10018

$4.19

8

CUSHION, LH COVER FRONT

47161-29F00

$8.12

9

CUSHION, RH COVER FRONT

71762-65G10

$9.35

10

TAPE, FRAME COVER, RH

68135-29FJ0-A81

$37.78
