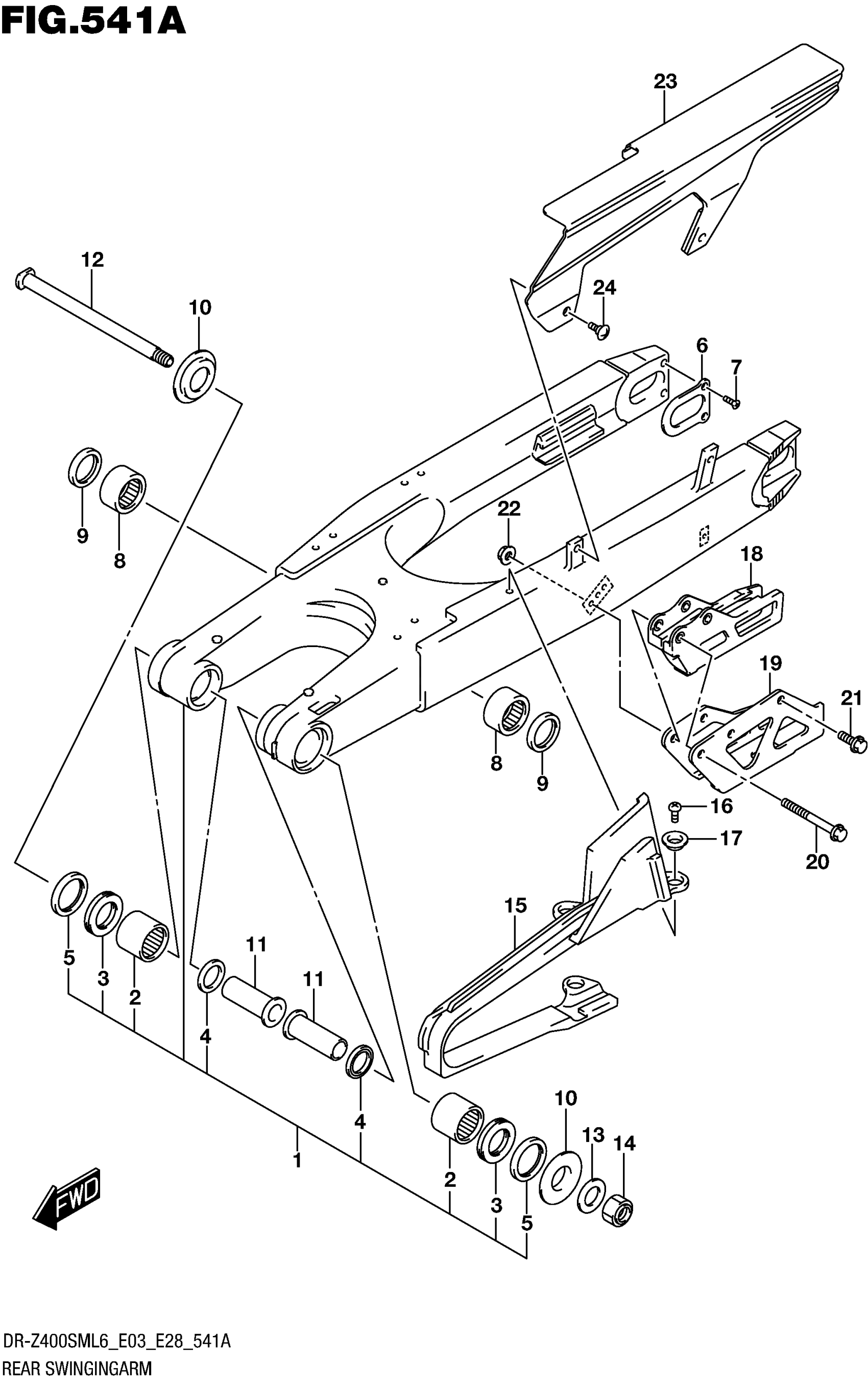

Suzuki DR-Z400SML6 (2016) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM ASSY RR This part replaces 61000-29F70.

61000-29F71

$1,974.50

2

.BEARING (22X29X30)

09263-22017

$22.58

3

.BEARING (22X35X2)

09263-22064

$27.72

4

.SEAL,OIL (21X29X4) | INNER This part replaces 09285-22001.

09285-22006

$3.83

5

.SEAL, OUTER (29.2X37X4)

61262-36E00

$6.93

6

.PLATE, AXLE

61128-29F70

$122.88

7

.SCREW (5X10)

09120-05003

$1.91

8

.BEARING (20X27X15)

09263-20086

$16.47

9

.SEAL, ROD (19X27X4)

62624-14500

$6.01

10

SPACER, PIVOT OUTER

61250-44E00

$19.57

11

SPACER, PIVOT INNER

61252-36E00

$53.92

12

SHAFT, PIVOT

61211-29F00

$82.02

13

WASHER

08322-0116B

$2.70

14

NUT

09159-16007

$12.61

15

BUFFER, CHAIN TOUCH DEFENSE

61273-29F20

$66.14

16

SCREW

02112-0508B

$1.86

17

WASHER

09169-05022

$3.55

18

GUIDE, CHAIN

61341-35G00

$48.05

19

PLATE, CHAIN GUIDE OUTER

61342-37F00

$66.30

20

BOLT

01547-0650A

$2.46

21

BOLT

01547-0612A

$2.03

22

NUT

08319-3106A

$2.03

23

CASE, CHAIN

61310-34E00

$94.72

24

SCREW (6X16)

09139-06083

$2.26
