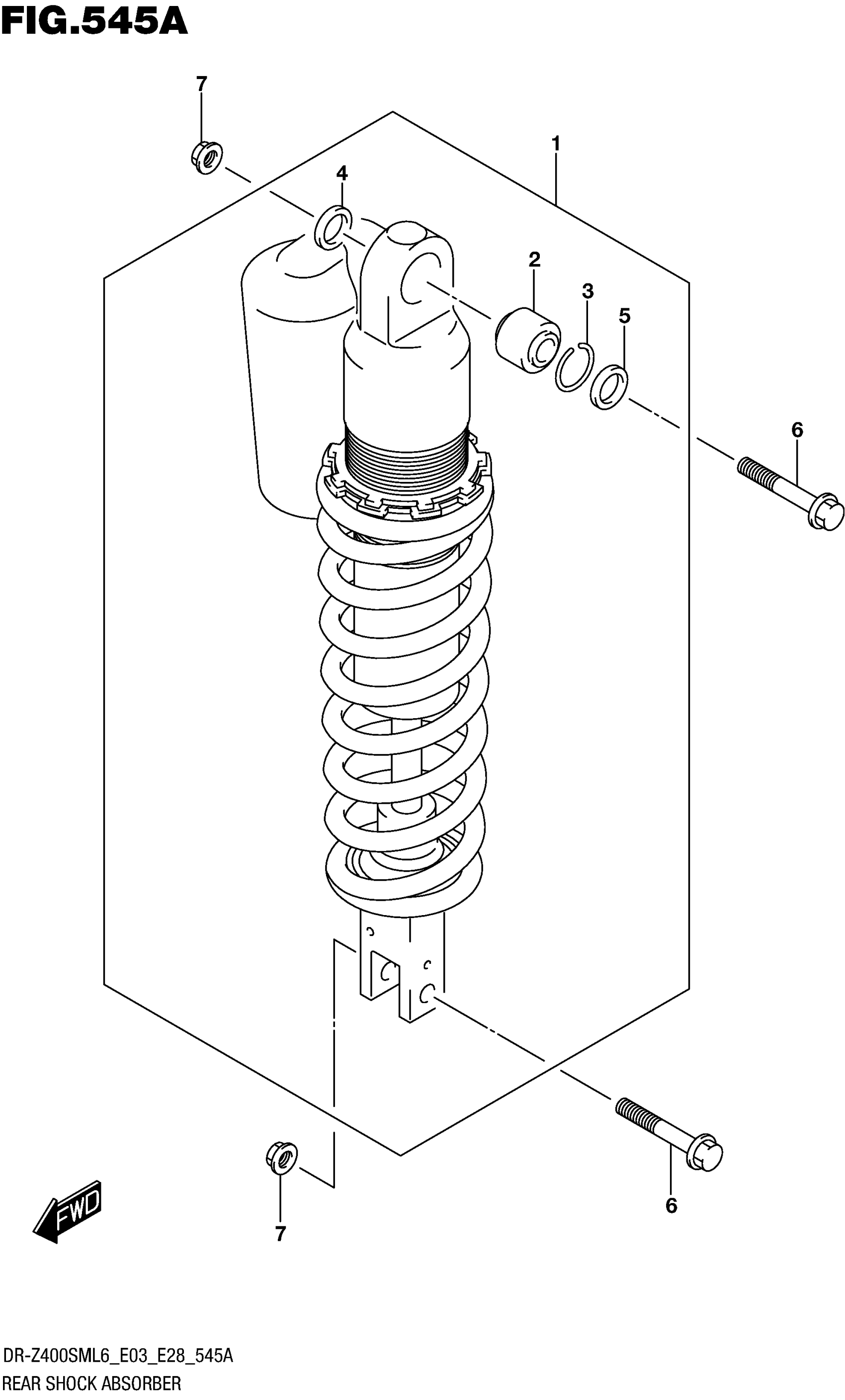

Suzuki DR-Z400SML6 (2016) REAR SHOCK ABSORBER Diagram

#

Description

Price

1

ABSORBER ASSY, REAR SHOCK

62100-29FP0-019

Unavailable

1

(BLACK)

62100-29FP0-019

Unavailable

2

.BEARING (10X26X22)

62175-36E00

$102.82

3

.RING

62277-27C40

$3.95

4

.SEAL, DUST RH

62226-36E00

$10.12

5

.SEAL, DUST LH

62226-36E10

$10.32

6

BOLT (10X47.5)

09103-10149

$3.70

7

NUT

09159-10115

$3.55
