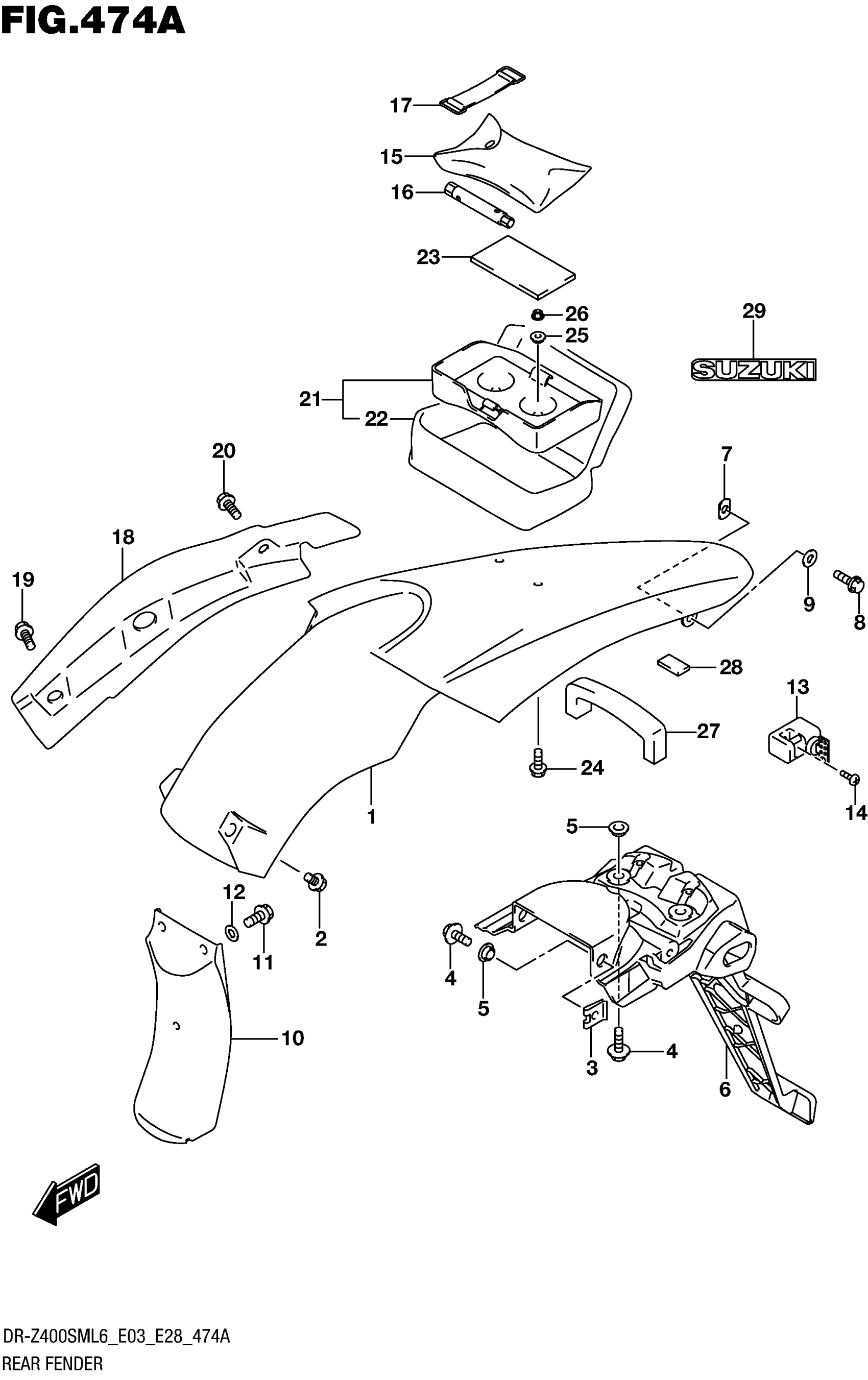

Suzuki DR-Z400SML6 (2016) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (GRAY)

63113-29FA0-YUD

$119.30

2

BOLT (6X16)

09113-06001

$2.73

3

PLATE, REAR FENDER

63312-13E01

$7.72

4

BOLT (6X20)

09116-06115

$1.97

5

WASHER

09169-06073

$3.42

6

EXTENSION, REAR FENDER

63311-29FA1

$92.70

7

NUT COWL

94484-24F00

$4.03

8

BOLT

01550-0512B

$2.87

9

WASHER

09169-05024

$2.06

10

MUDGUARD, RR FENDER FR

63411-29F00

$24.30

11

BOLT

01547-0616B

$2.45

12

WASHER This part replaces 09169-06045.

09169-06055

$2.27

13

LOCK SET HELMET

95700-41821

$152.77

14

SCREW (6X14)

09139-06089

$3.03

15

TOOL ASSY This part replaces 09800-21042.

09800-21092

$90.00

16

SPANNER, BOX (8X10)

09816-00186

$17.12

17

BAND

09462-00008

$4.77

18

MUDGUARD, REAR FENDER RH

63114-29F00

$36.68

19

BOLT (6X18) | LOWER

09111-06081

$4.09

20

BOLT (6X12)

09111-06107

$2.60

21

BAG, SEAT TAIL

94900-29FB1

$169.10

22

.BAG

94910-29FB0

$104.18

23

CUSHION

94915-44E00

$12.65

24

BOLT

01550-0620B

$2.39

25

WASHER

09169-06063

$3.37

26

NUT

09159-06078

$2.62

27

CUSHION, FRONT

47161-29B00

$7.50

28

CUSHION, REAR

33651-37000

$4.48

29

EMBLEM,"SUZUKI" This part replaces 68721-13A00-A83.

68721-13A01-A83

$9.67
