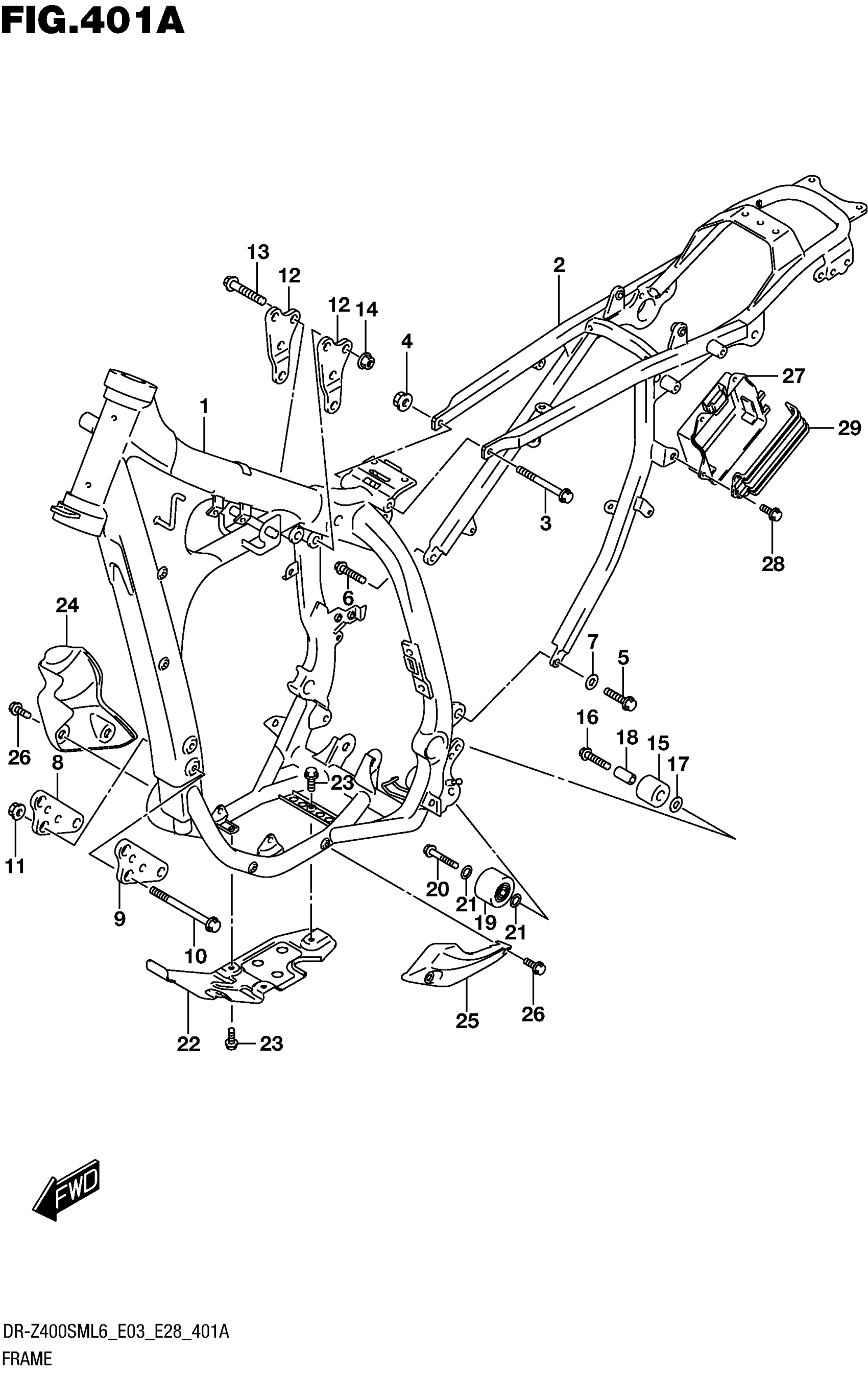

Suzuki DR-Z400SML6 (2016) FRAME Diagram

#

Description
Price

1

FRAME (BLACK) This part replaces 41100-29F60-019.

41100-29F90-019

$2,897.38

2

RAIL, SEAT

41200-29F70

$1,331.42

3

BOLT (8X115)

09103-08098

$3.29

4

NUT

08319-3108A

$2.32

5

BOLT (8X18) | LH

09104-08035

$2.69

6

BOLT (8X20) | RH

09103-08364

$3.20

7

WASHER (8.5X18X2)

09160-08120

$2.19

8

PLATE, ENGINE MOUNT FRONT RH

41911-29F00

Unavailable

9

PLATE, ENGINE MOUNT FRONT LH

41911-29F00

Unavailable

10

BOLT (8X90)

09103-08363

$9.00

11

NUT

08319-3108A

$2.32

12

PLATE, ENGINE MOUNT REAR

41993-29F10

$32.00

13

BOLT (8X50)

09103-08081

$3.72

14

NUT

08319-3108A

$2.32

15

ROLLER CHAIN CONTROL UPR

43911-13E00

$21.84

16

BOLT (8X41)

09103-08083

$3.70

17

WASHER

08211-08201

$2.03

18

SPACER (8.6X12.2X26.5)

09180-08215

$4.19

19

ROLLER, CHAIN LOWER

43910-27C11

$64.67

20

BOLT (8X41)

09103-08083

$3.70

21

SHIM (8X12X1)

09181-08111

$1.93

22

PROTECTOR, ENGINE

42510-29F00

$137.02

23

BOLT

01550-0612A

$1.97

24

GUARD, WATER PUMP

42521-29F00

$20.82

25

GUARD, MAG COVE This part replaces 42531-29F00.

42530-29810

Unavailable

26

BOLT (8X16.5)

09111-08087

$2.76

27

HOLDER, BATTERY

41541-29F00

$67.73

28

BOLT (6X17.8)

09111-06072

$2.03

29

BAND

41561-29F00

$21.09
