2016 Suzuki DR-Z400SML6 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2016 Suzuki DR-Z400SML6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

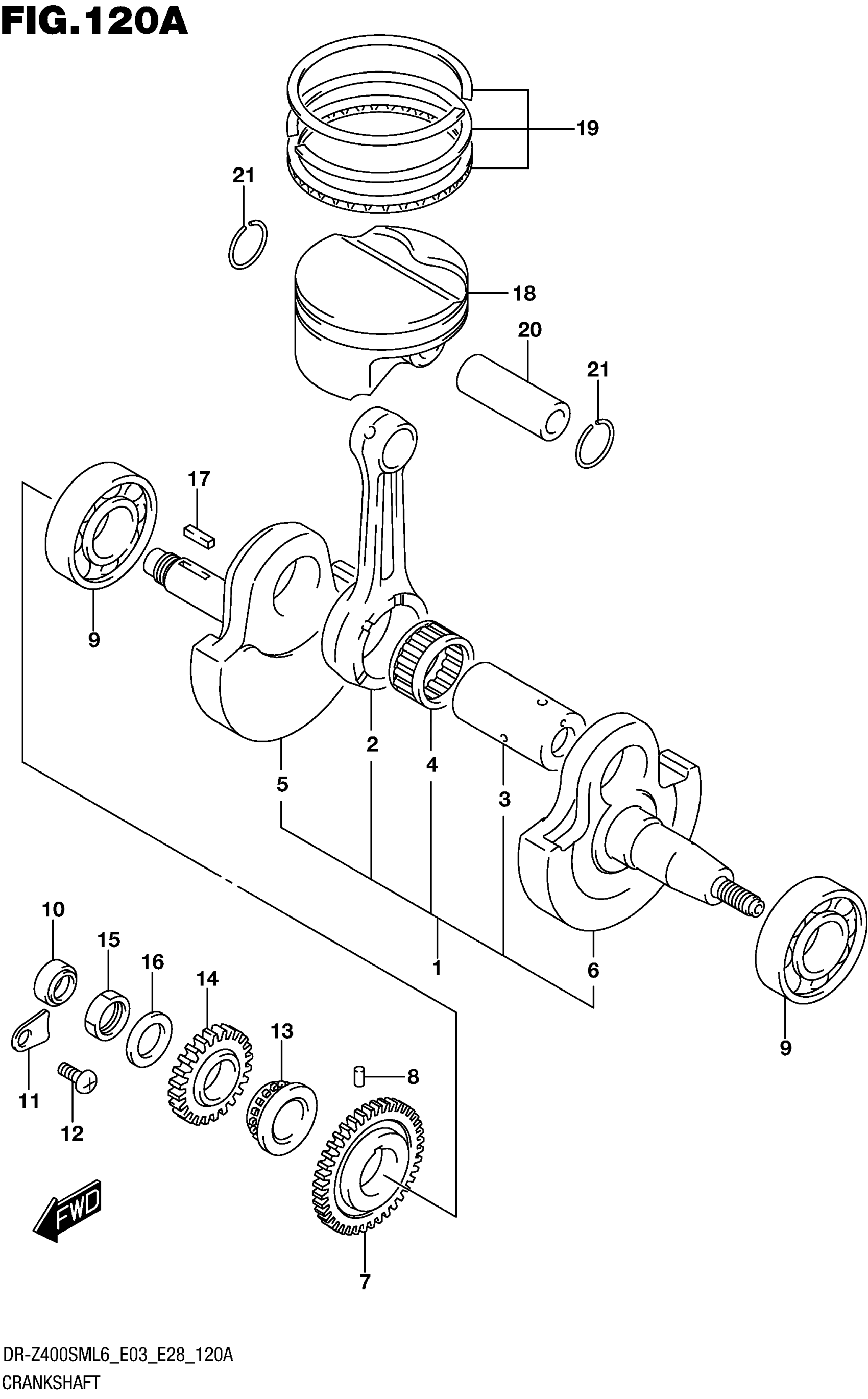

2016 Suzuki DR-Z400SML6 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY

12200-33H00

1

$1,017.55

In stock

2

.CONNECTING ROD

12160-29F10-0B0

1

$235.72

In stock

3

.PIN, CRANK

12210-29F20

1

$112.45

In stock

4

.BEARING (35X43X22)

09263-35047-0B0

1

$116.53

In stock

5

.CRANKSHAFT, RH

12221-07G01

1
Out of stock

6

.CRANKSHAFT, LH

12261-07G00

1
Out of stock

7

1

$162.25

In stock

7

(NT:35)

12661-29F00

1

$162.25

In stock

8

PIN (5X8)

09261-05005

1
Out of stock

9

BEARING (30X72X18)

09262-30100

2

$95.25

In stock

10

1

$7.99

In stock

11

1

$4.92

In stock

11

RH

24742-18A00

1

$4.92

In stock

12

SCREW

02112-0612A

1
Out of stock

13

1

$70.33

In stock

13

(NT:17)

12731-29F10

1

$70.33

In stock

14

1

$91.67

In stock

15

NUT

09140-18012

1

$8.11

In stock

16

WASHER

09164-18008

1

$4.14

In stock

17

KEY

09421-05002

1

$3.84

In stock

18

PISTON

12111-29F00-0F0

1

$158.89

In stock

19

RING SET, PISTON

12140-29F00

1

$57.60

In stock

20

PIN, PISTON

12151-24F10

1

$19.80

In stock

21

SNAP RING

09381-20004

2
Out of stock
