2016 Suzuki DR-Z400SML6 Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 2016 Suzuki DR-Z400SML6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

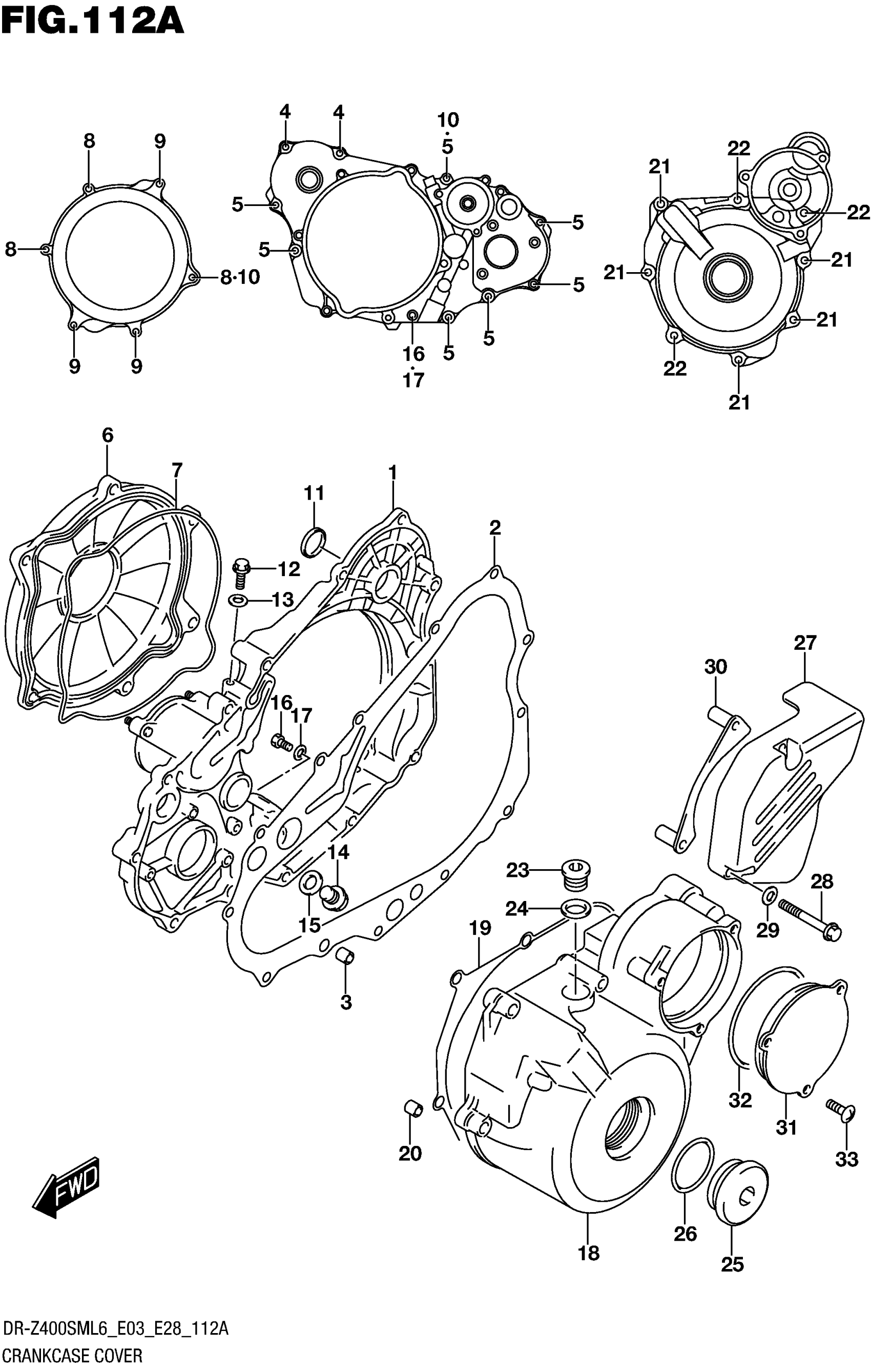

2016 Suzuki DR-Z400SML6 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH INNER

11341-29F50

1

$336.82

In stock

2

1

$17.60

In stock

3

PIN

04211-09149

2
Out of stock

4

BOLT

01547-0620A

2
Out of stock

5

BOLT

01547-0630A

7

$2.48

In stock

6

COVER, CLUTCH OUTER

11371-29F50

1

$158.20

In stock

7

1

$22.49

In stock

8

BOLT

01547-0620A

3
Out of stock

9

BOLT

01547-0655A

3

$2.63

In stock

10

GASKET (5.8X13X1.2)

09168-06023

2
Out of stock

11

1

$8.54

In stock

12

BOLT

01547-0612A

1
Out of stock

13

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

14

PLUG (12X10)

09247-12006

1

$2.92

In stock

15

GASKET (12.1X16.2X3.7)

09168-12002

1
Out of stock

16

BOLT

01550-0610A

1
Out of stock

17

GASKET (6.2X11X1.2)

09168-06004

1
Out of stock

18

COVER, MAGNETO

11351-29F60

1

$243.25

In stock

19

1

$13.33

In stock

20

PIN

04211-09149

2
Out of stock

21

BOLT

01547-0630A

5

$2.48

In stock

22

BOLT

01547-0640A

3
Out of stock

23

PLUG

09248-14011

1
Out of stock

24

GASKET (13.8X18.8X4.8)

09168-14002

1
Out of stock

25

PLUG (SILVER)

09259-36016-20H

1

$13.37

In stock

26

.O-RING (D:3.1,ID:32.7)

09280-33004

1
Out of stock

27

1

$86.12

In stock

28

BOLT

01547-0650A

2
Out of stock

29

WASHER (6.5X14X2.0)

09160-06126

2

$2.07

In stock

30

1

$20.78

In stock

31

1

$36.68

In stock

32

1

$6.67

In stock

33

SCREW

02142-0616A

3
Out of stock
