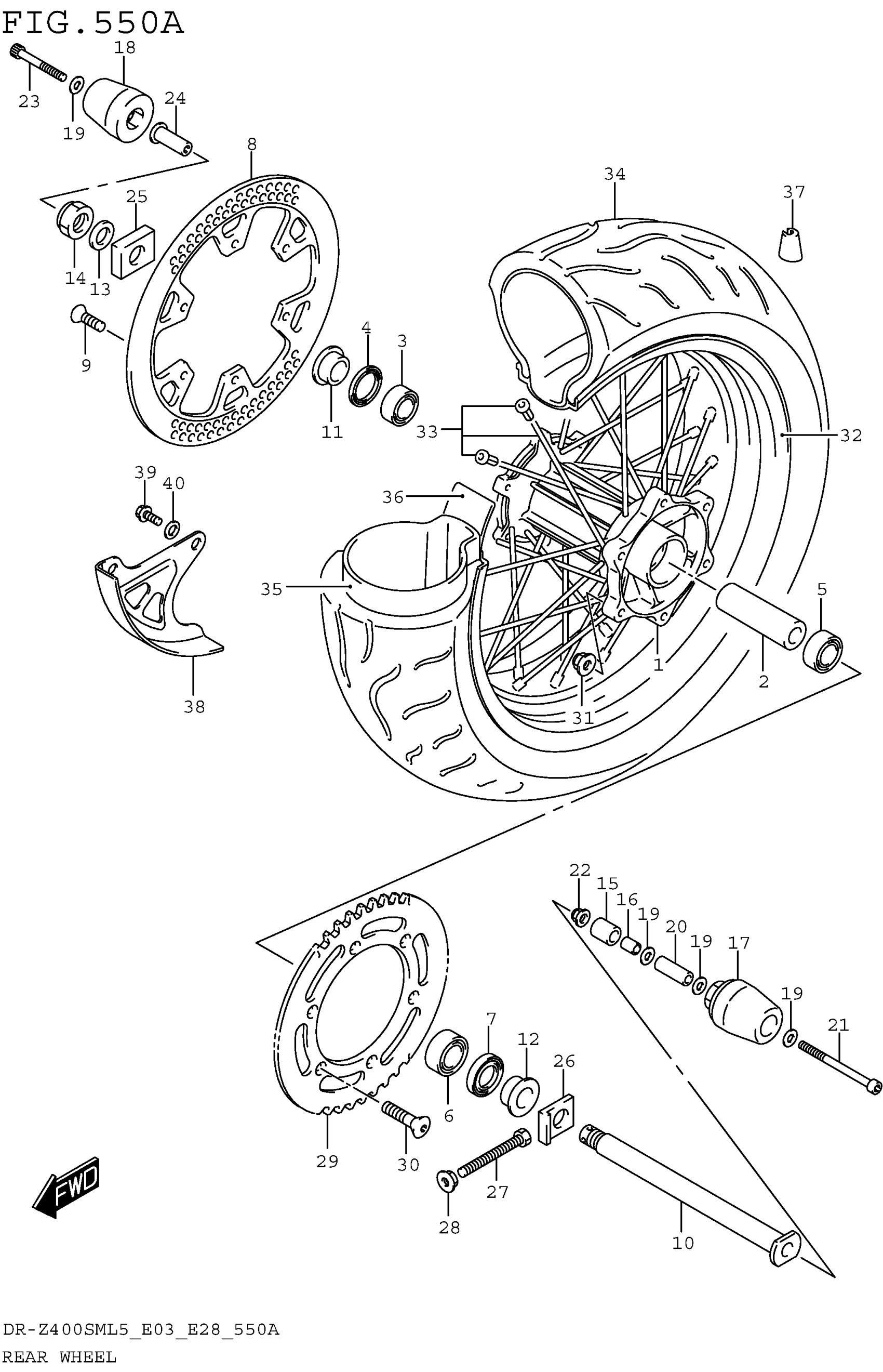

Suzuki DR-Z400SML5 (2015) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL

64111-29F10

$525.57

2

SPACER, BEARING

64731-29F00

$35.88

3

BEARING

08133-60047

$23.64

4

SEAL (29X42X6) This part replaces 64841-28E00.

64841-28E01

$7.22

5

BEARING

08133-60047

$23.64

6

BEARING This part replaces 08123-62047.

08123-6204B

$15.93

7

OIL SEAL (29X47X6)

09283-29006

$10.40

8

DISC, REAR BRAKE

69211-29F00

$354.17

9

SCREW (6X18)

09120-06014

$2.43

10

AXLE, REAR

64711-29F40

$140.13

11

SPACER, RH

64751-28E20

$24.99

12

SPACER, LH

64751-28E20

$24.99

13

WASHER (19X32X3.2)

09160-19022

$4.42

14

NUT

08319-2118A

$4.42

15

EXPANDER, AXLE SLIDER

54744-29F00

$6.62

16

SPACER (5.5X8X10.5)

09180-05048

$2.06

17

SLIDER, RR AXLE, L

64755-29F00

$35.28

18

SLIDER, AXLE

54755-29F00

$28.77

19

WASHER (5.5X12X0.8)

09160-05029

$1.56

20

SPACER (5.5X9.5X26)

09180-05060

$6.08

21

BOLT (5X65)

09106-05021

$7.03

22

NUT

08316-2005B

$3.13

23

BOLT

07130-0540A

$3.23

24

NUT

09159-05050

$10.20

25

ADJUSTER, CHAIN RH

61445-29F00

$45.65

26

ADJUSTER, CHAIN LH

61446-29F00

$44.80

27

BOLT (8X50)

09100-08287

$2.80

28

NUT

09159-08034

$1.62

29

SPROCKET, REAR (NT:44)

64511-14E00

$81.47

30

BOLT (8X30.5)

09120-08010

$2.39

31

NUT

08319-3108A

$2.31

32

RIM, RR WHEEL (17M/CXMT4.50 AL)

65311-29F70

$683.47

33

SPOKE ASSY, REAR WHEEL

65320-29F30

$148.68

34

TIRE REAR This part replaces 65110-29FA0.

65110-29FA1

$378.03

35

TUBE ASSY, WHEEL INNER

65200-29FA0

$63.90

36

PROTECTOR, INNER TUBE

65261-29FA0

$8.03

37

BALANCER, WHEEL (20G)

55412-41F00

$8.12

37

BALANCER WHEEL (30G)

55413-41F00

$9.95

38

COVER, REAR BRAKE

69231-37F12

$18.90

39

BOLT

01547-0610A

$1.47

40

WASHER

08322-01067

$1.86
