Description

Price

1

HANDLEBAR This part replaces 56111-29F40.

56111-29F41

$315.07

2

MIRROR ASSY RR VIEW R

56500-06G30

$156.05

3

MIRROR ASSY RR VIEW L

56600-06G30

$156.05

4

BALANCER SET, HANDLEBAR

56200-29842

$48.93

5

SCREW

02122-0645B

$2.76

6

SPACER (6.1X8X5.2)

09180-06246

$2.12

7

WASHER

08322-0106B

$2.26

8

EXPANDER

56272-29F00

$7.57

9

NUT

56273-29F01

$19.78

10

CABLE, CLUTCH

58200-29F10

$33.22

11

CABLE ASSY, THROTTLE

58301-29F11

$62.89

12

STOPPER, CLUTCH CABLE

58634-29F00

$12.57

13

BOLT

01547-0612A

$2.03

14

CLAMP (L:100)

09407-10404

$2.90

15

CLAMP (L:235)

09407-25401

$4.66

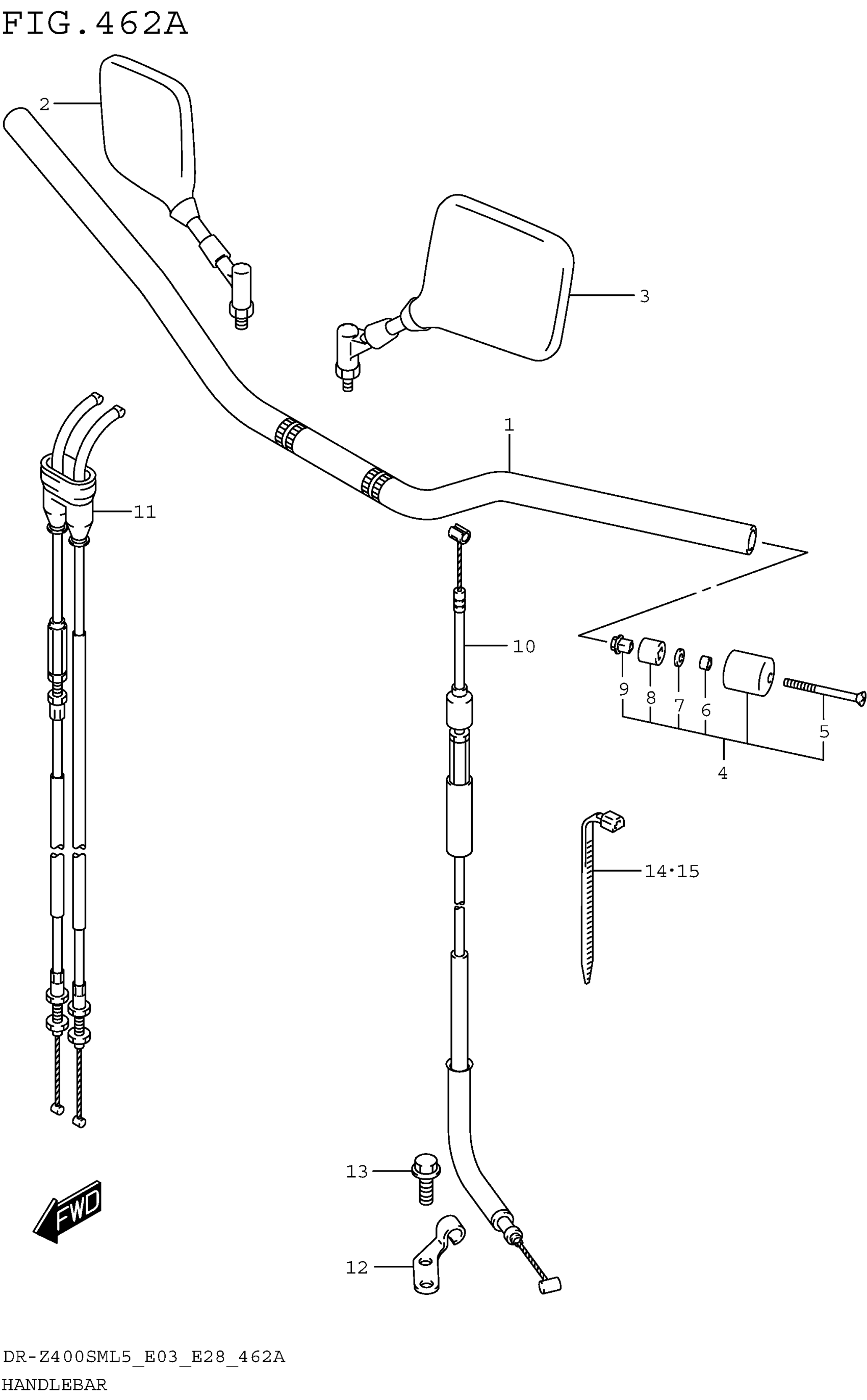

Suzuki DR-Z400SML5 (2015) HANDLEBAR Diagram
