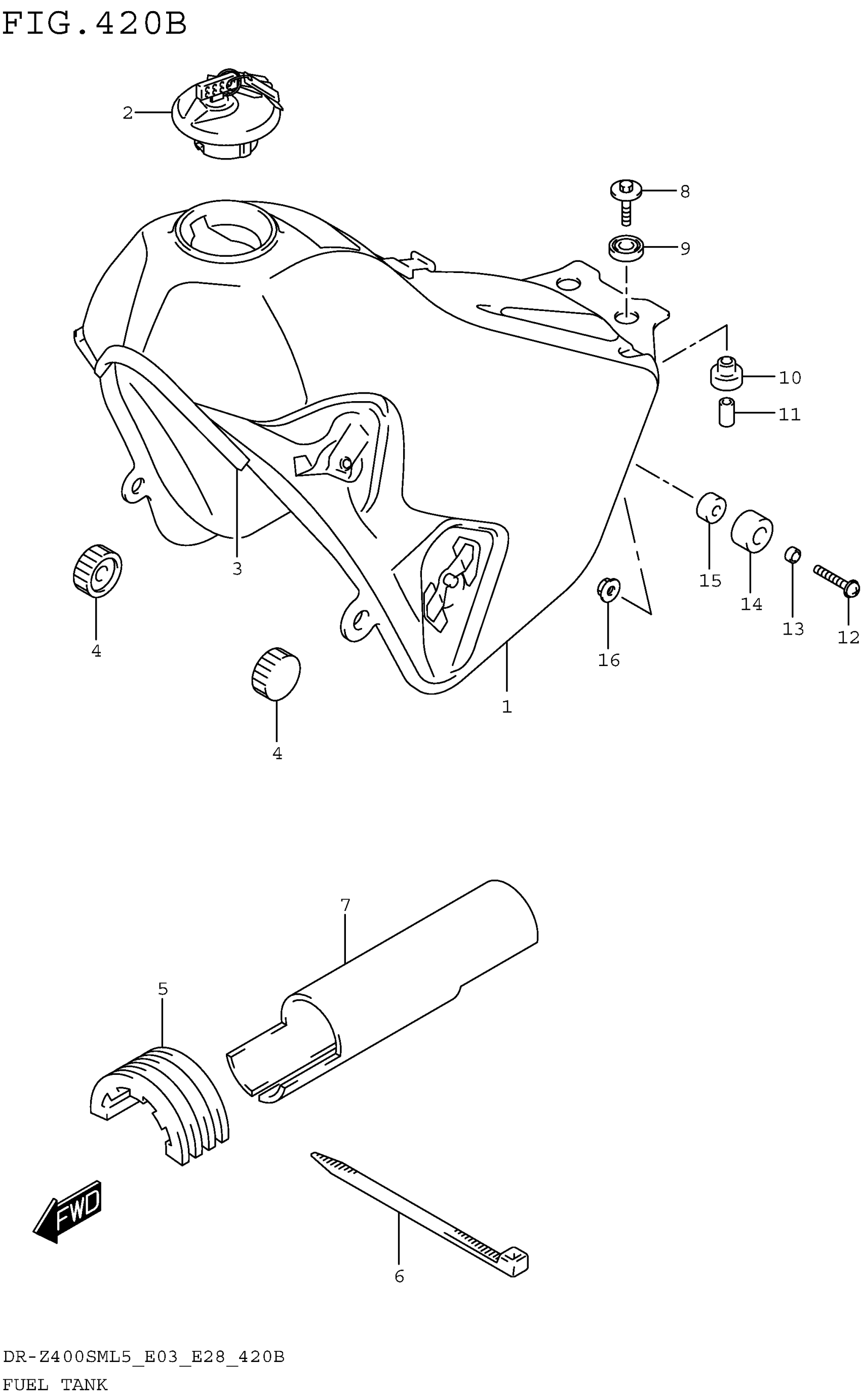

Suzuki DR-Z400SML5 (2015) FUEL TANK (DR-Z400SML5 E28) Diagram

TANK ASSY,FUEL This part replaces 49200-29FE0-019.

49200-29FE1-019

$935.05

CAP SET FUEL TANK FILLER This part replaces 44200-29820.

44200-29821

$140.27

MOLDING, FRONT

68241-04X50-300

$7.32

CUSHION

09329-10016

$3.10

CUSHION, UPPER

44541-29F00

$34.55

CLAMP (L:300)

09407-30402

$4.11

SHIELD, FUEL TANK

44194-29F00

Unavailable

BOLT (6X30)

09116-06214

$2.50

CUSHION | UPPER

09320-14022

$3.63

CUSHION (9X24X18) | LOWER This part replaces 09320-10020.

09320-10071

$2.60

SPACER (6.5X9X18)

09180-06271

$2.35

SCREW

02112-1630B

$3.08

SPACER (6.5X20X9)

09180-06215

$7.95

CUSHION, SIDE

45149-14D00

$6.63

SPACER (6.5X9X5)

09180-06306

$2.03

NUT

08319-3106B

$2.45
