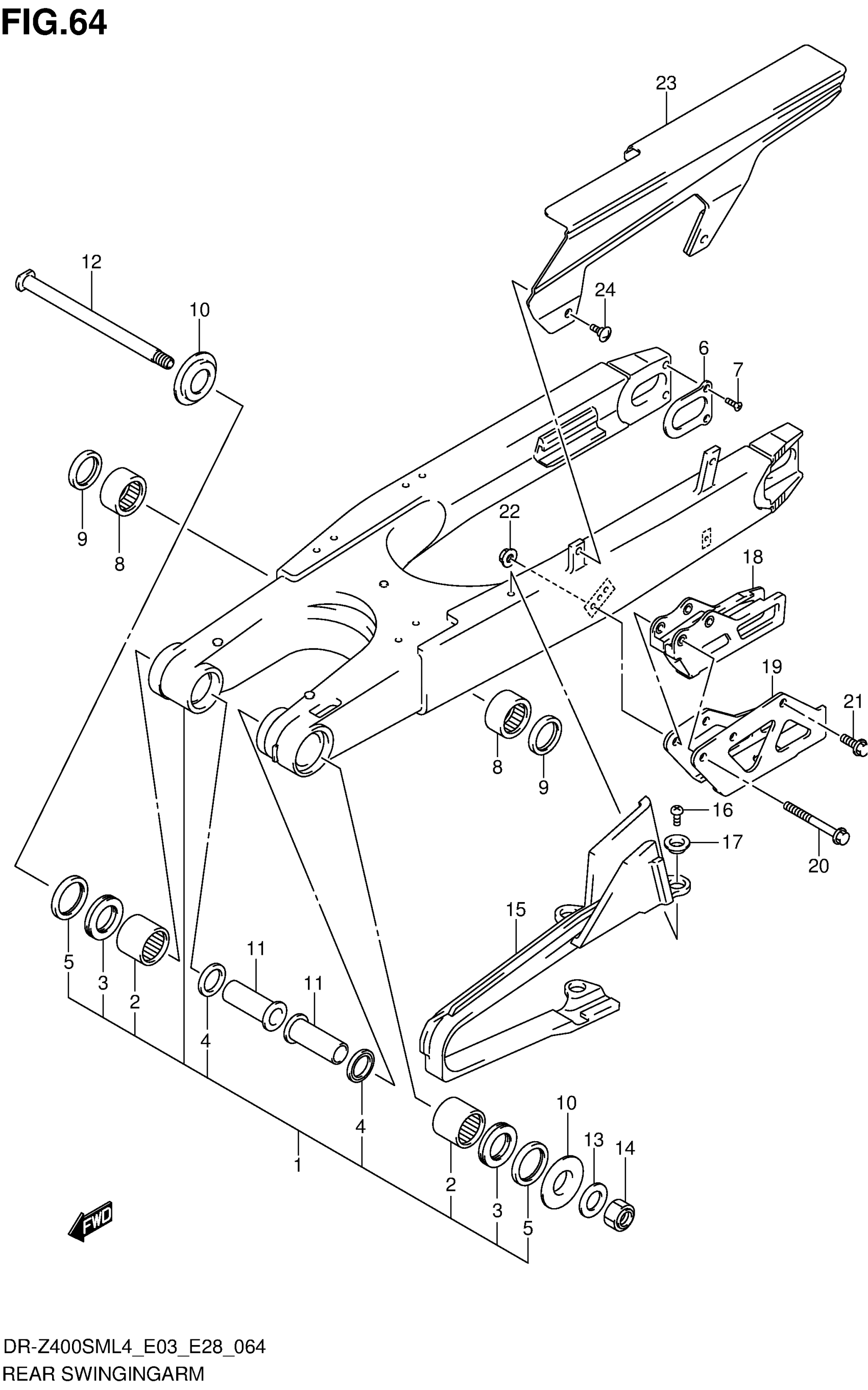

Suzuki DR-Z400SML4 (2014) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM ASSY RR This part replaces 61000-29F70.

61000-29F71

$2,155.77

2

BEARING (22X29X30)

09263-22017

$20.38

3

BEARING (22X35X2)

09263-22064

$30.12

4

.SEAL,OIL (21X29X4) | INNER This part replaces 09285-22001.

09285-22006

$3.46

5

SEAL, OUTER (29.2X37X4)

61262-36E00

$6.52

6

PLATE, AXLE

61128-29F70

$138.68

7

SCREW (5X10)

09120-05003

$1.76

8

BEARING (20X27X15)

09263-20086

$14.87

9

SEAL, ROD (19X27X4)

62624-14500

$5.65

10

SPACER, PIVOT OUTER

61250-44E00

$22.08

11

SPACER, PIVOT INNER

61252-36E00

$60.85

12

SHAFT, PIVOT

61211-29F00

$92.57

13

WASHER

08322-0116B

$2.95

14

NUT

09159-16007

$11.37

15

BUFFER, CHAIN TOUCH DEFENSE

61273-29F20

$60.54

16

SCREW

02112-0508B

$1.85

17

WASHER

09169-05022

$3.21

18

GUIDE, CHAIN

61341-35G00

$43.99

19

PLATE, CHAIN GUIDE OUTER

61342-37F00

$72.75

20

BOLT

01547-0650A

$2.51

21

BOLT

01547-0612A

$2.01

22

NUT

08319-3106A

$2.01

23

CASE, CHAIN

61310-34E00

$106.90

24

SCREW (6X16)

09139-06083

$2.24
