2014 Suzuki DR-Z400SML4 Handlebar Diagram

← All diagrams

Find the part on the Handlebar diagram for your 2014 Suzuki DR-Z400SML4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

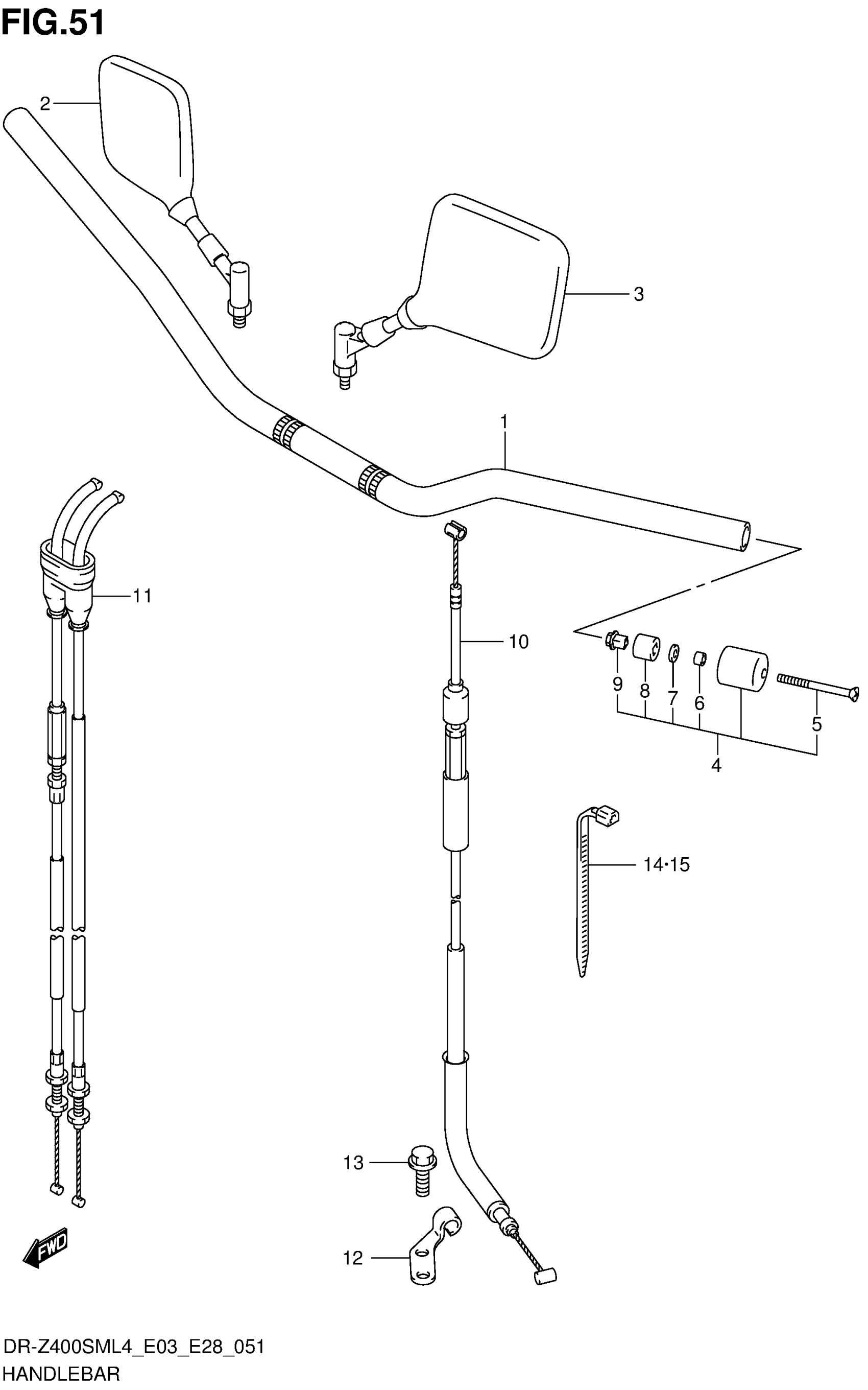

2014 Suzuki DR-Z400SML4 Handlebar Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$350.60

In stock

2

MIRROR ASSY RR VIEW R

56500-06G30

1

$167.98

In stock

3

MIRROR ASSY RR VIEW L

56600-06G30

1

$167.98

In stock

4

2

$48.77

In stock

5

SCREW

02122-0645B

2

$2.92

In stock

6

SPACER (6.1X8X5.2)

09180-06246

2
Out of stock

7

WASHER

08322-0106B

2
Out of stock

8

EXPANDER

56272-29F00

2

$8.55

In stock

9

NUT

56273-29F01

2

$22.32

In stock

10

CABLE, CLUTCH

58200-29F10

1

$33.12

In stock

11

CABLE ASSY, THROTTLE

58301-29F11

1

$62.70

In stock

12

STOPPER, CLUTCH CABLE

58634-29F00

1
Out of stock

13

BOLT

01547-0612A

2
Out of stock

14

CLAMP (L:100)

09407-10404

1
Out of stock

15

CLAMP (L:235)

09407-25401

1
Out of stock
